Dialogic® BorderNet™ 4000 Session Border Controller

Vision 1000 Video Gateway

BorderNet SBCs Supercharge Connections Between Networks, Services and Subscribers With Ease and Scale

The Dialogic® BorderNet™ 4000 Session Border Controller (SBC) is part of a family of session border controllers from Dialogic that helps service providers and enterprises energize their networks and services with a better way to interconnect and deliver services through ease-of-use and low total cost of ownership (TCO) with the following capabilities:

  • Superior media and signaling session handling performance
  • Secure Any-to-Any IP network and service connectivity

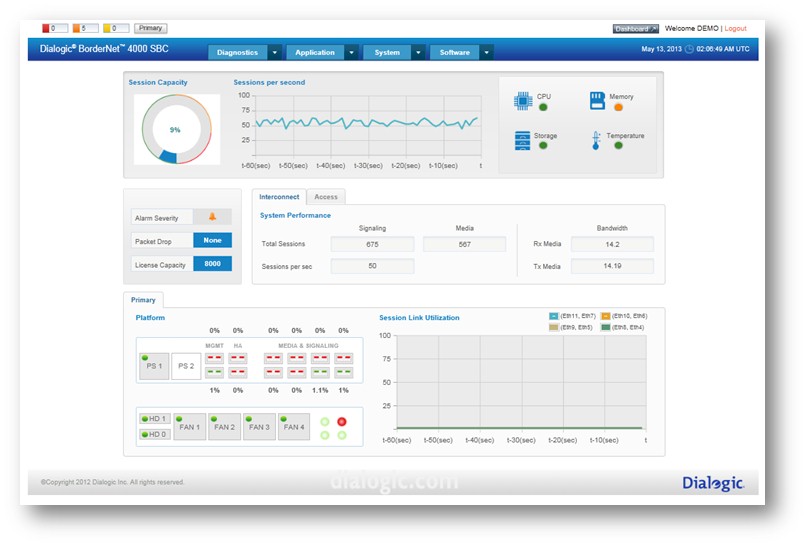

  • Web 2.0 dashboard and management console

Overview

The BorderNet 4000 SBC is a compact, high performance security and session management platform to help service providers address the challenges they face in connecting with other IP network operators and delivering services to customers. The BorderNet 4000 SBC provides comprehensive session security, connectivity, and service assurance features to enable the interconnection of diverse IP networks.

The powerful routing capabilities and SIP interworking tools built into the BorderNet 4000 SBC, along with enhanced management capabilities, can help service providers lower operational costs and improve service delivery time through streamlining the complex task of interworking different IP networks and services.

Applications

  • Interconnecting diverse SIP and H.323 networks
  • Delivering business and residential Unified Communications and hosted services
  • Managing multiple peering partners to optimize traffic costs and improve service quality
  • IPv4 to IPv6 migration initiatives
  • Detecting and reducing fraud
  • Interconnecting IP Multimedia Subsystem (IMS) and Voice over LTE (VoLTE) networks, IP Packet Exchange (IPX) networks, NGN, mobile and MVNO networks

 Documentation

If you are a current customer and already have access to training and documentation materials, login with your password. If you do not have access, contact your local Dialogic sales representative.

Features

Benefits

Feature rich scalability up to 32,000 simultaneous sessions at 600 sessions per second

More performance, more features in a smaller footprint lowers OPEX and CAPEX requirements

Peering and access features, including media transcoding

Increase ARPU through support for the delivery of business and residential services

Powerful and easy-to-use SIP header manipulation tools and profile based provisioning

Accelerate service deployment and automate and simplify complex tasks associated with provisioning and interconnection for lower TCO
Web 2.0 real-time dashboard and reporting

Improve operational efficiency through real-time visibility into service and system performance



Technical Specifications

Protocols

  • Signaling: SIP, H.323
  • Other: IPv4, IPv6, UDP, TCP, RTP, RTCP

Security Features
  • Access Control List
  • Signaled pinhole media firewall
  • Network topology hiding for both signaling and media
  • Encryption support: TLS, SRTP, HTTPS, SSH
  • NAT traversal
  • DoS and overload protection

Bandwidth Policing
  • Media profiling, rogue RTP detection, packet rate monitoring, and limiting
  • Dynamic bandwidth limiting
  • Bandwidth determination from SDP

Session Admission Control
  • License control
  • Peer and Interface session rate limits
  • Auto black listing

Routing
  • Signaling:
    • Static Routing: Interface-Interface and Peer/Interface
    • SIP Invite/3xx SIP redirect server routing
    • Integration with other routing engines through SOAP and bulk routing
    • SIP Message-based routing
    • Local DNS for URI to IP Address and Port mapping
    • Routing resolution through external DNS (SRV, A, NAPTR)
    • Load-balancing and priority-based routing
  • Media:
    • Optional media termination
    • Separation of signaling and media over VLANs
    • Media NAT traversal

QoS
  • QoS metrics: Packets lost, jitter inter-arrival, and latency
  • Policy enforcement: DSCP marking
  • Traffic statistics: Total packets and octets transferred
Media Interworking
  •  Audio: G.711, G.722, G.723.1, G.726, G.729a, G.729b, AMR-NB, AMR-WB*, GSM-FR, GSM-EFR, ILBC
  • Video: H.263, H.265, MPEG4
  • Fax: G.711 fax, T.38
  • Tones: G.711 tones, SIP INFO, RFC 2833

Note: Transcoding is supported through an integrated combination of the BorderNet 4000 SBC and the Dialogic® BorderNet™ 2020 SBC.

*Using the AMR-WB resource in connection with one or more Dialogic products mentioned herein does not grant the right to practice the AMR-WB standard. To seek a patent license agreement to practice the standard, contact – as of December 2012 - the VoiceAge Corporation at http://www.voiceage.com/licensing.php.

Scalability



Session Attempts Capacity
  • 600 sessions per second signaling and media
Maximum INVITE Sessions
  • 32,000

  • 1,024 VLANs
  • 2,048 IP addresses (signaling and media)
  • 500 SIP interfaces
  • VLAN Bridging: Up to 1,024 802.1q VLANs

Management
  • Integrated web-based management (https) including real-time dashboard and anlytics
  • SNMP traps sent for alarms
  • Historical and real-time statistics and reports
  • Session Detail Records
  • Role based User Management
  • Integrated Wireshark packet and session tracing
  • Northbound API interface based on web technology (SOAP/XML)
  • Bulk provisioning interface
  • Dialogic® ControlSwitch™ Sytem integration
    • Integrated configuration and provisioning
    • Integrated alarms and reporting
    • Unified Call Detail Record
    • End-to-end session tracing
    • EMS platform manages both BorderNet 4000 SBC and the ControlSwitch System
Interfaces


Signaling and Media
  • 4 redundant (1+1) Gigabit Ethernet (10/100/1000 Base-T copper or MM optical)
Management
  • 1 redundant Gigabit Ethernet (10/100/1000 Base-T)

High Availability
  • 1 redundant Gigabit Ethernet (1000 Base-T)

Power

  • Dual AC or DC 650W hot swappable power supplies
AC power supply ranges
  • 100 – 132 VAC (115 VAC nominal)
  • 180 – 264 VAC (230 VAC nominal)
  • 47 Hz - 63 Hz
AC current draw
  • Average 2.8A/Max less than 4A
DC power supply range
  • -36 to -60 VDC (-48 VDC nominal)
DC current draw
  • Average 6.7A/Max less than 10A

Environment


Operating temperature range:
  •  41°F to 122°F (5°C to 50°C)
Storage temperature range:
  •  -4°F to 149°F (-20°C to 65°C)
Relative Humidity:
  •  Up to 90% humidity, non-condensing
Heat dissipation (max):
  •  440W (1502 BTU/Hour)

Physical
Dimensions
  • Width 19 in (482.6 mm) x Depth 20.75 in (527.1 mm) x Height 1.74 in (44.2 mm)
Weight
  • 26.8 lbs (12.2 kg)

Environmental Standards


EMC/EMI
  • USA/Canada: FCC 47 CFR Part 15, Class A Digital Device ICES-003 Issue 4 - Feb 2004, Class A
  • European Union: EN 55022: 2006 + A1:2007, Class A Limit Immunity, EN 55024: 1998 +A1:2001, +A2:2003 and EN 300 386 V1.4.1 (2008)
Safety
  • USA/Canada: UL/CSA 60950-1 - 2nd Edition (2007)
  • European Union: EN 60950-1: 2006 + All: 2009
Approvals, Compliance, and Warranty
Hazardous substances


Country-specific approvals
  • Contact your local Dialogic sales representative
Warranty
  • Contact your local Dialogic sales representative

Manuals

Data Sheet

  • Dialogic® BorderNet™ 4000 Session Border Controller

    The Dialogic® BorderNet™ 4000 Session Border Controller (SBC) is a compact, high performance security and session management platform to help service providers address the challenges they face in securing and connecting disparate IP networks and delivering services to their customers. The BorderNet 4000 SBC provides comprehensive session security, connectivity, and service assurance features that supercharge connections between networks, services and subscribers with ease and scale.

  • Dialogic® BorderNet™ 4000 Session Border Controller + ControlSwitch™ System
    The Dialogic® BorderNet™ 4000 Session Border Controller (SBC) is a compact, high-performance security and session management platform for the Dialogic ControlSwitch™ System. The BorderNet 4000 SBC seamlessly integrates into the ControlSwitch System architecture to provide comprehensive session security and control, interworking, and media management functions at the network border to enable operators to offer high-quality peering services.

Brochure

  • Dialogic® BorderNet™ Session Border Controller Solutions

    Dialogic® BorderNet™ Session Border Controller (SBC) solutions help service providers transform, connect and secure their networks and services. Service providers can use these solutions to address the real world challenges faced as they transform their networks and services to all-IP and roll out innovative multimedia services to their customers. BorderNet SBCs can connect diverse mobile, wireline and cable MSO service provider networks and help minimize expensive infrastructure upgrades without having to compromise on quality of service. They also help secure networks from attacks that can lead to outages and help assure service performance and network integrity to maintain a high level of user experience.

  • Dialogic Service Provider Products and BroadSoft BroadWorks: Delivering Unified Communications with Integrated Mobility
    Advanced calling features with seamless, secure interconnectivity enable innovative, high-performance solutions for business and residential customers.

Case Study

  • Any-to-Any Networking Case Study - Teleena

    Teleena and Dialogic Come Together to Challenge the Status Quo

    Find out how Dialogic worked with Netherlands based MVNE, Teleena, to replace its legacy session border controller technology with the BorderNet™ 4000 SBC to help improve performance and scalability, and expand the capacity of its Cisco gateway infrastructure with I-Gate® 4000 PRO Media Gateways.

  • Transforming Legacy Switching and Session Border Controller Infrastructure With Dialogic - Telekom Slovenije

    Telekom Slovenije Selects Dialogic To Help Transform Its Switching and Session Control Infrastructure

    Dialogic's Any-to-Any Networking solutions helped Telekom Slovenije energize its IP transformation initiatives. Find out how Telekom Slovenije modernized its network by taking advantage of improved functionality and operational efficiency with the BorderNet™ 4000 SBC and the ControlSwitch™ System softswitch.

Technology Brief

  • Dialogic and Next Generation Public Safety

    Dialogic is a global leader in enabling the secure and seamless transition of mission-critical Public Safety networks from legacy to next-generation platforms.  For solutions from incident notification to mass reporting and coordinated response, Public Safety leaders are building on Dialogic.

White Paper

  • Security Applications and Technologies for IP Communications Networks
    This white paper discusses past network security issues, examines the shortcomings of existing security architectures that do not address future security requirements, and presents possible approaches that can solve them.
  • The Architecture and Benefits of IMS
    This white paper provides an overview of the IMS architecture and its benefits, describes the new family of combinational services that IMS can enable, and provides some technical highlights and examples of IMS platforms.
  • Session Border Controllers: Rationalizing the Border of the Network

    As service providers transform their networks more and more to IP, they are taking on a new role that involves the orchestration off applications and content from multiple participants in the service delivery supply chain. This translates into multiple networks - both internal and external to service providers - for providing end-to-end services to customers. The multiplying capabilities and expanding capacities of Session Border Controllers (SBCs) have become central to this evolution to IP-to-IP interworking and can help service providers as they endeavor to improve performance and cope successfully with spiraling traffic volumes and complexity.

    From once being looked upon as primarily a security device, SBCs have taken on an expanded role for fostering successful connectivity and providing high quality IP service. They can provide vital support for SIP normalization, QoS, NAT traversal, IPv4-IPv6 interworking and support for a host of value added services, and much more.

  • IP Packet Exchange - Interconnecting the IP User Experience

    As the industry moves more towards full-scale IP networks, the issue of interconnecting diverse networks and different service providers - each with its own IP network(s) - becomes more important to resolve in order to support the seamless delivery of next generation services. There will be concerns for security and end-to-end quality of service (QoS) to be addressed to make sure the different “moving parts” that make up these services are delivered to the customer in the expected manner.  It will be important to set up the mechanism by which all the participants in the service delivery supply chain are compensated for the value they provide to the overall end-to-end service.

    The GSMA IP eXchange (IPX) provides a visionary approach to the challenges fixed and mobile service providers have with interworking IP-based services and networks. It provides multiple, service-aware connectivity models that provide QoS as well as cost efficient, optimal routing of IP traffic. The same platform can be extended to bridge the gap between IP and legacy TDM networks.
