Dialogic Brooktrout TR1034 Fax Board

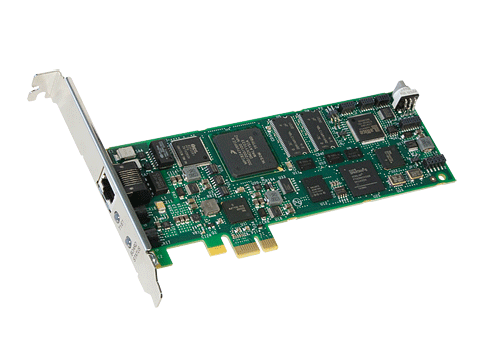

Dialogic TR1034 Low Profile PCIe

Overview

The Dialogic® Brooktrout® TR1034 Fax Boards are high-performance, intelligent fax boards that offer TDM (analog, BRI, T1/PRI, E1/PRI) fax capabilities. Inbound fax routing makes the Brooktrout TR1034 boards suitable for many computer-based fax applications, including document management, business process automation, and regulatory compliance with Sarbanes Oxley, HIPAA, and Basel II.

Available in PCI Express (PCIe) formats, Brooktrout TR1034 boards deliver unparalleled call completion at fast connection rates across a wide variety of fax machines and line conditions.

Dialogic delivers time-tested industry-leading fax technology, offering a broad range of fax products. The Dialogic® Brooktrout® T.30 Stack has been deployed for more than 25 years.

Key Features

 Features  Benefits

Powerful DSPs dedicated to media processing

Provides real-time processing of complex operations (such as V.34 fax receiver and transmitter, voice compression, and echo cancellation) without reducing overall system performance, which lowers implementation costs

Analog, BRI, T1/PRI and E1/PRI interfaces

Supports a broad range of configurations

Based on V.34 fax standard for mission-critical fax deployments

Can process faxes at twice the speed of V.17 fax boards

Inbound fax routing

Supports fax servers, fax-to-email, unified messaging, fax document management, workflow and document delivery, and systems that comply with government regulations

Field-proven T.30 implementation

Helps to deliver faxes consistently and with high reliability

Resource Links

Product Datasheet
Global Product Approvals
Fax Partner Directory Service Plan promo

Related Products

Brooktrout SR140 Fax SoftwareBrooktrout TruFax

Documents

Find related manuals, data sheets, whitepapers, case studies and more. Click the icon to expand.

Manuals

Dialogic® Brooktrout® Fax SDK Release 6.17.x

Refer to the documents listed below for specific details on Dialogic® Brooktrout® Fax SDK Release 6.17.x.
Dialogic® Brooktrout® Fax SDK Release 6.16.x

Refer to the documents listed below for specific details on Dialogic® Brooktrout® Fax SDK Release 6.16.x.
Dialogic® Brooktrout® Fax SDK Release 6.15.x

Refer to the documents listed below for specific details on Dialogic® Brooktrout® Fax SDK Release 6.15.x.

Application Notes

Adding Support for Dialogic Brooktrout Fax Quality Metrics to Fax Applications
This application note focuses on the possible uses of FQMs with fax over IP (FoIP) solutions, and how to report those metrics in a fax application. Details on the FQMs supported by the Brooktrout Bfv API are also provided.
Guide to Dialogic® Brooktrout® Fax Software Releases, Operating Systems, and Products

Shows the correspondence between Dialogic Brooktrout SDKs, the operating systems supported, and Dialogic Brooktrout Fax Products.
Adding Reliable Fax Capability to VoIP Networks

This white paper compares the two principal options for implementing fax in a VoIP network today: Fax-Relay (T.38) and Fax Pass-Through (G.711) and concludes that Fax Relay is superior.

Brochures

Dialogic World Wide Services Brochure
Overview of the different services provided.

Technology Briefs

Expansion Capability Allows Increased Feature Set for Dialogic® Brooktrout® TR1034 Fax Board
The Dialogic® Technology Expansion Capability (TEC) allows customers to increase the feature set on new or previously purchased Dialogic® Brooktrout® TR1034 Fax Boards simply by downloading and installing a software license key.
Dialogic and Internet Aware Fax
Dialogic® Brooktrout® Fax Software was used to demonstrate the amazing speed at which a fax can be sent with Internet Aware Fax (IAF) technology when used in combination with a SIP trunk that supports peering. – a fax that typically would have taken up to 10 minutes to transmit using T.38 V.17, instead took only 6 seconds.

Whitepapers

Considerations for Using T.38 versus G.711 for Fax over IP
This white paper compares the performance of the two principal options for sending faxes over an IP network: T.38 fax relay and G.711 fax pass-through.

Ordering Information

Use the Purchase page linked below to find partners to purchase Dialogic products. The order codes below are for your reference when making a purchase.

Where to Buy
ProductOrder CodeDescription

T1/E1 Low Profile

TR1034+ELP4-TE

901-016-01

4 Channel Fractional T1/E1; V.34 PCI Express

TR1034+ELP8-TE

901-016-02

8 Channel Fractional T1/E1; V.34 PCI Express

TR1034+ELP16-TE

901-016-03

16 Channel Fractional T1/E1; V.34 PCI Express

TR1034+ELP24-TE

901-016-04

24 Channel Fractional T1/E1; V.34 PCI Express

TR1034+ELP30-TE

901-016-05

30 Channel Fractional T1/E1; V.34 PCI Express

Analog Low Profile

TR1034+ELP2-2L

901-017-01

2 Channel Loop Start; PCI Express Fax Board; low profile

TR1034+ELP4-4L

901-017-02

4 Channel Loop Start; PCI Express Fax Board; low profile

BRI Half Length

TR1034+E2-1B

901-012-03

2 Channel Single Euro BRI; V.34 PCI Express

TR1034+E4-2B

901-012-05

4 Channel Dual Euro BRI; V.34 PCI Express
