Call Flows

The call flows for the various scenarios are as follows:

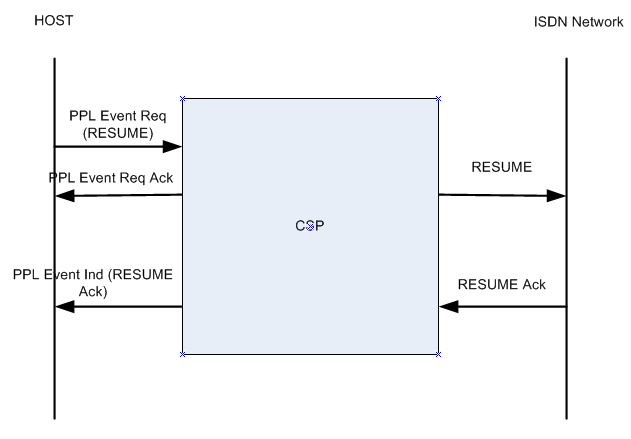

Figure 6 RESUME Request Successful

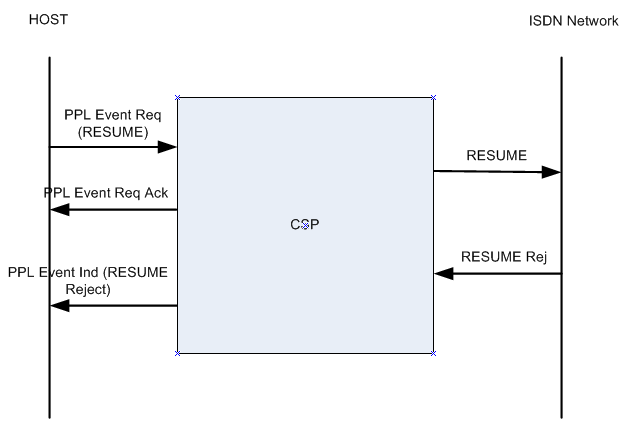

Figure 7 RESUME Request Rejected

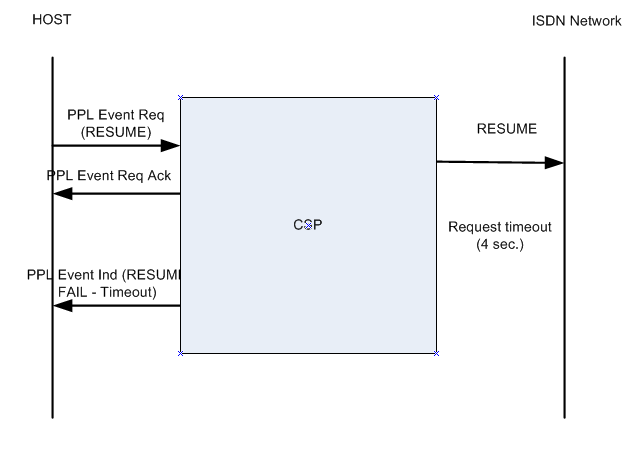

Figure 8 RESUME Request Times Out

New API Values

The following new PPL Events and Timers for the PPL Event Request message (0x44) and PPL Event Indication message (0x43) support this feature.

There are also two new PPL Timers.

PPL Component is 0x0005 (ISDN L3P Call Control)

PPL Event Requests

0x0014 - SUSPEND

0x0017 - RESUME

PPL Event Indications

0x0022 - SUSPEND Ack

0x0023 - SUSPEND REJECT

0x0024 - SUSPEND Timeout

0x0025 - RESUME Ack

0x0026 - RESUME Reject

0x0027 - RESUME Timeout

PPL Component L3 Call reference (0x0008)

PPL Timers

Timer ID Description Default Value (seconds)
0x0018 Q.931 T318 4
0x0019 Q.931 T319 4
