Overview
The Circuit Query feature allows the host to query the status of a single circuit or a range of circuits using the PPL Event Request message. A Circuit Query Message (CQM) is sent to the remote CSP, which returns a Circuit Query Response (CQR) message containing the status of all the circuits. The local and remote circuit status for each circuit is sent to the host in a PPL Event Indication message.
Recovery Action for ANSI Only
For ANSI only, if the circuit is found in the invalid state by the CQM, a recovery action is taken by CQS. The host can configure the recovery action taken by the CSP using the PPL Configuration Bytes of the CQS component. Recovery actions taken by the CSP are as defined by the ANSI-ISUP T1.113 specification.
When a CQM request is received from the host, the CSP sends a CQM message to the network. When a CQR is received from the network, the CSP sends a PPL Event Indication message to the host with an SS7 Data Parameters ICB (0x22) containing the status of the local and remote circuits. If the CQR indicates a maintenance state, the CSP takes appropriate action based on Table 2 in ANSI T1.113.4.
If a CQR is not received before the expiration of T28 (default =10 seconds), a PPL Event Indication of 0x01 is sent to the host indicating the error.

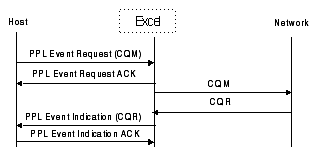

This call flow shows a CQM request from the host and a CQR response from the network.
The local and remote status are reported to the host in an SS7 Data Parameters ICB (0x22) in a PPL Event Indication message, where:
Data[0] |
Local Status |
Data[1] |
Remote Status |
One of the following values is reported for both Data[0] and Data[1].
0x00 |
Transient |
0x01 |
Spare (no interpretation) |
0x02 |
Spare (no interpretation) |
0x03 |
Unequipped |
0x04 |
Incoming Circuit Busy, Active |
0x05 |
Incoming Circuit Busy, Locally Blocked |
0x06 |
Incoming Circuit Busy, Remotely Blocked |
0x07 |
Incoming Circuit Busy, Locally and Remotely Blocked |
0x08 |
Outgoing Circuit Busy, Active |
0x09 |
Outgoing Circuit Busy, Locally Blocked |
0x0A |
Outgoing Circuit Busy, Remotely Blocked |
0x0B |
Outgoing Circuit Busy, Locally and Remotely Blocked |
0x0C |
Idle |
0x0D |
Idle, Locally Blocked |
0x0E |
Idle, Remotely Blocked |
0x0F |
Idle, Locally and Remotely Blocked |
0x10 to 0xFF |
Spare |
