Dialogic® T-ONE 100 Ohm I/O Card - EXS-TIO-1000/EXS-TIO-1000R
The Dialogic® T-ONE 100 Ohm I/O card connects the CSP to T1 lines and other telecommunications equipment.
Use only 100 Ohm impedance shielded twisted-pair cable in compliance with ITU-T G703. Do not use flat wire. Wire the interface connection in accordance with ANSI 50-position RJ48M pinout specifications. The table below shows the T-ONE 120 Ohm I/O pinout.
The T-ONE 100 Ohm I/O card resides in the rear card slots of an
CSP 2090, CSP 2110 or CSP 2040 chassis.
The part number, serial number, model number, and revision are located on the back of the board.
The T-ONE 100 Ohm I/O card is designed to the following electrical, physical and environmental specifications.
|
Electrical |
Specification |
|---|---|
|
Supply Voltage, Vcc |
5.00V |
|
Supply Current, Vcc @ 5.0V |
0.11A (typical) |
|
Physical |
Specification |
|---|---|
|
Height |
318.5 mm (12.54 in.) |
|
Depth |
105.2 mm (4.14 in) |
|
Width |
19.7 mm (0.775 in.) |
|
Environmental |
Specification |
|---|---|
|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
|
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
|
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~C/min. |
|
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ 10~C/min. |
|
Humidity - Operating |
5% to 85% |
|
Altitude |
Up to 4000 m (13,123 ft.) |
The products related to the T-ONE 100 Ohm I/O card are listed below.
|
Product |
Model No. |
RoHS Model No. |
|---|---|---|
|
T-ONE Card |
EXS-T1C-1160 |
EXS-T1C-1160R |
|
T-ONE 100 Ohm Red I/O Card |
EXS-TIO-1200 |
EXS-TIO-1200R |
|
T-ONE 100 Ohm Standby I/O Card |
EXS-TIO-1300 |
EXS-TIO-1300R |

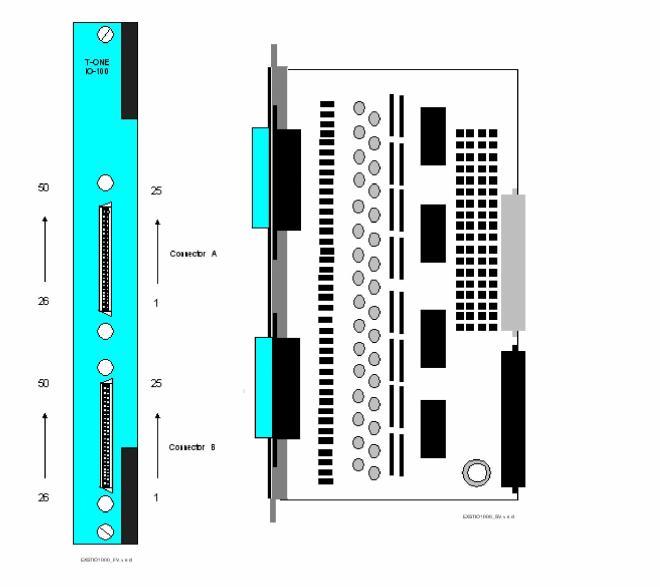

The front and side views show the connectors.
T-ONE 100 Ohm I/O Pinout (16-Span)
|
16-Span I/O Pinout |
||||
|---|---|---|---|---|
|
Span Number |
Transmit |
Receive |
||
|
Tip |
Ring |
Tip |
Ring |
|
|
Connector A |
||||
|
0 |
27 |
2 |
26 |
1 |
|
1 |
30 |
5 |
29 |
4 |
|
2 |
33 |
8 |
32 |
7 |
|
3 |
36 |
11 |
35 |
10 |
|
4 |
39 |
14 |
38 |
13 |
|
5 |
42 |
17 |
41 |
16 |
|
6 |
45 |
20 |
44 |
19 |
|
7 |
48 |
23 |
47 |
22 |
|
Connector B |
||||
|
8 |
27 |
27 |
26 |
1 |
|
9 |
30 |
30 |
29 |
4 |
|
10 |
33 |
8 |
32 |
7 |
|
11 |
36 |
11 |
35 |
10 |
|
12 |
39 |
14 |
38 |
13 |
|
13 |
42 |
17 |
41 |
16 |
|
14 |
45 |
20 |
44 |
19 |
|
15 |
48 |
23 |
47 |
22 |
