Dialogic® T-ONE 100 Ohm Red I/O Card - EXS-TIO-1200/EXS-TIO-1200R
The Dialogic® T-ONE 100 Ohm Redundant I/O card is used in conjunction with a Standby I/O card to deliver N + 1 redundancy to all system line cards. If an active line card fails, the affected data stream is rerouted to a Standby line card. The software enables you to automate the switchover process or control it from a remote location.
The card LED indicates whether the card is in Active or Switchover Mode. A red light indicates that the Standby card is active (Switchover Mode). A green light indicates that the Redundant card is active (Active Mode).
Use only 100 Ohm impedance shielded twisted-pair cable in compliance with ITU-T G703. Do not use flat wire. Wire the interface connection in accordance with ANSI 50-position RJ48M pinout specifications. The table below shows the T-ONE 100 Ohm Redundant I/O pinout.
The T-ONE 100 Ohm Redundant I/O card resides in the rear card slots of a CSP 2090, CSP 2110 or CSP 2040 chassis.
The part number, serial number, model number, and revision are located on the back of the board.
The T-ONE 100 Ohm Redundant I/O card is designed to the following electrical, physical and environmental specifications.
Electrical |
Specification |
---|---|
Supply Voltage, Vcc |
5.00V |
Supply Current, Vcc @ 5.0V |
0.95A (typical) |
Physical |
Specification |
---|---|
Height |
318.5 mm (12.54 in.) |
Depth |
105.2 mm (4.14 in) |
Width |
19.7 mm (0.775 in.) |
Environmental |
Specification |
---|---|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~C/min. |
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ 10~C/min. |
Humidity - Operating |
5% to 85% |
Altitude |
Up to 4000 m (13,123 ft.) |
The products related to the T-ONE 100 Ohm Redundant I/O card are listed below.
Product |
Model No. |
RoHS Model No. |
---|---|---|
T-ONE Card |
EXS-T1C-1160 |
EXS-T1C-1160R |
T-ONE 100 Ohm I/O Card |
EXS-TIO-1000 |
EXS-TIO-1000R |
T-ONE 100 Ohm Standby I/O |
EXS-TIO-1300 |
EXS-TIO-1300R |

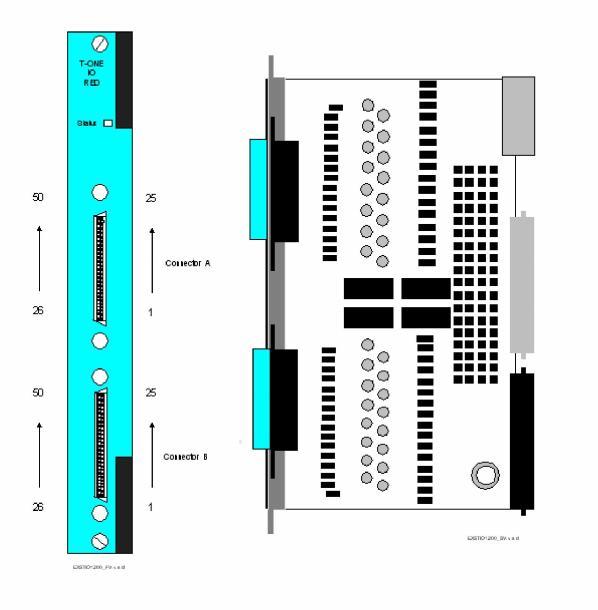

The front and side views show the connectors.
The table below describes the LED as shown in the front view.
LED |
Color/Status |
Description |
---|---|---|
Status |
Green/Active Mode |
Redundant card is active |
Red/Switchover Mode |
Standby card is active |
T-ONE 100 Ohm Redundant I/O Pinout (16 Span)
16 Span I/O Pinout |
||||
---|---|---|---|---|
Span No. |
Transmit |
Receive |
||
Tip |
Ring |
Tip |
Ring |
|
Connector A |
||||
0 |
27 |
2 |
26 |
1 |
1 |
30 |
5 |
29 |
4 |
2 |
33 |
8 |
32 |
7 |
3 |
36 |
11 |
35 |
10 |
4 |
39 |
14 |
38 |
13 |
5 |
42 |
17 |
41 |
16 |
6 |
45 |
20 |
44 |
19 |
7 |
48 |
23 |
47 |
22 |
Connector B |
||||
8 |
27 |
2 |
26 |
1 |
9 |
30 |
5 |
29 |
4 |
10 |
33 |
8 |
32 |
7 |
11 |
36 |
11 |
35 |
10 |
12 |
39 |
14 |
38 |
13 |
13 |
42 |
17 |
41 |
16 |
14 |
45 |
20 |
44 |
19 |
15 |
48 |
23 |
47 |
22 |

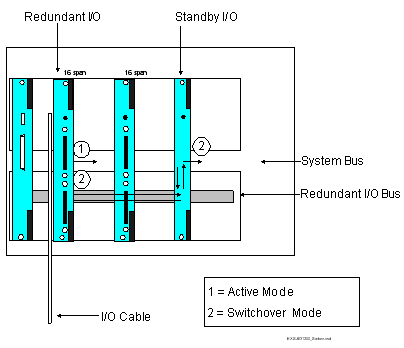

Flow of Voice and Data in Active and Switchover Modes
The table below describes the Active and Switchover Modes.
Symbol |
Mode |
Description |
---|---|---|
1 |
Active |
Voice and data flow from the T1 span into the T-ONE 120 Ohm Redundant |
2 |
Switchover |
Voice and data on the T-ONE 120 Ohm Redundant I/O card are switched to the Redundant I/O bus and routed to the |
