Chassis Views

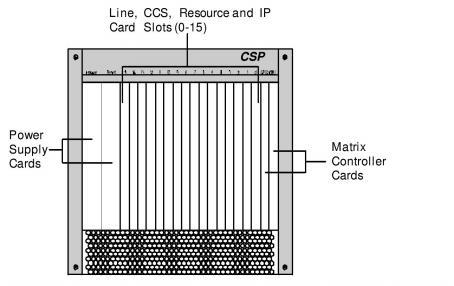

CSP 2090 Front of Chassis

The next figure shows the front of the CSP 2090 chassis.

Figure 2-1 Front of Chassis

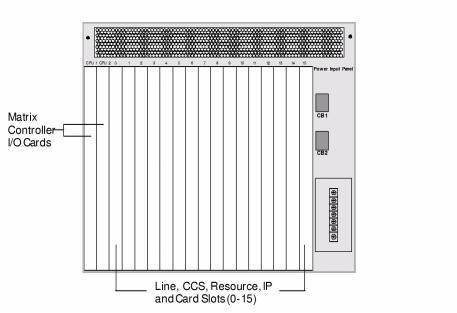

CSP 2090 Rear of Chassis

The next figure shows the rear of the CSP 2090 chassis.

Figure 2-2 Rear of Chassis

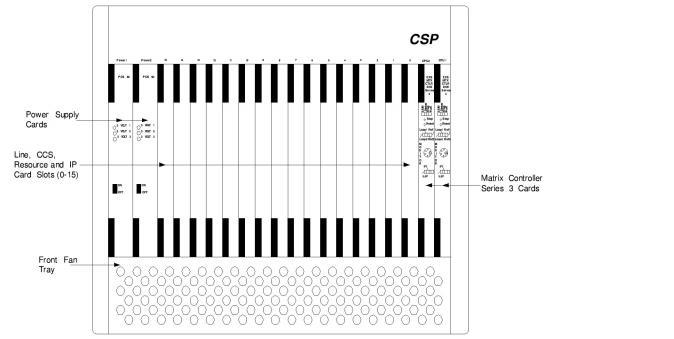

CSP 2110 Front of Chassis

The next figure shows the front of the CSP 2110 chassis.

Figure 2-3 Front of Chassis

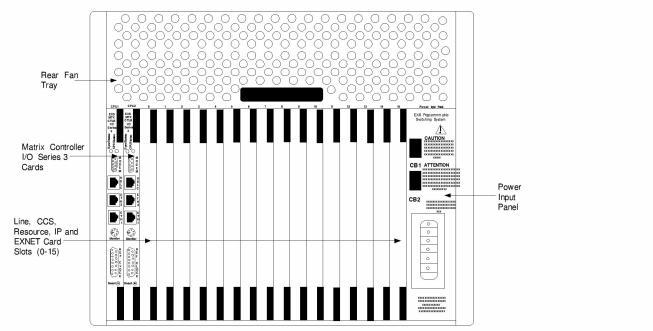

CSP 2110 Rear of Chassis

The next figure shows the rear of the CSP 2110 chassis.

Figure 2-4 Rear of Chassis
