Changing Environment Variables at Run-time
Procedure
Do the following to change environment variables at run-time.
Important! Each time the LLC is restarted all environment variables will be reset to the values in the defaults file or the operating system settings.
1 Open the node view in monitoring mode.

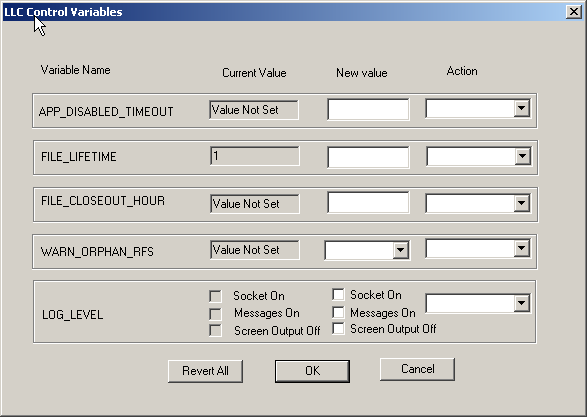

2 Go to the menu: Provisioning ®System® LLC Control Variables. The next dialog box opens.
3 Where you enter a value under New Value for APP_DISABLED_TIMEOUT, FILE_LIFETIME, FILE_CLOSEOUT_HOUR, WARN_ORPHAN_RFS, you must select an Action. For LOG_LEVEL, if you select a value under New Value, you must select an Action. See the next table.
|
Action |
Description |
|---|---|
|
Clear Variable |
Returns to the default value, as if never set. |
|
Set to New |
Changes to the new value entered in the text box. |
|
Revert Variable |
Reverts to the value at LLC startup. |
|
No Action |
No changes are implemented. |
4 Click OK to save your changes.
5 If you want to change the environment variables to their values at the startup of LLC, select Revert All and click OK.
