SIP Protocol Overview

Session-Initiation Protocol (hereafter referred to as SIP) is signaling protocol for Internet conferencing, telephony, presence, event notification, and instant messaging.

Dialogic not only SIP-enables its platform products but stays current as the protocol evolves.

SIP is typically required in a softswitch-controlled, converged network. In these converged networks, media gateways handle circuit/packet conversions (usually between IP and voice) and require media services such as tones, prompts, conferencing, and announcements.

Dialogic introduced SIP software to meet the demand for IP in converged services networks. This feature allows the CSP to act as an IP service node, providing application services and media resources to a softswitch or proxy server. The softswitch or SIP proxy server uses SIP to hand off a call requiring call treatment via partner-developed applications resident on a CSP. This provides services in Real-Time Protocol (RTP) streams to media gateways.

SIP allows the CSP to act as an IP Service Node, providing application services and media resources to a softswitch or SIP proxy server. A softswitch or SIP proxy server uses SIP to hand off a call requiring call treatment via partner-developed applications resident on a host.

SIP is part of the Internet Engineering Task Force (IETF) standards process (RFC 2543 BIS) and is modeled upon other Internet protocols, such as SMTP (Simple Mail Transfer Protocol) and HTTP (Hypertext Transfer Protocol.) It is used to establish, change, and tear down calls between one or more users in an IP-based network.

The client element initiates the calls and the server element answers the calls. This allows peer-to-peer calls to be made using a client-server protocol. A SIP terminal is a device, such as a SIP phone, that supports two-way, real time communications in a SIP network.

The SIP Network Server handles the signaling associated with multiple calls. There are three types of SIP Network Server elements:

The Proxy Server receives a SIP request, then passes the request along to one or more clients or next-hop servers. The Redirect Server accepts the SIP request, determines the new address, and returns the new IP address to the SIP client. The Location Server under SIP provides the current IP address of clients to the Redirect Server and to the Proxy Server on the network.

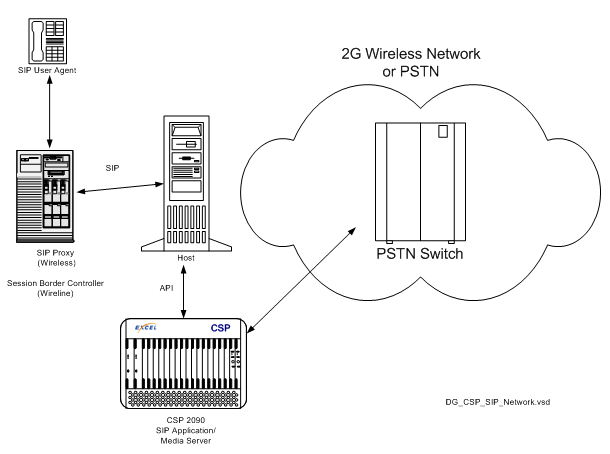

The following diagram shows a SIP based network architecture with the high-level functionality provided by the CSP. The network can be 3G Wireless or Wireline.

This function allows the group involved in a call (this may be a multi-party call) to agree on the supported features, recognizing that not all the parties can support the same level of features. For example, video may or may not be supported. SIP supports all Multipurpose Internet Mail Extensions (MIME). There is plenty of scope for negotiation.

During a call, a participant can bring other users into the call or cancel connections to current users. In addition, users could be transferred or placed on hold.

A participant is able to change the call characteristics during the course of the call. For example, a call may have been set up as voice-only, but in the course of the call, the participant may need to enable a audio or fax function. A third party joining a call may need different features enabled in order to participate in the call.

Session-Initiation Protocol. A signaling protocol used for establishing sessions in an IP network. A session could be a simple, two-way telephone call, or it could be a collaborative multi-media conference session.

In PPL, a condition that, when met, drives a state machine (PPL Component) from one state to another, by invoking an associated Primitive. In PPL files, an Event is marked by an arrow and text.

Internet Protocol. Part of the TCP/IP family of protocols used to route messages and tracks the addresses of nodes.

Real-Time Transport Protocol. Supports transport of real-time data like interactive voice and video over packet-switched networks.

Protocol layer of the CSP.

ISDN. Network architecture based on digital transmission, switching, and common channel signaling. Basic configurations include 2B+D called a Basic Rate Interface, and 23+D called a Primary Rate Interface. Outside North America, PRI is 30B+D.

See Integrated Services Digital Network.

See Signaling System Number Seven.

ISUP. The call control part of the SS7 signaling protocol.

See Integrated Services Digital Network User Part.

Simple Mail Transfer Protocol. The TCP/IP protocol governing electronic mail transmissions and receptions.

Hypertext Transfer Protocol. The protocol used by web servers and client browsers to communication.

In SIP, an application program that sends SIP requests (See also Session Initiation Protocol). Clients may or may not interact directly with a person. Users agents and proxies contain clients (and servers).

For the purposes of a Excel platform, a proxy server is a SIP device which receives invitations and other requests, and forwards them to other SIP devices. It then receives the responses to the requests it forwarded and forwards them back to the sender of the initial request.

A SIP device that responds to invitations and other requests by informing the request originator of an alternate address to which the request should be sent.
