SwitchKit Name
RingStatusQuery
Type
EXS API and SwitchKit API message
Description
Use this message to query either the ring status or the ring configuration.
To Query Ring Configuration
Use the Ring Configuration Query address type in the AIB to query the ring configuration. See "Response Data" for the format of the data returned by the Excel platform.
Sent by
SwitchKit Code
C Structure
typedef struct {
UBYTE AddrInfo[253];
} XL_RingStatusQuery;
C Structure Response
typedef struct {
unsigned short Status;
UBYTE Slot;
UBYTE Data[221];
} XL_RingStatusQueryAck;
C++ Class
class XLC_RingStatusQuery : public XLC_OutboundMessage {
public:
const UBYTE *getAddrInfo() const;
UBYTE *getAddrInfo();
void setAddrInfo(UBYTE *x);
UBYTE getSlot() const;
void setSlot(UBYTE x);
};
C++ Class Response
class XLC_RingStatusQueryAck : public XLC_AcknowledgeMessage {
public:
unsigned short getStatus() const;
void setStatus(unsigned short x);
UBYTE getSlot() const;
void setSlot(UBYTE x);
const UBYTE *getData() const;
UBYTE *getData();
void setData(UBYTE *x);
};
Overview of message
The following table provides an overview of this message. The table following it, provides the detail for each byte.
|
MESSAGE (White) |
RESPONSE (Gray) |
||
|
Byte |
Field Description |
Byte |
Field Description |
|
0 |
Frame (0xFE) |
0 |
Frame (0xFE) |
|
1, 2 |
Length (0xNNNN) |
1, 2 |
Length (0xNNNN) |
|
3, 4 |
Message Type (0x0071) |
3, 4 |
Message Type (0x0071) |
|
5 |
Reserved (0x00) |
5 |
Reserved (0x00) |
|
6 |
Sequence Number |
6 |
Same Sequence Number |
|
7 |
Logical Node ID |
7 |
Logical Node ID |
|
8 : |
AIB Address Method |
8, 9 |
|
|
Number of AEs to follow |
10 : |
AIB (same as message) |
|
|
AEs |
: |
: |
|
|
: |
Checksum |
: |
Data |
|
|
: |
: |
|
|
: |
Checksum |
||
EXS API Hex Format - Detailed
|
MESSAGE (White) |
RESPONSE (Gray) |
||
|
Byte |
Field Description |
Byte |
Field Description |
|
0 |
Frame (0xFE) |
0 |
Frame (0xFE) |
|
1, 2 |
Length (0xNNNN) |
1, 2 |
Length (0xNNNN) |
|
3, 4 |
Message Type (0x0071) |
3, 4 |
Message Type (0x0071) |
|
5 |
Reserved (0x00) |
5 |
Reserved (0x00) |
|
6 |
Sequence Number |
6 |
Same Sequence Number |
|
7 |
Logical Node ID |
7 |
Logical Node ID |
|
8 : |
AIB Address Method 0x00 - Individual AEs |
8, 9 |
Status MSB, LSB |
|
Number of AEs to follow |
10 : |
AIB (same as message) |
|
|
AE |
|||
|
: |
Checksum |
||
|
: |
Data (also see Response Data section below this table) For a Ring Configuration Query, see the information below this table For a Ring Status Query, see the information directly below:
Data[0] Logical Ring ID Data[1] Ring Status This field indicates the status of the ring to which this node belongs. 0x00 In Service: Ring capable of passing data 0x01 Ring Initializing: Validating integrity of the ring 0x02 Connected: Adjacent nodes are physically connected and seeing light 0xFE RIC Failure State: Must cycle the ring service state or run diagnostics 0xFF Out of Service: Ring is down and unable to pass data
Data[2] More Status This field indicates the ring status information whenever the ring unexpectedly goes down. 0x00 EXNET Card Reset Host has taken ring out-of-service (normal reset) 0x01 Ring Configuration Incomplete 0x02 Waiting for Addition 0x05 Unsupported Ring Mod 0xF6 EXNET Card In Failed State: EXNET Card has reset too many times 0xF7 EXNET Card Reset: EXNET Card configuration information changed 0xF8 EXNET Card Reset: Remote node timed out 0xF9 EXNET Card Timed Out During Ring Initialization 0xFA Internal Diagnostics Failed 0xFB EXNET Card Isolated From Ring 0xFC Ring Out of Service: Internal failure 0xFE Not Receiving Light 0xFF Ring Out of Service
Data[3] EXNET Port A Status This field indicates the status of EXNET port A. 0x00 Normal 0x01 Loop Back
Data[4] EXNET Port B Status This field indicates the status of EXNET port B. 0x00 Normal 0x01 Loop Back
Data[5] Master Status This field indicates whether or not this node is the master. 0x00 Not Master 0x01 Master
Data[6] Transmit Mode This field indicates status of the transmit and receive mode. 0x00 Receive Only 0x01 Transmit/Receive |
||
|
|
Data[7] Source Packet Number This field indicates the ID number of the source packet. 0x00–0x1F Source Packet Number 0xFF Source Packet Number Unassigned
Data[8] Master Arbitration Flag This field indicates whether or not a node is allowed to become EXNET Ring Master: 0x01 This node is allowed to participate in EXNET Ring Master Arbitration. 0x00 This node is not allowed to participate in EXNET Ring Master Arbitration.
Data[9] Redundancy State This field indicates redundancy state of the RICs: 0x00 No Redundancy 0x01 Active RIC 0x02 Standby RIC 0xFF Role Not Yet Defined
Data[10] Current Ring Mode This field indicates the Ring Mode: 0x00 Normal Ring Mode 0x01 Enhanced Fault Tolerance Ring Mode |
||
|
: |
Checksum |
||
Response Data
Ring Configuration Query
When querying the ring configuration, the following Data is returned.

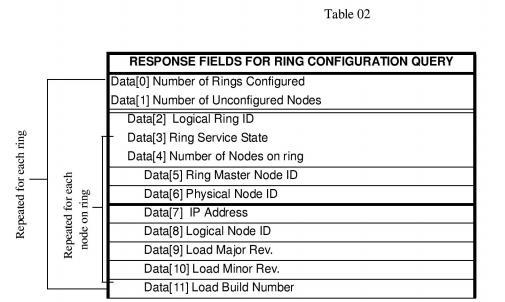

Figure 0-1 Ring Configuration Query Response Data Format
Data[0] Number of Rings Configured
Data[1] Number of Unconfigured Nodes
NOTE: Data[2-12] is reported for each ring in the system.
Data[2] Logical Ring ID
Data[3] Ring Service State
0x00 Out of Service
0x01 In Service
Data[4] Number of Nodes on Ring
Data[5] Ring Master Node ID
NOTE: Data[6-12] is repeated for each node on the ring.
Data[6] Logical Node ID
Data[7] Physical Node ID
Data[8] IP Address
Data[9] Load Major Revision
0x00 Unavailable
0x01 Major Revision Number of the Load on the Matrix greater
Data[10] Load Minor Revision
0x00 Unavailable
0x01 Minor Revision Number of the Load on the Matrix greater
Data[11] Load Build Number
0x00 Unavailable
0x01 Build Number of the Load on the Matrix greater
Data[12] Transmit/Receive Mode
0x00 Receive Only
0x01 Transmit and Receive
