ISUP Incoming Call Setup

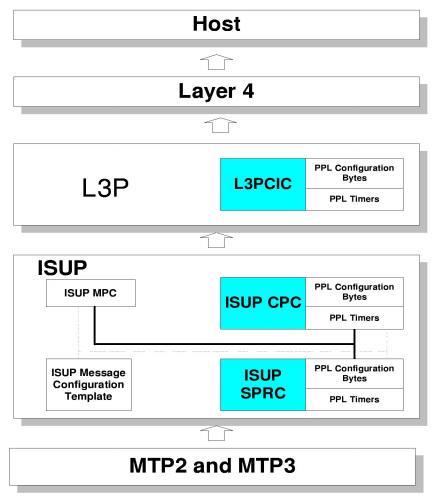

The figure below illustrates the default interaction between the host and the SS7 PPL components during an incoming SS7 call. Shading identifies the software components involved in the call.

The default incoming call sequence shown in the diagram above is described in the table below.

The call flows in this section include more details about the numbered messages. The numbered messages are described following each call flow.

Stage	Description
1	Raw ISUP messages are received by MTP and passed to ISUP.
2	ISUP SPRC is responsible for routing the data to the appropriate component. Assuming the data is for a valid CIC, it is routed to ISUP CPC for processing. If the data is maintenance related, it is routed to MPC. In the event of an unrecognized message type or invalid CIC, a CFN or UCIC is sent to the network (for ANSI only).
3	Assuming no error conditions occur, ISUP consults the ISUP Message Configuration Template to identify the message and translate the raw data into the format of an SS7 Parameters ICB to pass to L3P. To modify the ISUP message formats, the host issues the ISUP Message Configuration message. The host can configure which parameters are included and can also customize messages for ISUP variants.
4	L3P passes generic setup indication messages to Layer 4, which drive Layer 4 into an inseized state and generate a Request For Service With Data message to include an SS7 parameters ICB with all received parameters to the host. You can modify this format to specify the parameters passed or to have the Called and Calling Party passed to the host as BCD encoded digits.

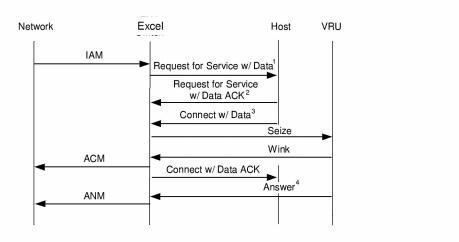

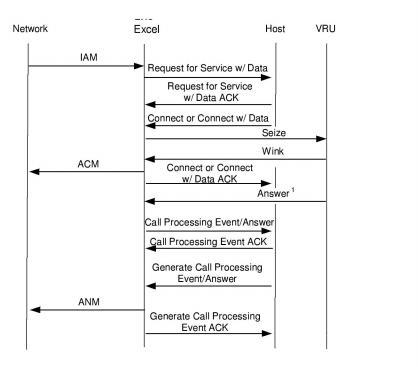

The following call flow uses a Voice Response Unit (VRU) as the outgoing leg of a tandem connection. The VRU is a T1 E&M wink start channel. More details about the numbered messages are provided following the call flow.

1. When using the default L3P, all SS7 parameters in the IAM pass to the host in the Request For Service With Data message in the following format (see Information Control Blocks chapter in the API Reference for information on ICB formats):

You can also configure L3P to send the called and calling party digits as BCD-encoded digit strings by modifying the PPL Configuration Bytes. (See Request for Service message format.)

2. The host must acknowledge the Request For Service With Data message or the Excel platform resends the message once after 5 seconds.

3. The host must provide mandatory SS7 parameters for the ACM and ANM as determined by the following:

Connect With Data message with SS7 Parameters ICBs (the parameters for each must be sent in separate ICBs). For ANM and ACM, this condition allows the host to dynamically overwrite any pre-stored parameters in the L3P CIC Configuration Bytes.

Connect message using preprogrammed parameter values in the L3P CIC PPL Configuration Bytes.

Generate Call Processing Event of Answer using pre-programmed ACM and ANM parameters.

4. Because the Voice Response Unit (VRU) is running asynchronously to the Excel platform, Answer can return anytime after the Wink.

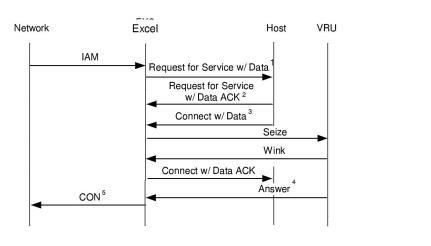

The following call flow shows a VRU as the outgoing leg of a tandem connection using CON. The VRU is a T1 E&M wink start channel.

1. When using the default L3P, all SS7 parameters included in the IAM pass to the host in the Request For Service With Data message in the following format (see the Information Control Blocks chapter in the API Reference for information on ICB formats):

You can configure the L3P to send the called and calling party digits as BCD-encoded digit strings by modifying the PPL Config Bytes (see Request for Service Message format.)

2. The host must ACK the Request For Service With Data message or the Excel platform will resend the message once after 5 seconds.

3. The host must provide the mandatory SS7 parameters for CON as determined by the following:

• Connect With Data message with SS7 Parameters ICBs (the parameters for each must be sent in separate ICBs).

• Connect message using preprogrammed parameter values in the L3P CIC PPL Config Bytes.

• Generate Call Processing Event of Answer using defaults stored in CON parameter.

4. Because the VRU is running asynchronously to the Excel platform, Answer returns anytime after the Wink.

5. Connect is set based on the specified setting in L3P CIC Configuration Byte 9.

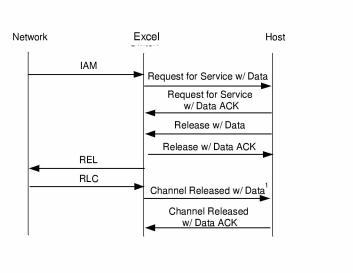

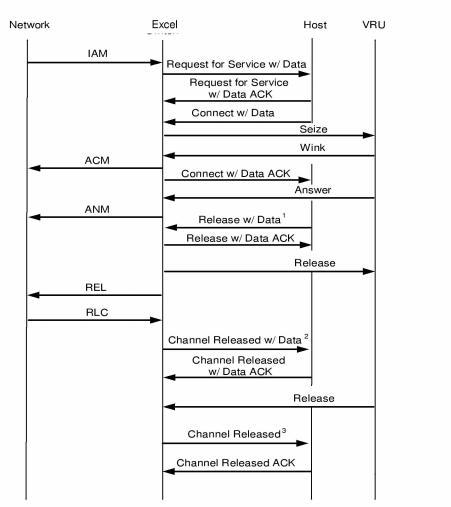

1. The host must provide at least the mandatory parameters for the forward REL, either in a:

• Release message using preprogrammed parameter values in the L3P CIC PPL Configuration bytes

2. The Channel Released With Data message contains an SS7 parameter ICB with the parameters from the incoming RLC (Release Complete).

3. A Channel Released message indicates that the VRU channel is idle and ready for a new call.

1. The Channel Release With Data message contains an SS7 Parameter ICB with the REL parameters.

1. With Answer Supervision set to Notify Only, answer is not propagated to the SS7 channel. A Call Processing Event of Answer is sent to the host for the VRU.

2. To answer an SS7 call, the host may use the Generate Call Processing Event of Answer. The parameters for the ANM will be retrieved from the PPL Configuration Bytes.

See Integrated Services Digital Network User Part.

See Signaling System Number Seven.

See Programmable Protocol Language.

See Message Transfer Part.

See Circuit Identification Codes.

In PPL, a condition that, when met, drives a state machine (PPL Component) from one state to another, by invoking an associated Primitive. In PPL files, an Event is marked by an arrow and text.

American National Standards Institute. ANSI administers and coordinates the U.S. voluntary standardization and conformity assessment system for the
telecommunications industry. More details on these standards may be
viewed at www.ansi.org.

See Information Control Block.

Call processing layer of the CSP.

RFS. A Status Message indicating that some entity is requesting service from the Excel platform.

Digital communications link - voice, data, and video at a 1.544 Mbps rate (24 64 Kbps channels)

ICB. A standardized block that allows control data to be inserted in a standard way into API messages.

Momentary interruption in a single frequency tone indicating the distant switch is ready to receive the digits just dialed.

International Telecommunications Union (UN)

Positive acknowledgment to a message

A computer, attached to the Excel platform through an RS-232 or Ethernet link, from which you run the telecommunications application that controls the Excel platform.
