ISUP Segmentation

Overview

ISUP is associated with SS7-specific voice and data call processing; it is used to set up circuit connections and to maintain those connections between end-point subscribers for the duration of a call, using SS7-controlled Circuit Identification Codes (CICs). Segmentation is used to enable faster and more efficient transfer of ISUP messages across a network using the Segmentation Message (SGM). This feature is associated with the ITU White Book, 1993 (Q.761 - Q.764)

Definition

The ISDN User Part (ISUP) Segmentation provides the capability of breaking down larger packets of data into smaller ones in order to achieve compatibility with any network protocol that requires the smaller packet size. This is necessary whenever large blocks of data need to be transmitted across a network, to offset problems with both time delays and error correction that could lead to traffic congestion. ISUP Segmentation in this way conserves critical network resources.

Using the Segmentation Message (SGM)

The Message Transfer Part (MTP) functions as the lowest layer in the SS7 protocol stack, and it is this layer that communicates with the rest of the network. But MTP cannot send more than 272 bytes in a single message. With ISUP there is a need to transfer larger amounts of data, so the SGM message was introduced to segment any ISUP message over 272 bytes into two parts. This allows the MTP to transfer it successfully. The two parts include the primary ISUP message and the SGM, which contains the segmented portion over 272 bytes. The SGM is sent immediately after the primary ISUP message to the MTP layer.

Each message can only be segmented once. If the information in the message is so large that even an SGM becomes insufficient, then that information will be discarded.

At the receiving end, the primary ISUP message and the Segmented portion are concatenated before processing.

PPL Information

Simple Segmentation Control (SSC) Component ID (0x85)

This is the ITU ISUP PPL component created to support the SGM message in the Excel platform. This component takes care of the segmentation process at the transmission end and the re-assembly of the ISUP message at the receiving end.

CPC Component ID (0x12)

The ISUP CPC PPL component communicates through the SGM to the PPL SSC component.

ISUP Messages Used with SGM

The following messages are the only ones that can be sent or received using the SGM: IAM, ACM, ANM, CPG, and CON.

All other ISUP messages are transparent and are therefore passed through the SSC component without modifications or segmentation.

Size and Capacity

The host-to-Excel platform and Excel platform-to-host TCP message packet size is limited to 260 bytes and 492 bytes, respectively. Therefore, the ISUP message sent in a PPL Event Request from the host to the Excel platform cannot exceed 260 bytes.

When an ISUP message and its associated SGM are received by the PPL ITU SSC component, it will be divided into packets of 220 bytes each and then sent on to the L3P CIC PPL component.

Configuration

The outgoing SGM can be enabled or disabled based on a config byte setting. The CPC Config Byte for SGM control is "0x04".

Config Bytes 0x01-0x05 are used for ISUP SCLC Component ID (0x85).

See SS7 PPL Information in this manual for more information on these config bytes.

Protocol Timers

Each PPL component has multi-purpose timers, which you can activate at any time. Each component using timers has a table that contains information on specific timers (name, value). When a protocol requires a timer, an atomic function is initiated to activate one of the PPL timers and to point to an index in the component’s timer table, which contains the value for the required timer.

One timer exists for the SSC PPL Component: 0x01

PPL Events

The PPL Indication "0x32" exists for the L3P CIC PPL Component (0x0F), for sending a Segmentation indication to the host.

Atomic Functions

SSC contains the atomic functions (51-63) that manage the segmentation and re-assembly of messages.

CPC contains the atomic functions (134-138) that communicate with the SSC component.

Redundancy

Redundancy for ISUP Segmentation is available.

ISUP Segmentation Call Flows

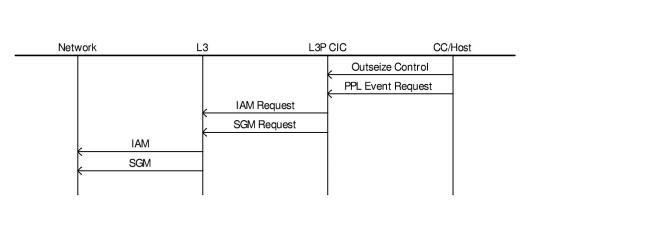

Outgoing Call with Segmentation in IAM

The following call flow describes an outgoing call with Segmentation in IAM. After the host sends an Outseize Control message to L3P CIC, it then sends a PPL Event Request (0x60) to this component. After a setup request has been sent to CPC, and an IAM has been received by the network, an SGM message is sent to the network

.

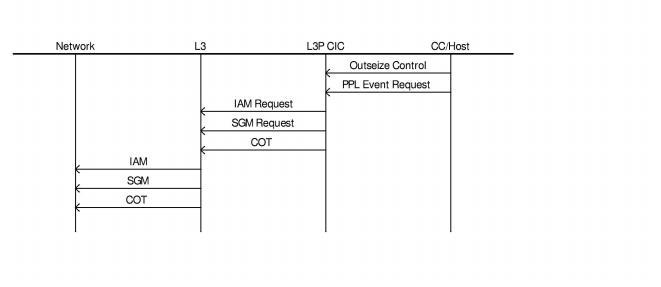

Outgoing Call with Segmentation in IAM when COT is enabled

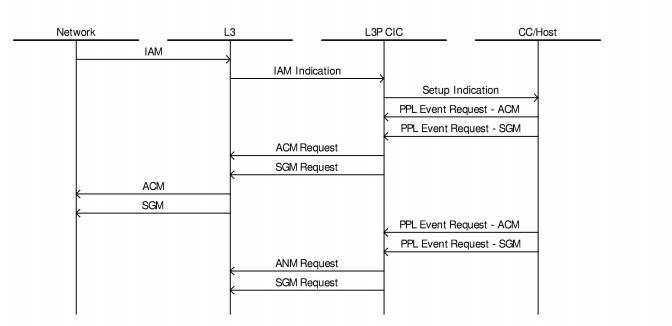

Segmentation in ACM/ANM

The following call flow describes segmentation in an ACM/ANM message.

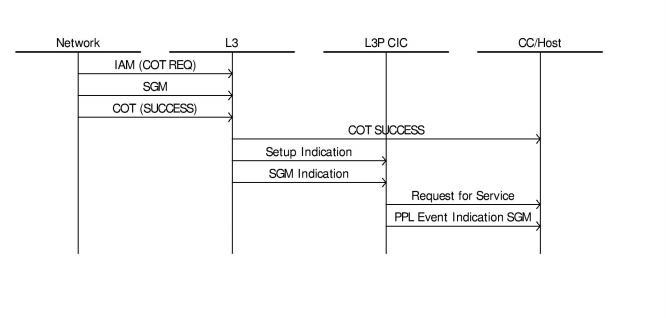

Incoming Segmentation with COT Enabled - COT Success

The following call flow describes an incoming call with segmentation and Continuity Check enabled.

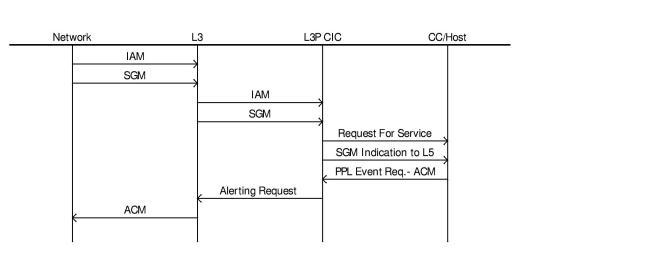

Incoming Call with Segmentation

The following call flow describes an incoming call with Segmentation. The SGM message is received after the IAM at the SSC component. Once the SGM is received, the RFS and the SGM message are sent to the host. (Alternatively, the SGM message and IAM can be concatenated and a single RFS can be sent to the host if the Config Byte 0x02 in the SSC component 0x85 is changed to 0x00.)

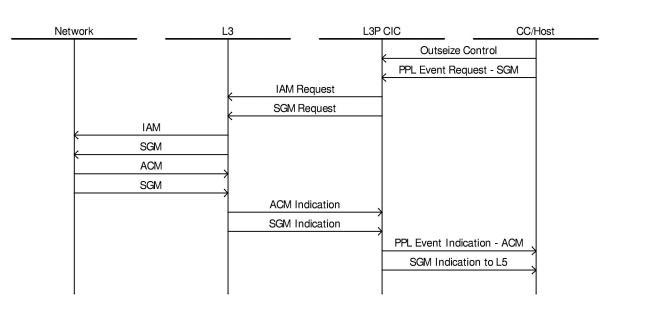

Outgoing Call with Segmentation in IAM and Backward Messages

When sending a large Outseize (> 272) bytes, the message is segmented by the SSC component. The following call flow shows a typical scenario for this process.

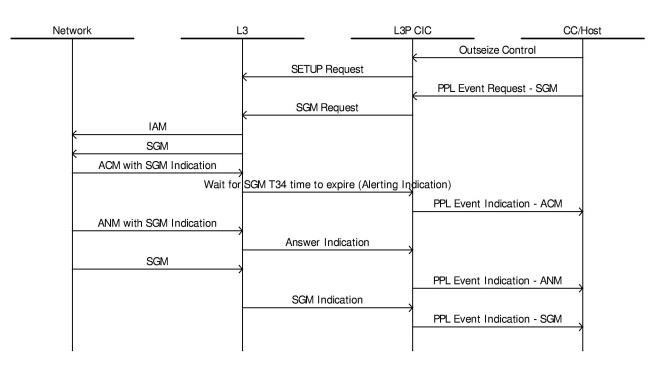

Incoming Segmentation Timeout

This call flow describes a scenario wherein the ACM message indicates that an SGM is to follow. However, if the SGM is not received till the expiry of T34 (typically 2 s), the ACM is forwarded to the Host. Any SGM message that follows is discarded.

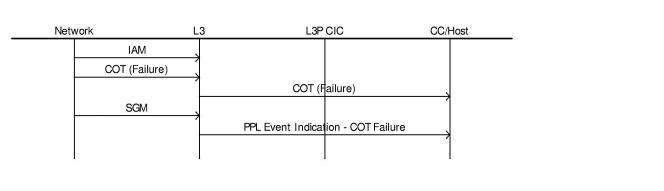

Segmentation with Continuity Failure
