Suspend/Resume

Overview

This section includes information and call flows about the ISUP Suspend and Resume messages.

Definitions

Suspend

The Suspend (SUS) message indicates a temporary cessation of communication without releasing the call. SUS can only be accepted in an answered state (ICC answered/OGC answered).

Resume

A Resume (RES) message indicates a request to recommence communication. If the RES is not sent within timer T6 or T2 (T2 applies to ITU only), the controlling exchange will initiate a release procedure.

PPL Information

The SUS and RES messages are passed in the PPL Event Request and PPL Event Indication messages, with the following Event ID values:

0x2D

SUS

0x2E

RES

For ANSI, only network-initiated SUS/RES are allowed. Only called party can send SUS. For ITU, both user and network-initiated SUS/RES are supported. Both calling and called party can initiate SUS.

Atomic function (104) in the ISUP CPC component checks for network- or user-initiated SUS/RES.

Host-Initiated

L3P CIC passes the SUS request from the host to CPC, upon which CPC enters the suspended state and waits for a RES request to recommence the communication. L3P CIC forwards the RES request from the host to CPC and CPC returns to the answered state. If the RES is not received within the resume wait timer, the call is released.

Network-Initiated

When a SUS is received from the network, CPC enters the suspended state and waits for a RES. When a RES is received from the network, CPC returns to the answered state. If the timer initiated at the controlling exchange expires before RES is received, REL is initiated.

PPL event indications include data in SS7 Raw ICB format. If the SUS/RES is not received with the valid indicator, a PPL Event Indication message indicating the error is sent to the host.

Customization

Use the PPL configuration bytes in the L3P CIC component to modify the handling of the SUS and RES messages.

SUS (ITU)

The table below shows the L3P CIC PPL Config Bytes used to configure the SUS message for ITU.

Byte

Description

Value

485

Information Length

0x05

486

Message ID

0x0D

487

Number Of Parameters

0x01

488

Parameter1 ID

0x22 (Suspend/Resume indicator)

489

Parameter Data Length

0x01

490

Parameter value

0x01 (Network Initiated)

SUS (ANSI)

The table below shows the L3P CIC PPL Config Bytes used to configure the SUS message for ANSI.

Byte

Description

Value

480

Information Length

0x05

481

Message ID

0x0D

482

Number Of Parameters

0x01

483

Parameter1 ID

0x22 (Suspend/Resume indicator)

484

Parameter Data Length

0x01

485

Parameter value

0x01 (Network Initiated)

RES (ITU)

The table below shows the L3P CIC PPL Config Bytes used to configure the RES message for ITU.

Byte

Description

Value

492

Information Length

0x05

493

Message ID

0x0E

494

Number Of Parameters

0x01

495

Parameter1 ID

0x22 (Suspend/Resume indicator)

496

Parameter Data Length

0x01

497

Parameter value

0x01 (Network Initiated)

RES (ANSI)

The table below shows the L3P CIC PPL Config Bytes used to configure the RES message for ANSI.

BYTE

Description

Value

490

Information Length

0x05

491

Message ID

0x0E

492

Number Of Parameters

0x01

493

Parameter1 ID

0x22 (Suspend/Resume indicator)

494

Parameter Data Length

0x01

495

Parameter value

0x01 (Network Initiated)

Suspend and Resume Call Flows

This section includes call flows showing the Suspend and Resume messages

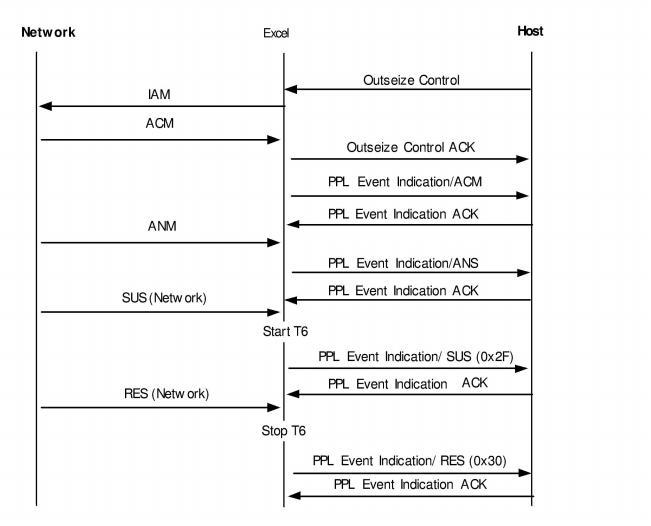

Suspend Followed by Resume

.

Suspend Followed by Release
