PSC-60 Card - Model No. CSN-PSC-1000
The PSC-60 power card supports the CSP 2040 chassis. A second
PSC-60 card provides redundancy. During normal operation, the LED is ON. If the power module fails, the LED blinks.
This card converts the -48 V DC input power to +5 V DC using a power module. During normal operation, the power module LED is ON. If a module fails, the LED blinks. The switch enables or disables voltage conversion.
The card is installed into a dedicated Power slot on the front of the
CSP 2040 chassis.
The part number, serial number, model number, and revision are located on the back of the board.
The PSC-60 card is designed to the following electrical, physical and environmental specifications.
|
Electrical |
Specification |
|---|---|
|
Supply Voltage, Vcc |
-48V |
|
Supply Voltage, Vout |
5.00V |
|
Supply Current, Vcc @ 5.0V |
60A (typical) |
|
Physical |
Specification |
|---|---|
|
Height |
101.6 mm (4.0 in.) |
|
Depth |
330.2 mm (13.0 in.) |
|
Width |
28.6 mm (1.125 in.) |
|
Environmental |
Specification |
|---|---|
|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
|
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
|
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~C/min. |
|
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ 10~C/min. |
|
Humidity - Operating |
5% to 85% |
|
Altitude |
Up to 4000 m (13,123 ft.) |
The PSC-60 card complies with all relevant regulations from the following standards organizations and governing bodies.
|
Country/Standards Organization |
Regulations |
|---|---|
|
United States
|
FCC Part 15 CSA 60950-1-3 |
|
Canada
|
ICES 003 CSA 60950-1-3 |
|
NEBS |
Level 3 |
|
European Union |
CE Mark |
The products related to the PSC-60 card are listed below.
|
Product |
Model No. |
|---|---|
|
CSP 2040 Chassis |
CSN-CHA-1112 |

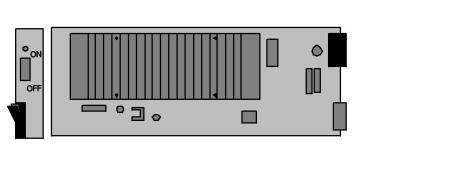

The front view shows the LEDs and switches used to generate, monitor and control +5 V DC for line card and I/O card use.
The table below describes the LEDs and switches as shown in the front view of the PSC-60 card.
|
5V LED |
Color/Status |
Description |
|---|---|---|
|
|
Green |
Indicates normal operation of a power module |
|
Blinking Green |
Indicates a power module is out of tolerance or disabled |
|
|
Off |
Indicates a power module is turned off. |
|
|
Switch |
Description |
|
|
ON |
Enables conversion of -48 V DC to +5 V DC. |
|
|
OFF |
Disables conversion of -48 V DC to +5 V DC. |
|
Important! In a redundant configuration the LEDs blinks when the associated power source (CB1 or CB2) or power switch on the card front panel is set to OFF.
