CCS I/O Card - Model No. EXS-CCS-1000
The CCS I/O card allows you to use the following Common Channel Signaling (CCS) card in a distributed environment on a CSP:
• SS7 PQ card
The single slot CCS I/O card is paired with one of the above cards to support either a single 10Base-T or 10Base-2 Ethernet connection, auto-selected.
The Common Channel Signaling card call control at the Server Node matrix communicates with the Matrix Controller Series 3 card on remote CSP nodes over the Ethernet using the CCS I/O card. A redundant CCS card connects to the remote matrix through the Ethernet, and to the primary CCS card through the HDLC bus.
LEDs on the front panel of the I/O card indicate Receive, Transmit, and Collision status.
The CCS I/O Redundancy Link cable serves as an independent HDLC link for redundancy between the adjacent CCS I/O cards.
Important! Redundant configurations are optional. If selected, the removal of one of a pair of CCS I/O cards will not interrupt CCS system operation nor require user intervention.
The CCS I/O card resides in the rear card slot of a CSP 2090, CSP 2110, or CSP 2040 chassis directly behind the corresponding CCS card.
The part number, serial number, model number, and revision are located on the back of the board.
The CCS I/O card is designed to the following electrical, physical and environmental specifications.
|
Electrical |
Specification |
|---|---|
|
Supply Voltage, Vcc |
5.00V |
|
Supply Current, Vcc @ 5.0V |
0.74A (typical) |
|
Physical |
Specification |
|---|---|
|
Height |
318.5 mm (12.54 in.) |
|
Depth |
105.2 mm (4.14 in) |
|
Width |
19.7 mm (0.775 in.) |
|
Environmental |
Specification |
|---|---|
|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
|
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
|
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~C/min. |
|
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ 10~C/min. |
|
Humidity - Operating |
5% to 85% |
|
Altitude |
Up to 4000 m (13,123 ft.) |
The CCS I/O card complies with all relevant regulations from the following standards organizations and governing bodies.
|
Country/Standards Organization |
Regulations |
|---|---|
|
United States |
FCC Part 15 CSA 60950-1-3 |
|
Canada |
ICES 003 CSA 60950-1-3 |
|
NEBS |
Level 3 |
|
European Union |
CE Mark |
The products related to the CCS I/O card are listed below.
|
Product |
Model No. |
|---|---|
|
SS7 PQ Card |
EXS-SS7-1360 |
|
CCS I/O Redundancy Link Cable (Part # 64-0123-00) |
Not Applicable |

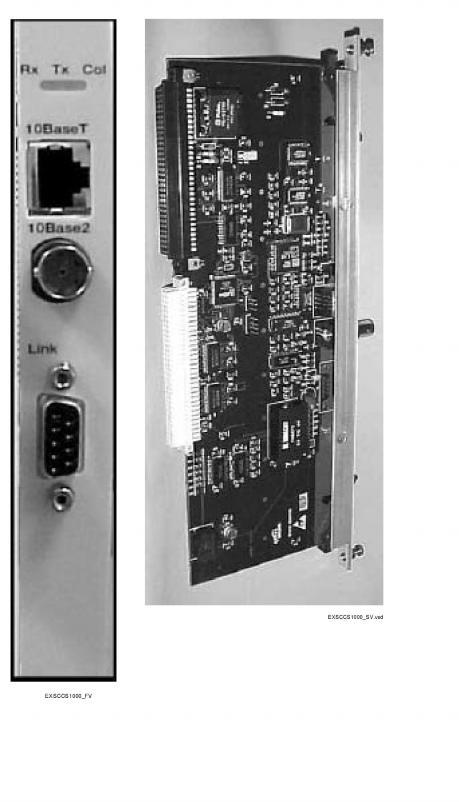

The front view shows the LEDs, Redundancy Link connector and Ethernet connectors.
The table below describes the LEDs as shown in the front view of the CCS I/O card.
|
LEDs |
Color/Status |
Description |
|---|---|---|
|
RX (Receive) |
Green |
Indicates Ethernet network receive activity |
|
Off |
No activity |
|
|
TX (Transmit) |
Green |
Indicates Ethernet network transmit activity |
|
Off |
No activity |
|
|
CD (Collision Detection) |
Green |
Indicates Ethernet network collision detection activity |
|
Off |
No activity |
