Configuring Gateway Mode

This procedure describes configuring the Gateway Mode on a Converged Services Platform (CSP) node. For more details on the Gateway Mode and the Normal Mode, see the Developer’s Guide: IP, IP Network Interface Series 2 Card chapter.

Before you begin

You must have a IP Network Interface Series 2 (IPN S2) card added and configured in a node. Gateway Mode cannot be configured if you have a VDAC-ONE card also installed and configured on the same node.

Saving a Configuration

Do the following to configure Gateway Mode:

1 Open the node view.

2 Right-click on the IPN S2 card in the node view.

3 Select IPN-S2 Gateway Configuration from the menu.

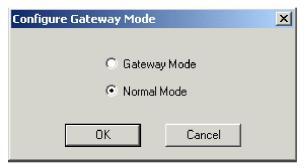

The Configure Gateway Mode dialog box opens.

4 Select the Gateway Mode option.

5 Click OK.
