H.323 Incoming Call - Fast Connect, No Gatekeeper

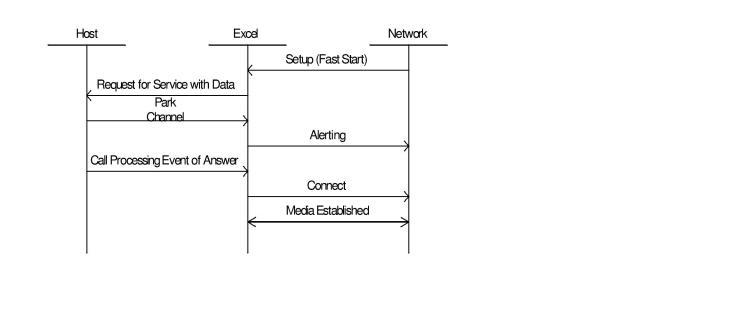

Message Trace
Receive Setup
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 2D71
H225: 0... .... .... .... = Message from originator
H225: .010 1101 0111 0001 = Call reference value = 11633
H225: Message type = 5 (Setup)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: ...0 1000 = Information transfer capability = 8 (Unrestricted digital
information)
H225: Mode and rate flags = C0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...0 0000 = Information transfer rate = 0 (Used for packet mode calls)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225: Calling Party Number
H225: Information element identifier = 108
H225: Calling party number contents length = 11
H225: Type and numbering flags = FF
H225: 1... .... = Expected extension bit
H225: .111 .... = Type of number = 7 (Reserved for extension)
H225: .... 1111 = Numbering plan ID = 15 (Reserved for extension)
H225: Number digits flag = 35
H225: 0... .... = Expected extension bit
H225: Number digits = "5088623456"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 578
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 20
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 0 (Setup)
H225:
H225: Flags = A8
H225: 1... .... = Extension value(s) present in Setup
H225: .0.. .... = h245Address is not present
H225: ..1. .... = sourceAddress is present
H225: ...0 .... = destinationAddress is not present
H225: .... 1... = destCallSignalAddress is present
H225: .... .0.. = destExtraCallInfo is not present
H225: .... ..0. = destExtraCRV is not present
H225: .... ...0 = callServices is not present
H225:
H225: Protocol id = {0.0.8.2250.0.2}
H225:
H225: Number of sourceAddress = 2
H225:
H225: Flags = 40
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 1 (H323-ID)
H225: H323-ID = "Excel"
H225:
H225: Flags = 04
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 0 (E164)
H225: Length of e164 = 10
H225: E.164 = 5088623456
H225:
H225: Flags = 22
H225: 0... .... = No extension value(s) present in sourceInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225:
H225: destCallSignalAddress
H225:
H225: .... 0... = No extension value(s) present in destCallSignalAddress
H225: destCallSignalAddress = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 1720
H225:
H225: Flags = 00
H225: 0... .... = Active MC = 0
H225: Conference id = 3FB87FC806EA18109CD80050DAD08480
H225: Flags = 00
H225: 0... .... = No extension value(s) present in conferenceGoal
H225: Conference goal = 0 (Create)
H225:
H225: callType
H225: ...0 .... = No extension value(s) present in callType
H225: callType = 0 (Point to point)
H225:
H225: .... ..0. = Extension length determinant
H225: Number of extension = 12
H225: .... .1.. = sourceCallSignalAddress is present
H225: .... ..0. = remoteExtensionAddress is not present
H225: .... ...1 = callIdentifier is present
H225: Flags = 1D
H225: 0... .... = h245SecurityCapability is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...1 .... = fastStart is present
H225: .... 1... = mediaWaitForConnect is present
H225: .... .1.. = canOverlapSend is present
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in sourceCallSignalAddress
H225: sourceCallSignalAddress = 0 (IP address)
H225: IP = 135.119.55.170
H225: Port = 2302
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = 3FB87FC806EA18109CD90050DAD08480
H225: Number of fastStart = 440
FastStartElement Received
40 00 00 06 04 01 00 4c 10 09 00 00 3d 06 4c 50 43 2d 31 30 80 11 1c 00 01 00 87
77 37 aa
13 88 00 87 77 37 aa 13 89
FastStartElement Received
00 00 64 0c 10 09 00 00 3d 06 4c 50 43 2d 31 30 80 0b 0d 00 01 00 87 77 37 aa 13
89 80
FastStartElement Received
40 00 00 06 04 01 00 4e 0c 03 00 83 00 80 11 1c 00 01 00 87 77 37 aa 13 88 00 87
77 37 aa
13 89
FastStartElement Received
00 00 65 0e 0c 03 00 83 00 80 0b 0d 00 01 00 87 77 37 aa 13 89 80
FastStartElement Received
40 00 00 06 04 01 00 4c 10 b5 00 53 4c 2a 02 00 00 00 00 00 40 01 00 00 40 01 02
00 08 00
00 00 00 00 31 00 01 00 40 1f 00 00 59 06 00 00 41 00 00 00 02 00 40 01 00 00 80
12 1c 40
01 00 87 77 37 aa 13 88 00 87 77 37 aa 13 89 00
FastStartElement Received
00 00 66 0c 10 b5 00 53 4c 2a 02 00 00 00 00 00 40 01 00 00 40 01 02 00 08 00 00
00 00 00
31 00 01 00 40 1f 00 00 59 06 00 00 41 00 00 00 02 00 40 01 00 00 80 0b 0d 40 01
00 87 77
37 aa 13 89 80
FastStartElement Received
40 00 00 06 04 01 00 4c 20 1d 80 11 1c 00 01 00 87 77 37 aa 13 88 00 87 77 37 aa
13 89
FastStartElement Received
00 00 68 0c 20 1d 80 0b 0d 00 01 00 87 77 37 aa 13 89 80
FastStartElement Received
40 00 00 06 04 01 00 48 71 03 51 00 80 01 00 80 11 1c 00 02 00 87 77 37 aa 13 8a
00 87 77
37 aa 13 8b
FastStartElement Received
40 00 00 06 04 01 00 48 6b 03 51 00 80 01 00 80 11 1c 00 02 00 87 77 37 aa 13 8a
00 87 77
37 aa 13 8b
Request for Service with Data
X->H
[00 52 00 2d 00 19 01 00 01 0d 03 00 a8 1a 00 33 01 03 00 33
00 3e 00 07 27 7e 00 03 09 00 00 27 4e 00 02 00 05 27
92 00 04 87 77 37 b7 27 93 00 04 00 00 38 00 27 18 00
0a 04 00 00 00 0a 50 88 62 34 56 27 c1 00 02 00 3c 27
d8 00 07 4c 75 63 65 6e 74 00]
Park Channel
H->X
[00 11 00 bf 00 01 01 00 02 0d 03 00 a8 1a 0d 03 00 a8
1a]
X->H
[00 07 00 bf 00 01 01 00 10]
Send Alerting
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = AD71
H225: 1... .... .... .... = Message to originator
H225: .010 1101 0111 0001 = Call reference value = 11633
H225: Message type = 1 (Alerting)
H225:
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 92
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 03
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 3 (Alerting)
H225: Flags = C0
H225: 1... .... = Extension values present in Alerting-UUIE
H225: .1.. .... = h245Address is present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Destination information
H225: Flags = 02
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 00
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225:
H225: ...0 .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 53503
H225:
H225: Flags = 09
H225: 0... .... = Extension length determinant
H225: Number of extension = 5
H225: .... ...1 = callIdentifier is present
H225: Flags = 10
H225: 0... .... = h245SecurityMode is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...1 .... = fastStart is present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = 3FB87FC806EA18109CD90050DAD08480
H225: Number of fastStart = 2
FastStartElement sent
40 06 93 06 04 01 00 4c 60 1d 80 0b 05 00 01 00 87 77 37 b7 38 01 00
FastStartElement sent
00 00 67 0c 60 1d 80 12 15 00 01 00 87 77 37 b7 38 00 00 87 77 37 b7 38 01 80
Call processing Event of Answer
H->X
[00 0d 00 ba 00 02 01 00 01 0d 03 00 a8 1a 01]
X->H
[00 07 00 ba 00 02 01 00 10]
Send Connect
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = AD71
H225: 1... .... .... .... = Message to originator
H225: .010 1101 0111 0001 = Call reference value = 11633
H225: Message type = 7 (Connect)
H225:
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 109
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 02
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 2 (Connect)
H225: Flags = C0
H225: 1... .... = Extension values present in Connect-UUIE
H225: .1.. .... = h245Address is present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 53503
H225:
H225: Destination information
H225: Flags = 02
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 00
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225: Conference id = 3FB87FC806EA18109CD80050DAD08480
H225:
H225: Flags = 09
H225: 0... .... = Extension length determinant
H225: Number of extension = 5
H225: .... ...1 = callIdentifier is present
H225: Flags = 10
H225: 0... .... = h245SecurityMode is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...1 .... = fastStart is present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = 3FB87FC806EA18109CD90050DAD08480
H225: Number of fastStart = 2
FastStartElement sent
40 06 93 06 04 01 00 4c 60 1d 80 0b 05 00 01 00 87 77 37 b7 38 01 00
FastStartElement sent
00 00 67 0c 60 1d 80 12 15 00 01 00 87 77 37 b7 38 00 00 87 77 37 b7 38 01 80

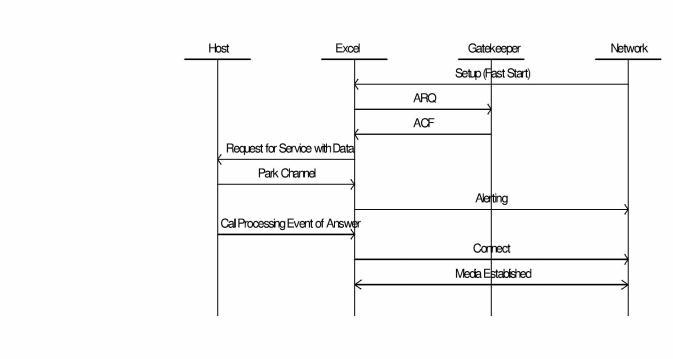

H.323 Incoming Call - Fast Connect, Gatekeeper

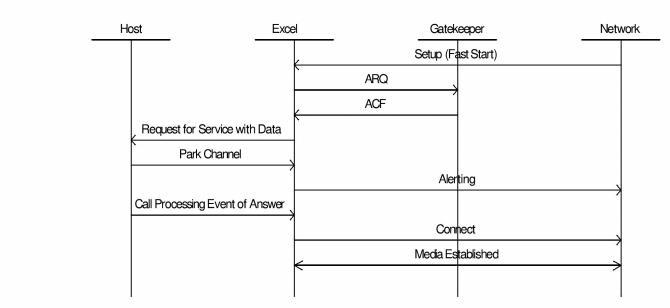

Message Trace
Receive Setup
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 2D74
H225: 0... .... .... .... = Message from originator
H225: .010 1101 0111 0100 = Call reference value = 11636
H225: Message type = 5 (Setup)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: 0 1000 = Information transfer capability = 8 (Unrestricted digital
information)
H225: Mode and rate flags = C0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...0 0000 = Information transfer rate = 0 (Used for packet mode calls)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225: Calling Party Number
H225: Information element identifier = 108
H225: Calling party number contents length = 11
H225: Type and numbering flags = FF
H225: 1... .... = Expected extension bit
H225: .111 .... = Type of number = 7 (Reserved for extension)
H225: .... 1111 = Numbering plan ID = 15 (Reserved for extension)
H225: Number digits flag = 35
H225: 0... .... = Expected extension bit
H225: Number digits = "5088623456"
H225:
H225: Called Party Number
H225: Information element identifier = 112
H225: Called party number contents length = 11
H225: Type and numbering flags = 81
H225: 1... .... = Expected extension bit
H225: .000 .... = Type of number = 0 (Unknown)
H225: .... 0001 = Numbering plan ID = 1 (ISDN/telephony (E.164))
H225: Call number flag = 35
H225: 0... .... = Expected extension bit
H225: Call number = "5088622222"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 587
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 20
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 0 (Setup)
H225:
H225: Flags = B8
H225: 1... .... = Extension value(s) present in Setup
H225: .0.. .... = h245Address is not present
H225: ..1. .... = sourceAddress is present
H225: ...1 .... = destinationAddress is present
H225: .... 1... = destCallSignalAddress is present
H225: .... .0.. = destExtraCallInfo is not present
H225: .... ..0. = destExtraCRV is not present
H225: .... ...0 = callServices is not present
H225:
H225: Protocol id = {0.0.8.2250.0.2}
H225:
H225: Number of sourceAddress = 2
H225:
H225: Flags = 40
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 1 (H323-ID)
H225: H323-ID = "Excel"
H225:
H225: Flags = 04
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 0 (E164)
H225: Length of e164 = 10
H225: E.164 = 5088623456
H225:
H225: Flags = 22
H225: 0... .... = No extension value(s) present in sourceInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225:
H225: Number of destinationAddress = 1
H225:
H225: Flags = 04
H225: 0... .... = No extension value(s) present in destinationAddress
H225: destinationAddress = 0 (E164)
H225: Length of e164 = 10
H225: E.164 = 5088622222
H225:
H225: destCallSignalAddress
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in destCallSignalAddress
H225: destCallSignalAddress = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 1720
H225:
H225: Flags = 00
H225: 0... .... = Active MC = 0
H225: Conference id = E978D4CF06EA18109CDB0050DAD08480
H225: Flags = 00
H225: 0... .... = No extension value(s) present in conferenceGoal
H225: Conference goal = 0 (Create)
H225:
H225: callType
H225: ...0 .... = No extension value(s) present in callType
H225: callType = 0 (Point to point)
H225:
H225: .... ..0. = Extension length determinant
H225: Number of extension = 12
H225: .... .1.. = sourceCallSignalAddress is present
NUMBER OF OLC'S IN THE FS PROPOSAL = 12
FastStartElement Received
40 00 00 06 04 01 00 4c 10 09 00 00 3d 06 4c 50 43 2d 31 30 80 11 1c 00 01 00 87
77 37 aa
13 88 00 87 77 37 aa 13 89
FastStartElement Received
00 00 64 0c 10 09 00 00 3d 06 4c 50 43 2d 31 30 80 0b 0d 00 01 00 87 77 37 aa 13
89 80
FastStartElement Received
40 00 00 06 04 01 00 4e 0c 03 00 83 00 80 11 1c 00 01 00 87 77 37 aa 13 88 00 87
77 37 aa
13 89
FastStartElement Received
00 00 65 0e 0c 03 00 83 00 80 0b 0d 00 01 00 87 77 37 aa 13 89 80
FastStartElement Received
40 00 00 06 04 01 00 4c 10 b5 00 53 4c 2a 02 00 00 00 00 00 40 01 00 00 40 01 02
00 08 00
00 00 00 00 31 00 01 00 40 1f 00 00 59 06 00 00 41 00 00 00 02 00 40 01 00 00 80
12 1c 40
01 00 87 77 37 aa 13 88 00 87 77 37 aa 13 89 00
FastStartElement Received
00 00 66 0c 10 b5 00 53 4c 2a 02 00 00 00 00 00 40 01 00 00 40 01 02 00 08 00 00
00 00 00
31 00 01 00 40 1f 00 00 59 06 00 00 41 00 00 00 02 00 40 01 00 00 80 0b 0d 40 01
00 87 77
37 aa 13 89 80
FastStartElement Received
00 00 67 0c 60 1d 80 0b 0d 00 01 00 87 77 37 aa 13 89 80
FastStartElement Received
40 00 00 06 04 01 00 4c 20 1d 80 11 1c 00 01 00 87 77 37 aa 13 88 00 87 77 37 aa
13 89
FastStartElement Received
00 00 68 0c 20 1d 80 0b 0d 00 01 00 87 77 37 aa 13 89 80
FastStartElement Received
40 00 00 06 04 01 00 48 71 03 51 00 80 01 00 80 11 1c 00 02 00 87 77 37 aa 13 8a
00 87 77
37 aa 13 8b
FastStartElement Received
40 00 00 06 04 01 00 48 6b 03 51 00 80 01 00 80 11 1c 00 02 00 87 77 37 aa 13 8a
00 87 77
37 aa 13 8b
Send ARQ
----- H.225 Gatekeeper Registration, Admission and Status -----
RAS:
RAS: Flags = 26
RAS: 0... .... = No extension value(s) present in RasMessage
RAS: RAS message = 9 (Admission Request)
RAS: .... ..1. = Extension value(s) present in admissionRequest
RAS: .... ...0 = callModel is not present
RAS: Flags = 80
RAS: 1... .... = destinationInfo is present
RAS: .0.. .... = destCallSignalAddress is not present
RAS: ..0. .... = destExtraCallInfo is not present
RAS: ...0 .... = srcCallSignalAddress is not present
RAS: .... 0... = nonStandardData is not present
RAS: .... .0.. = callServices is not present
RAS: Request sequence number = 8
RAS: Flags = 02
RAS: 0... .... = No extension value(s) present in callType
RAS: callType = 0 (Point to point)
RAS: Endpoint ID = "Excel-CSP"
RAS: Number of destinationInfo = 1
RAS:
RAS: Flags = 04
RAS: 0... .... = No extension value(s) present in destinationInfo
RAS: destinationInfo = 0 (E164)
RAS: Length of e164 = 10
RAS: E.164 = 5088622222
RAS: Number of srcInfo = 2
RAS:
RAS: Flags = 04
RAS: 0... .... = No extension value(s) present in srcInfo
RAS: srcInfo = 0 (E164)
RAS: Length of e164 = 10
RAS: E.164 = 5088623456
RAS:
RAS: Flags = 40
RAS: 0... .... = No extension value(s) present in srcInfo
RAS: srcInfo = 1 (H323-ID)
RAS: H323-ID = "Excel"
RAS: Band width = 1280
RAS: Call reference value = 44404
RAS: Conference id = E978D4CF06EA18109CDB0050DAD08480
RAS: Flags = 44
RAS: 0... .... = Active MC = 0
RAS: .1.. .... = Answer call = 1
RAS:
RAS: ..0. .... = Extension index format
RAS: Number of extension = 10
RAS: .1.. .... = canMapAlias is present
RAS: ..1. .... = callIdentifier is present
RAS: ...0 .... = srcAlternatives is not present
RAS: .... 0... = destAlternatives is not present
RAS: .... .0.. = gatekeeperIdentifier is not present
RAS: .... ..0. = tokens is not present
RAS: .... ...0 = cryptoTokens is not present
RAS: Flags = 20
RAS: 0... .... = integrityCheckValue is not present
RAS: .0.. .... = transportQOS is not present
RAS: ..1. .... = willSupplyUUIEs is present
RAS: Flags = 80
RAS: 1... .... = canMapAlias = 1
RAS:
RAS: Flags = 00
RAS: 0... .... = No extension value(s) present in callIdentifier
RAS: Guid = E978D4CF06EA18109CDC0050DAD08480
RAS: Flags = 00
RAS: 0... .... = Will supply UUIEs = 0
Receive ACF
----- H.225 Gatekeeper Registration, Admission and Status -----
RAS:
RAS: Flags = 2A
RAS: 0... .... = No extension value(s) present in RasMessage
RAS: RAS message = 10 (Admission Confirm)
RAS: .... ..1. = Extension value(s) present in admissionConfirm
RAS: .... ...0 = irrFrequency is not present
RAS: Flags = 80
RAS: 1... .... = nonStandardData is present
RAS: Request sequence number = 8
RAS: Band width = 1280
RAS:
RAS: Flags = 00
RAS: 0... .... = No extension value(s) present in callModel
RAS: Call model = 0 (Direct)
RAS:
RAS: ..0. .... = No extension value(s) present in destCallSignalAddress
RAS: destCallSignalAddress = 0 (IP address)
RAS: IP = 0.0.0.0
RAS: Port = 1720
RAS:
RAS: Flags = 40
RAS: 0... .... = No extension value(s) present in NonStandardIdentifier
RAS: nonStandardIdentifier = 1 (H221 non standard)
RAS:
RAS: ..0. .... = No extension value(s) present in h221NonStandard
RAS: T.35 country code = 0xB5 (USA)
RAS: T.35 extension = 0
RAS: Manufacture code = 0x 14 (Ascend)
RAS: Length of data = 10
RAS: Data: 10 byte(s) of data
RAS:
RAS: Flags = 15
RAS: 0... .... = Extension index format
RAS: Number of extension = 11
RAS: .... ...1 = destinationInfo is present
RAS: Flags = 00
RAS: 0... .... = destExtraCallInfo is not present
RAS: .0.. .... = destinationType is not present
RAS: ..0. .... = remoteExtensionAddress is not present
RAS: ...0 .... = alternateEndpoints is not present
RAS: .... 0... = tokens is not present
RAS: .... .0.. = cryptoTokens is not present
RAS: .... ..0. = integrityCheckValue is not present
RAS: .... ...0 = transportQOS is not present
RAS: Flags = C0
RAS: 1... .... = willRespondToIRR is present
RAS: .1.. .... = uuiesRequested is present
RAS: Number of destinationInfo = 1
RAS:
RAS: Flags = 04
RAS: 0... .... = No extension value(s) present in destinationInfo
RAS: destinationInfo = 0 (E164)
RAS: Length of e164 = 10
RAS: E.164 = 5088622222
RAS: Flags = 00
RAS: 0... .... = willRespondToIRR = 0
RAS:
RAS: Flags = 00
RAS: 0... .... = No extension value(s) present in uuiesRequested
RAS: .0.. .... = Setup = 0
RAS: ..0. .... = Call proceeding = 0
RAS: ...0 .... = Connect = 0
RAS: .... 0... = Alerting = 0
RAS: .... .0.. = User Information = 0
RAS: .... ..0. = Release complete = 0
RAS: .... ...0 = Facility = 0
RAS: Flags = 00
RAS: 0... .... = Progress = 0
RAS: .0.. .... = Empty = 0
Request for Service with data
X->H
[00 66 00 2d 00 1d 01 00 01 0d 03 00 a8 1d 00 33 01 03 00 33
00 52 00 09 27 7e 00 03 09 00 00 27 4e 00 02 00 05 27
92 00 04 87 77 37 b7 27 93 00 04 00 00 38 e0 27 18 00
0a 04 00 00 00 0a 50 88 62 34 56 27 17 00 08 04 00 0a
50 88 62 22 22 27 c1 00 02 00 3c 27 d8 00 07 4c 75 63
65 6e 74 00 27 c3 00 04 00 00 06 b8]
Park Channel
H->X
[00 11 00 bf 00 01 01 00 02 0d 03 00 a8 1d 0d 03 00 a8
1d]
X->H
[00 07 00 bf 00 01 01 00 10]
Send Alerting
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = AD74
H225: 1... .... .... .... = Message to originator
H225: .010 1101 0111 0100 = Call reference value = 11636
H225: Message type = 1 (Alerting)
H225:
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 92
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 03
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 3 (Alerting)
H225: Flags = C0
H225: 1... .... = Extension values present in Alerting-UUIE
H225: .1.. .... = h245Address is present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Destination information
H225: Flags = 02
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 00
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225:
H225: ...0 .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 53506
H225:
H225: Flags = 09
H225: 0... .... = Extension length determinant
H225: Number of extension = 5
H225: .... ...1 = callIdentifier is present
H225: Flags = 10
H225: 0... .... = h245SecurityMode is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...1 .... = fastStart is present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = E978D4CF06EA18109CDC0050DAD08480
H225: Number of fastStart = 2
FastStartElement sent
40 06 cb 06 04 01 00 4c 60 1d 80 0b 05 00 01 00 87 77 37 b7 38 e1 00
FastStartElement sent
00 00 67 0c 60 1d 80 12 15 00 01 00 87 77 37 b7 38 e0 00 87 77 37 b7 38 e1 80
Call Processing Event of Answer
H->X
[00 0d 00 ba 00 02 01 00 01 0d 03 00 a8 1d 01]
X->H
[00 07 00 ba 00 02 01 00 10]
Send Connect
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = AD74
H225: 1... .... .... .... = Message to originator
H225: .010 1101 0111 0100 = Call reference value = 11636
H225: Message type = 7 (Connect)
H225:
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 109
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 02
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 2 (Connect)
H225: Flags = C0
H225: 1... .... = Extension values present in Connect-UUIE
H225: .1.. .... = h245Address is present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 53506
H225:
H225: Destination information
H225: Flags = 02
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 00
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225: Conference id = E978D4CF06EA18109CDB0050DAD08480
H225:
H225: Flags = 09
H225: 0... .... = Extension length determinant
H225: Number of extension = 5
H225: .... ...1 = callIdentifier is present
H225: Flags = 10
H225: 0... .... = h245SecurityMode is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...1 .... = fastStart is present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = E978D4CF06EA18109CDC0050DAD08480
H225: Number of fastStart = 2
FastStartElement sent
40 06 cb 06 04 01 00 4c 60 1d 80 0b 05 00 01 00 87 77 37 b7 38 e1 00
FastStartElement sent
00 00 67 0c 60 1d 80 12 15 00 01 00 87 77 37 b7 38 e0 00 87 77 37 b7 38 e1 80

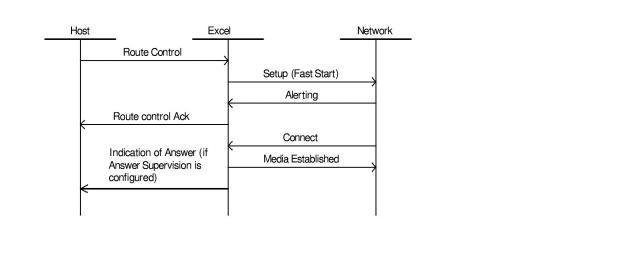

H.323 Outgoing Call - Fast Connect, No Gatekeeper
Message Trace
Route Control
H->X
[00 5e 00 e8 00 01 01 00 01 29 02 ff fe 02 03 00 1e 00
19 00 04 00 13 00 02 00 08 00 08 00 02 00 65 00 0f 00
01 0b 00 65 00 02 00 00 03 00 33 00 2f 00 06 27 7e 00
01 09 27 c1 00 02 00 3c 27 c2 00 04 87 77 37 aa 27 17
00 05 10 00 04 30 95 27 18 00 07 10 00 04 0a 04 34 50
27 b0 00 02 00 01]
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 06B0
H225: 0... .... .... .... = Message from originator
H225: .000 0110 1011 0000 = Call reference value = 1712
H225: Message type = 5 (Setup)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: ...0 1000 = Information transfer capability = 8 (Unrestricted digital information)
H225: Mode and rate flags = D0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...1 0000 = Information transfer rate = 16 (64 kbit/s)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 6
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225: Calling Party Number
H225: Information element identifier = 108
H225: Calling party number contents length = 5
H225: Type and numbering flags = 89
H225: 1... .... = Expected extension bit
H225: .000 .... = Type of number = 0 (Unknown)
H225: .... 1001 = Numbering plan ID = 9 (Private)
H225: Number digits flag = 33
H225: 0... .... = Expected extension bit
H225: Number digits = "3450"
H225:
H225: Called Party Number
H225: Information element identifier = 112
H225: Called party number contents length = 5
H225: Type and numbering flags = 89
H225: 1... .... = Expected extension bit
H225: .000 .... = Type of number = 0 (Unknown)
H225: .... 1001 = Numbering plan ID = 9 (Private)
H225: Call number flag = 33
H225: 0... .... = Expected extension bit
H225: Call number = "3095"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 142
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 00
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 0 (Setup)
H225:
H225: Flags = F0
H225: 1... .... = Extension value(s) present in Setup
H225: .1.. .... = h245Address is present
H225: ..1. .... = sourceAddress is present
H225: ...1 .... = destinationAddress is present
H225: .... 0... = destCallSignalAddress is not present
H225: .... .0.. = destExtraCallInfo is not present
H225: .... ..0. = destExtraCRV is not present
H225: .... ...0 = callServices is not present
H225:
H225: Protocol id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 53510
H225:
H225: Number of sourceAddress = 1
H225:
H225: Flags = 01
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 0 (E164)
H225: Length of e164 = 4
H225: E.164 = 3450
H225:
H225: Flags = 02
H225: 0... .... = No extension value(s) present in sourceInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 00
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225:
H225: Number of destinationAddress = 2
H225:
H225: Flags = 01
H225: 0... .... = No extension value(s) present in destinationAddress
H225: destinationAddress = 0 (E164)
H225: Length of e164 = 4
H225: E.164 = 3095
H225:
H225: Flags = 81
H225: 1... .... = Extension value(s) present in destinationAddress
H225: destinationAddress = 0 (URL-ID)
H225: URL-ID =
FastStartElement sent
00 07 13 0c 20 13 80 0b 05 00 01 00 87 77 37 b7 3a 01 00
FastStartElement sent
40 ff fe 06 04 01 00 4c 20 13 80 12 15 00 01 00 87 77 37 b7 3a 00 00 87 77 37 b7
3a 01 00
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 86B0
H225: 1... .... .... .... = Message to originator
H225: .000 0110 1011 0000 = Call reference value = 1712
H225: Message type = 1 (Alerting)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 77
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 23
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 3 (Alerting)
H225: Flags = 80
H225: 1... .... = Extension values present in Alerting-UUIE
H225: .0.. .... = h245Address is not present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Destination information
H225: Flags = 22
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225:
H225: .... 0... = Extension length determinant
H225: Number of extension = 7
H225: ...1 .... = callIdentifier is present
H225: .... 0... = h245SecurityMode is not present
H225: .... .0.. = tokens is not present
H225: .... ..0. = cryptoTokens is not present
H225: .... ...0 = fastStart is not present
H225:
H225: Flags = C0
H225: 1... .... = Extension value(s) present in callIdentifier
H225: Guid = 1100000006B0000006B0616263643132
H225:
H225: Flags = 33
H225: 0... .... = Extension length determinant
H225: Number of extension = 26
H225: .... ...1 = h4501SupplementaryService is present
H225: Flags = 34
H225: 0... .... = h245Tunneling is not present
H225: .0.. .... = h245Control is not present
H225: ..1. .... = nonStandardControl is present
H225: Number of h4501SupplementaryService = 0
H225: Flags = 00
H225: 0... .... = H245 tunneling = 0
H225: Number of nonStandardControl = 1
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in NonStandardIdentifier
H225: nonStandardIdentifier = 0 (Object)
H225: Data: 0 byte(s) of data
Route Control Ack
X->H
[00 14 00 e8 00 01 01 00 10 01 02 1e 09 00 01 00 39 00 03 00
a9 02]
Receive Connect
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 86B0
H225: 1... .... .... .... = Message to originator
H225: .000 0110 1011 0000 = Call reference value = 1712
H225: Message type = 7 (Connect)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: ...0 1000 = Information transfer capability = 8 (Unrestricted digital information)
H225: Mode and rate flags = C0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...0 0000 = Information transfer rate = 0 (Used for packet mode calls)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 152
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 22
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 2 (Connect)
H225: Flags = C0
H225: 1... .... = Extension values present in Connect-UUIE
H225: .1.. .... = h245Address is present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.170
H225: Port = 2358
H225:
H225: Destination information
H225: Flags = 22
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225: Conference id = 000006B0000006B03133353761636466
H225:
H225: Flags = 0D
H225: 0... .... = Extension length determinant
H225: Number of extension = 7
H225: .... ...1 = callIdentifier is present
H225: Flags = 1C
H225: 0... .... = h245SecurityMode is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...1 .... = fastStart is present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = 000006B0000006B06162636431323334
H225: Number of fastStart = 2
H225: Length of fastStart = 25
H225: Fast start = <0007130C> <13>
H225: Length of fastStart = 23
H225: Fast start = @<00>d<06040100>L <13>
H225:
H225: Flags = 01
H225: 0... .... = Extension length determinant
H225: Number of extension = 1
H225: .... ...1 = h4501SupplementaryService is present
H225: Flags = 00
H225: 0... .... = h245Tunneling is not present
H225: .0.. .... = h245Control is not present
H225: ..0. .... = nonStandardControl is not present
H225: Number of h4501SupplementaryService = 0
H225: Flags = 80
H225: 1... .... = H245 tunneling = 1
H225:
FastStartElement Received
00 07 13 0c 20 13 80 11 1c 00 01 00 87 77 37 aa 13 88 00 87 77 37 aa 13 89
FastStartElement Received
40 00 64 06 04 01 00 4c 20 13 80 0b 0d 00 01 00 87 77 37 aa 13 89 80
Indication of Answer (if Answer Supervision is Configured)
X->H
[00 0d 00 2e 00 07 01 00 01 0d 03 00 a8 07 20]
H.323 Outgoing Call - Fast Connect, Gatekeeper
Message Trace
Route Control
H->X
[00 5e 00 e8 00 01 01 00 01 29 02 ff fe 02 03 00 1e 00
19 00 04 00 13 00 02 00 08 00 08 00 02 00 65 00 0f 00
01 0b 00 65 00 02 00 00 03 00 33 00 2f 00 06 27 7e 00
01 09 27 c1 00 02 00 3c 27 c2 00 04 87 77 37 aa 27 17
00 05 10 00 04 30 95 27 18 00 07 10 00 04 0a 04 34 50
27 b0 00 02 00 01]
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 06B0
H225: 0... .... .... .... = Message from originator
H225: .000 0110 1011 0000 = Call reference value = 1712
H225: Message type = 5 (Setup)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: ...0 1000 = Information transfer capability = 8 (Unrestricted digital information)
H225: Mode and rate flags = D0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...1 0000 = Information transfer rate = 16 (64 kbit/s)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 6
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225: Calling Party Number
H225: Information element identifier = 108
H225: Calling party number contents length = 5
H225: Type and numbering flags = 89
H225: 1... .... = Expected extension bit
H225: .000 .... = Type of number = 0 (Unknown)
H225: .... 1001 = Numbering plan ID = 9 (Private)
H225: Number digits flag = 33
H225: 0... .... = Expected extension bit
H225: Number digits = "3450"
H225:
H225: Called Party Number
H225: Information element identifier = 112
H225: Called party number contents length = 5
H225: Type and numbering flags = 89
H225: 1... .... = Expected extension bit
H225: .000 .... = Type of number = 0 (Unknown)
H225: .... 1001 = Numbering plan ID = 9 (Private)
H225: Call number flag = 33
H225: 0... .... = Expected extension bit
H225: Call number = "3095"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 142
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 00
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 0 (Setup)
H225:
H225: Flags = F0
H225: 1... .... = Extension value(s) present in Setup
H225: .1.. .... = h245Address is present
H225: ..1. .... = sourceAddress is present
H225: ...1 .... = destinationAddress is present
H225: .... 0... = destCallSignalAddress is not present
H225: .... .0.. = destExtraCallInfo is not present
H225: .... ..0. = destExtraCRV is not present
H225: .... ...0 = callServices is not present
H225:
H225: Protocol id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 53510
H225:
H225: Number of sourceAddress = 1
H225:
H225: Flags = 01
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 0 (E164)
H225: Length of e164 = 4
H225: E.164 = 3450
H225:
H225: Flags = 02
H225: 0... .... = No extension value(s) present in sourceInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 00
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225:
H225: Number of destinationAddress = 2
H225:
H225: Flags = 01
H225: 0... .... = No extension value(s) present in destinationAddress
H225: destinationAddress = 0 (E164)
H225: Length of e164 = 4
H225: E.164 = 3095
H225:
H225: Flags = 81
H225: 1... .... = Extension value(s) present in destinationAddress
H225: destinationAddress = 0 (URL-ID)
H225: URL-ID =
FastStartElement sent
00 07 13 0c 20 13 80 0b 05 00 01 00 87 77 37 b7 3a 01 00
FastStartElement sent
40 ff fe 06 04 01 00 4c 20 13 80 12 15 00 01 00 87 77 37 b7 3a 00 00 87 77 37 b7
3a 01 00
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 86B0
H225: 1... .... .... .... = Message to originator
H225: .000 0110 1011 0000 = Call reference value = 1712
H225: Message type = 1 (Alerting)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 77
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 23
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 3 (Alerting)
H225: Flags = 80
H225: 1... .... = Extension values present in Alerting-UUIE
H225: .0.. .... = h245Address is not present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Destination information
H225: Flags = 22
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225:
H225: .... 0... = Extension length determinant
H225: Number of extension = 7
H225: ...1 .... = callIdentifier is present
H225: .... 0... = h245SecurityMode is not present
H225: .... .0.. = tokens is not present
H225: .... ..0. = cryptoTokens is not present
H225: .... ...0 = fastStart is not present
H225:
H225: Flags = C0
H225: 1... .... = Extension value(s) present in callIdentifier
H225: Guid = 1100000006B0000006B0616263643132
H225:
H225: Flags = 33
H225: 0... .... = Extension length determinant
H225: Number of extension = 26
H225: .... ...1 = h4501SupplementaryService is present
H225: Flags = 34
H225: 0... .... = h245Tunneling is not present
H225: .0.. .... = h245Control is not present
H225: ..1. .... = nonStandardControl is present
H225: Number of h4501SupplementaryService = 0
H225: Flags = 00
H225: 0... .... = H245 tunneling = 0
H225: Number of nonStandardControl = 1
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in NonStandardIdentifier
H225: nonStandardIdentifier = 0 (Object)
H225: Data: 0 byte(s) of data
Route Control Ack
X->H
[00 14 00 e8 00 01 01 00 10 01 02 1e 09 00 01 00 39 00 03 00
a9 02]
Receive Connect
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 86B0
H225: 1... .... .... .... = Message to originator
H225: .000 0110 1011 0000 = Call reference value = 1712
H225: Message type = 7 (Connect)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: ...0 1000 = Information transfer capability = 8 (Unrestricted digital information)
H225: Mode and rate flags = C0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...0 0000 = Information transfer rate = 0 (Used for packet mode calls)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 152
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 22
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 2 (Connect)
H225: Flags = C0
H225: 1... .... = Extension values present in Connect-UUIE
H225: .1.. .... = h245Address is present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.170
H225: Port = 2358
H225:
H225: Destination information
H225: Flags = 22
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225: Conference id = 000006B0000006B03133353761636466
H225:
H225: Flags = 0D
H225: 0... .... = Extension length determinant
H225: Number of extension = 7
H225: .... ...1 = callIdentifier is present
H225: Flags = 1C
H225: 0... .... = h245SecurityMode is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...1 .... = fastStart is present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = 000006B0000006B06162636431323334
H225: Number of fastStart = 2
H225: Length of fastStart = 25
H225: Fast start = <0007130C> <13>
H225: Length of fastStart = 23
H225: Fast start = @<00>d<06040100>L <13>
H225:
H225: Flags = 01
H225: 0... .... = Extension length determinant
H225: Number of extension = 1
H225: .... ...1 = h4501SupplementaryService is present
H225: Flags = 00
H225: 0... .... = h245Tunneling is not present
H225: .0.. .... = h245Control is not present
H225: ..0. .... = nonStandardControl is not present
H225: Number of h4501SupplementaryService = 0
H225: Flags = 80
H225: 1... .... = H245 tunneling = 1
H225:
FastStartElement Received
00 07 13 0c 20 13 80 11 1c 00 01 00 87 77 37 aa 13 88 00 87 77 37 aa 13 89
FastStartElement Received
40 00 64 06 04 01 00 4c 20 13 80 0b 0d 00 01 00 87 77 37 aa 13 89 80
Indication of Answer (if Answer Supervision is Configured)
X->H
[00 0d 00 2e 00 07 01 00 01 0d 03 00 a8 07 20]
H.323 Incoming Call with H.245 Procedure

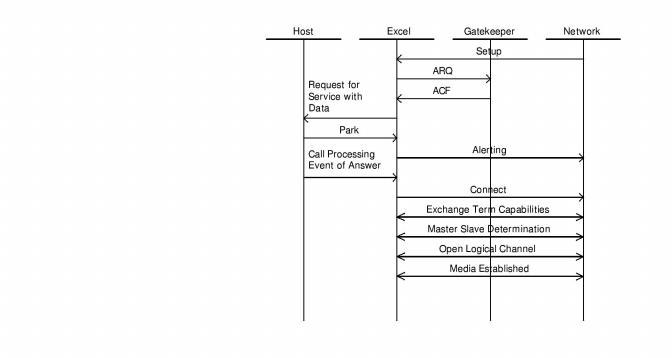

Message Trace
Receive Setup
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 38DA
H225: 0... .... .... .... = Message from originator
H225: .011 1000 1101 1010 = Call reference value = 14554
H225: Message type = 5 (Setup)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: ...0 1000 = Information transfer capability = 8 (Unrestricted digital information)
H225: Mode and rate flags = C0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...0 0000 = Information transfer rate = 0 (Used for packet mode calls)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225: Calling Party Number
H225: Information element identifier = 108
H225: Calling party number contents length = 11
H225: Type and numbering flags = FF
H225: 1... .... = Expected extension bit
H225: .111 .... = Type of number = 7 (Reserved for extension)
H225: .... 1111 = Numbering plan ID = 15 (Reserved for extension)
H225: Number digits flag = 35
H225: 0... .... = Expected extension bit
H225: Number digits = "5088623456"
H225:
H225: Called Party Number
H225: Information element identifier = 112
H225: Called party number contents length = 11
H225: Type and numbering flags = 81
H225: 1... .... = Expected extension bit
H225: .000 .... = Type of number = 0 (Unknown)
H225: .... 0001 = Numbering plan ID = 1 (ISDN/telephony (E.164))
H225: Call number flag = 35
H225: 0... .... = Expected extension bit
H225: Call number = "5088622222"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 348
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 20
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 0 (Setup)
H225:
H225: Flags = B8
H225: 1... .... = Extension value(s) present in Setup
H225: .0.. .... = h245Address is not present
H225: ..1. .... = sourceAddress is present
H225: ...1 .... = destinationAddress is present
H225: .... 1... = destCallSignalAddress is present
H225: .... .0.. = destExtraCallInfo is not present
H225: .... ..0. = destExtraCRV is not present
H225: .... ...0 = callServices is not present
H225:
H225: Protocol id = {0.0.8.2250.0.2}
H225:
H225: Number of sourceAddress = 2
H225:
H225: Flags = 40
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 1 (H323-ID)
H225: H323-ID = "Excel"
H225:
H225: Flags = 04
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 0 (E164)
H225: Length of e164 = 10
H225: E.164 = 5088623456
H225:
H225: Flags = 22
H225: 0... .... = No extension value(s) present in sourceInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225:
H225: Number of destinationAddress = 1
H225:
H225: Flags = 04
H225: 0... .... = No extension value(s) present in destinationAddress
H225: destinationAddress = 0 (E164)
H225: Length of e164 = 10
H225: E.164 = 5088622222
H225:
H225: destCallSignalAddress
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in destCallSignalAddress
H225: destCallSignalAddress = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 1720
H225:
H225: Flags = 00
H225: 0... .... = Active MC = 0
H225: Conference id = D0B440311DEA181092E40050DAD08480
H225: Flags = 00
H225: 0... .... = No extension value(s) present in conferenceGoal
H225: Conference goal = 0 (Create)
H225:
H225: callType
H225: ...0 .... = No extension value(s) present in callType
H225: callType = 0 (Point to point)
H225:
H225: .... ..0. = Extension length determinant
H225: Number of extension = 12
H225: .... .1.. = sourceCallSignalAddress is present
Send ARQ
----- H.225 Gatekeeper Registration, Admission and Status -----
RAS:
RAS: Flags = 26
RAS: 0... .... = No extension value(s) present in RasMessage
RAS: RAS message = 9 (Admission Request)
RAS: .... ..1. = Extension value(s) present in admissionRequest
RAS: .... ...0 = callModel is not present
RAS: Flags = 80
RAS: 1... .... = destinationInfo is present
RAS: .0.. .... = destCallSignalAddress is not present
RAS: ..0. .... = destExtraCallInfo is not present
RAS: ...0 .... = srcCallSignalAddress is not present
RAS: .... 0... = nonStandardData is not present
RAS: .... .0.. = callServices is not present
RAS: Request sequence number = 4
RAS: Flags = 03
RAS: 0... .... = No extension value(s) present in callType
RAS: callType = 0 (Point to point)
RAS: Endpoint ID = "618B086000000003"
RAS: Number of destinationInfo = 1
RAS:
RAS: Flags = 04
RAS: 0... .... = No extension value(s) present in destinationInfo
RAS: destinationInfo = 0 (E164)
RAS: Length of e164 = 10
RAS: E.164 = 5088622222
RAS: Number of srcInfo = 2
RAS:
RAS: Flags = 04
RAS: 0... .... = No extension value(s) present in srcInfo
RAS: srcInfo = 0 (E164)
RAS: Length of e164 = 10
RAS: E.164 = 5088623456
RAS:
RAS: Flags = 40
RAS: 0... .... = No extension value(s) present in srcInfo
RAS: srcInfo = 1 (H323-ID)
RAS: H323-ID = "Excel"
RAS: Band width = 1280
RAS: Call reference value = 47322
RAS: Conference id = D0B440311DEA181092E40050DAD08480
RAS: Flags = 44
RAS: 0... .... = Active MC = 0
RAS: .1.. .... = Answer call = 1
RAS:
RAS: ..0. .... = Extension index format
RAS: Number of extension = 10
RAS: .1.. .... = canMapAlias is present
RAS: ..1. .... = callIdentifier is present
RAS: ...0 .... = srcAlternatives is not present
RAS: .... 0... = destAlternatives is not present
RAS: .... .0.. = gatekeeperIdentifier is not present
RAS: .... ..0. = tokens is not present
RAS: .... ...0 = cryptoTokens is not present
RAS: Flags = 20
RAS: 0... .... = integrityCheckValue is not present
RAS: .0.. .... = transportQOS is not present
RAS: ..1. .... = willSupplyUUIEs is present
RAS: Flags = 80
RAS: 1... .... = canMapAlias = 1
RAS:
RAS: Flags = 00
RAS: 0... .... = No extension value(s) present in callIdentifier
RAS: Guid = B9B840311DEA181092E40050DAD08480
RAS: Flags = 00
RAS: 0... .... = Will supply UUIEs = 0
Receive ACF
----- H.225 Gatekeeper Registration, Admission and Status -----
RAS:
RAS: Flags = 2B
RAS: 0... .... = No extension value(s) present in RasMessage
RAS: RAS message = 10 (Admission Confirm)
RAS: .... ..1. = Extension value(s) present in admissionConfirm
RAS: .... ...1 = irrFrequency is present
RAS: Flags = 00
RAS: 0... .... = nonStandardData is not present
RAS: Request sequence number = 4
RAS: Band width = 1280
RAS:
RAS: Flags = 00
RAS: 0... .... = No extension value(s) present in callModel
RAS: Call model = 0 (Direct)
RAS:
RAS: ..0. .... = No extension value(s) present in destCallSignalAddress
RAS: destCallSignalAddress = 0 (IP address)
RAS: IP = 135.119.55.181
RAS: Port = 1720
RAS: IrrFrequency = 239
RAS:
RAS: Flags = 28
RAS: 0... .... = Extension index format
RAS: Number of extension = 21
RAS: .... ...0 = destinationInfo is not present
RAS: Flags = 00
RAS: 0... .... = destExtraCallInfo is not present
RAS: .0.. .... = destinationType is not present
RAS: ..0. .... = remoteExtensionAddress is not present
RAS: ...0 .... = alternateEndpoints is not present
RAS: .... 0... = tokens is not present
RAS: .... .0.. = cryptoTokens is not present
RAS: .... ..0. = integrityCheckValue is not present
RAS: .... ...0 = transportQOS is not present
RAS: Flags = C0
RAS: 1... .... = willRespondToIRR is present
RAS: .1.. .... = uuiesRequested is present
RAS: Flags = 01
RAS: 0... .... = willRespondToIRR = 0
RAS:
RAS: Flags = 02
RAS: 0... .... = No extension value(s) present in uuiesRequested
RAS: .0.. .... = Setup = 0
RAS: ..0. .... = Call proceeding = 0
RAS: ...0 .... = Connect = 0
RAS: .... 0... = Alerting = 0
RAS: .... .0.. = User Information = 0
RAS: .... ..1. = Release complete = 1
RAS: .... ...0 = Facility = 0
RAS: Flags = 00
RAS: 0... .... = Progress = 0
RAS: .0.. .... = Empty = 0
Request for Service with Data
X->H
[00 6e 00 2d 00 06 01 00 01 0d 03 00 a8 06 00 33 01 03 00 33
00 5a 00 0a 27 7e 00 03 09 00 00 27 4e 00 02 00 05 27
92 00 04 87 77 37 b7 27 93 00 04 00 00 38 80 27 18 00
0a 04 00 00 00 0a 50 88 62 34 56 27 17 00 08 04 00 0a
50 88 62 22 22 27 c1 00 02 00 3c 27 d8 00 07 4c 75 63
65 6e 74 00 27 c2 00 04 87 77 37 b5 27 c3 00 04 00 00
06 b8]
Park the Channel
H->X
[00 11 00 bf 00 01 01 00 02 0d 03 00 a8 06 0d 03 00 a8
06]
X->H
[00 07 00 bf 00 01 01 00 10]
Send Alerting
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = B8DA
H225: 1... .... .... .... = Message to originator
H225: .011 1000 1101 1010 = Call reference value = 14554
H225: Message type = 2 (Call Proceeding)
H225:
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 32
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 01
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 1 (Call proceeding)
H225: Flags = 80
H225: 1... .... = Extension values present in CallProceeding-UUIE
H225: .0.. .... = h245Address is not present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Destination information
H225: Flags = 02
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 01
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225:
H225: ...0 .... = Extension length determinant
H225: Number of extension = 5
H225: ..1. .... = callIdentifier is present
H225: ...0 .... = h245SecurityMode is not present
H225: .... 0... = tokens is not present
H225: .... .0.. = cryptoTokens is not present
H225: .... ..0. = fastStart is not present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = B9B840311DEA181092E40050DAD08480
H225:
Call Processing Event of Answer
H->X
[00 0d 00 ba 00 02 01 00 01 0d 03 00 a8 06 01]
X->H
[00 07 00 ba 00 02 01 00 10]
Send Connect
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = B8DA
H225: 1... .... .... .... = Message to originator
H225: .011 1000 1101 1010 = Call reference value = 14554
H225: Message type = 7 (Connect)
H225:
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 56
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 02
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 2 (Connect)
H225: Flags = C0
H225: 1... .... = Extension values present in Connect-UUIE
H225: .1.. .... = h245Address is present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 53500
H225:
H225: Destination information
H225: Flags = 02
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 00
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225: Conference id = D0B440311DEA181092E40050DAD08480
H225:
H225: Flags = 09
H225: 0... .... = Extension length determinant
H225: Number of extension = 5
H225: .... ...1 = callIdentifier is present
H225: Flags = 00
H225: 0... .... = h245SecurityMode is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...0 .... = fastStart is not present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = B9B840311DEA181092E40050DAD08480
H225:
Send Terminal capabilities
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 330
H245: Flags = 02
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 2 (Terminal Capability Set)
H245:
H245: Flags = 70
H245: 0... .... = No extension value(s) present in terminalCapabilitySet
H245: .1.. .... = multiplexCapability is present
H245: ..1. .... = capabilityTable is present
H245: ...1 .... = capabilityDescriptors is present
H245: Sequence number = 1
H245: Protocol id = {0.0.0.0.0.8}
H245:
H245: Flags = 80
H245: 1... .... = Extension value(s) present in MultiplexCapability
H245: .0.. .... = Choice value is 6 bits long
H245: Multiplex capability = 0 (H2250 Capability)
H245: Flags = 00
H245: 0... .... = No extension value(s) present in h2250Capability
H245: Maximum audio delay jitter = 60 (ms)
H245:
H245: *** Receive Multipoint Capability ***
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in receive multipoint capability
H245: .0.. .... = Multicast capability is OFF
H245: ..0. .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** Transmit Multipoint Capability ***
H245:
H245: .0.. .... = No extension value(s) present in transmit multipoint capability
H245: ..0. .... = Multicast capability is OFF
H245: ...0 .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** Receive and Transmit Multipoint Capability ***
H245:
H245: .0.. .... = No extension value(s) present in receive and transmit multipoint capability
H245: ..0. .... = Multicast capability is OFF
H245: ...0 .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** MC Capability ***
H245:
H245: .0.. .... = No extension value(s) present in mcCapability
H245: ..0. .... = Centralized Conference MC is OFF
H245: ...0 .... = Decentralized Conference MC is OFF
H245:
H245: .... 0... = RTCP video control capability is OFF
H245:
H245: *** Media Packetization Capability ***
H245:
H245: .... .0.. = No extension value(s) present in MediaPacketizationCapability
H245: .... ..0. = H261A video packetization is OFF
H245:
H245: *** Capability Table ***
H245:
H245: Number of capability table entry = 29
H245:
H245: Capability Table Entry Set #1
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 1
H245: Flags = 28
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 5 (Transmit audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 3 (G.711 ulaw 64k)
H245: Value = 20
H245:
H245: Capability Table Entry Set #2
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 2
H245: Flags = 20
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 4 (Receive audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 3 (G.711 ulaw 64k)
H245: Value = 20
H245:
H245: Capability Table Entry Set #3
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 3
H245: Flags = 28
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 5 (Transmit audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 1 (G.711 alaw 64k)
H245: Value = 20
H245:
H245: Capability Table Entry Set #4
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 4
H245: Flags = 20
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 4 (Receive audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 1 (G.711 alaw 64k)
H245: Value = 20
H245:
H245: Capability Table Entry Set #5
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 5
H245: Flags = 2A
H245: 0... .... = No extension value(s) present in Capability
Receive Terminal capabilities
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 194
H245: Flags = 02
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 2 (Terminal Capability Set)
H245:
H245: Flags = 70
H245: 0... .... = No extension value(s) present in terminalCapabilitySet
H245: .1.. .... = multiplexCapability is present
H245: ..1. .... = capabilityTable is present
H245: ...1 .... = capabilityDescriptors is present
H245: Sequence number = 2
H245: Protocol id = {0.0.8.245.0.3}
H245:
H245: Flags = 80
H245: 1... .... = Extension value(s) present in MultiplexCapability
H245: .0.. .... = Choice value is 6 bits long
H245: Multiplex capability = 0 (H2250 Capability)
H245: Flags = 80
H245: 1... .... = Extension value(s) present in h2250Capability
H245: Maximum audio delay jitter = 50 (ms)
H245:
H245: *** Receive Multipoint Capability ***
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in receive multipoint capability
H245: .0.. .... = Multicast capability is OFF
H245: ..0. .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** Transmit Multipoint Capability ***
H245:
H245: .0.. .... = No extension value(s) present in transmit multipoint capability
H245: ..0. .... = Multicast capability is OFF
H245: ...0 .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** Receive and Transmit Multipoint Capability ***
H245:
H245: .0.. .... = No extension value(s) present in receive and transmit multipoint capability
H245: ..0. .... = Multicast capability is OFF
H245: ...0 .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** MC Capability ***
H245:
H245: .0.. .... = No extension value(s) present in mcCapability
H245: ..0. .... = Centralized Conference MC is OFF
H245: ...0 .... = Decentralized Conference MC is OFF
H245:
H245: .... 0... = RTCP video control capability is OFF
H245:
H245: *** Media Packetization Capability ***
H245:
H245: .... .0.. = No extension value(s) present in MediaPacketizationCapability
H245: .... ..0. = H261A video packetization is OFF
H245: .... ...0 = Extension index format
H245: Number of extension = 4
H245: .... ..0. = transportCapability is not present
H245: .... ...0 = redundancyEncodingCapability is not present
H245: Flags = C0
H245: 1... .... = logicalChannelSwitchingCapability is present
H245: .1.. .... = t120DynamicPortCapability is present
H245: Flags = 00
H245: 0... .... = Logical channel switching capability is OFF
H245: Flags = 00
H245: 0... .... = T120 dynamic port capability is OFF
H245:
H245: *** Capability Table ***
H245:
H245: Number of capability table entry = 10
H245:
H245: Capability Table Entry Set #1
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 1
H245: Flags = 20
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 4 (Receive audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 0 (Non standard)
H245: nonStandardIdentifier = 1 (H221 Non Standard)
H245: T.35 country code = 0x 9 (Australia)
H245: T.35 extension = 0
H245: Manufacture code = 0x 3D (?)
H245: Data: 6 byte(s) of data
H245:
H245: Capability Table Entry Set #2
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 2
H245: Flags = 24
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 4 (Receive audio capability)
H245: .... .1.. = Extension value(s) present in AudioCapability
H245: .... ..0. = Extension index format
H245: Audio capability = 3 (GSM full rate)
H245: .... .0.. = No extension value(s) present in GSMAudioCapability
H245: Audio unit size = 4
H245: Flags = 00
H245: 0... .... = Confort noise
H245: .0.. .... = Scrambled
H245:
H245: Capability Table Entry Set #3
H245: ..0. .... = capability is not present
H245: Capability table entry number = 58881
H245:
H245: Capability Table Entry Set #4
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 3
Send Request Master Slave determination
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 11
H245: Flags = 01
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 1 (Master Slave Determination)
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in MasterSlaveDetermination
H245: Terminal type = 50
H245: Status determination number = 16750783
Receive Request Master Slave Determination
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 11
H245: Flags = 01
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 1 (Master Slave Determination)
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in MasterSlaveDetermination
H245: Terminal type = 50
H245: Status determination number = 3293797
Send Response Terminal capabilities
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 7
H245: Flags = 21
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 3 (Terminal Capability Set Ack)
H245: .0.. .... = No extension value(s) present in TerminalCapabilitySetAck
H245: Sequence number = 2
Receive Response Terminal Capabilities
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 7
H245: Flags = 21
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 3 (Terminal Capability Set Ack)
H245: .0.. .... = No extension value(s) present in TerminalCapabilitySetAck
H245: Sequence number = 1
Send Response Master Slave Determination
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 6
H245: Flags = 20
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 1 (Master Slave Determination Ack)
H245: .0.. .... = No extension value(s) present in MasterSlaveDeterminationAck
H245: Decision = 1 (Slave)
Receive Response Master Slave Determination
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 6
H245: Flags = 20
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 1 (Master Slave Determination Ack)
H245: .0.. .... = No extension value(s) present in MasterSlaveDeterminationAck
H245: Decision = 0 (Master)
Receive Request Open Logical Channel
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 24
H245: Flags = 03
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 3 (Open Logical Channel)
H245:
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in OpenLogicalChannel
H245: .0.. .... = reverseLogicalChannelParameters is not present
H245: Forward logical channel number = 100
H245:
H245: Flags = 0C
H245: 0... .... = No extension value(s) present in forwardLogicalChannelParameters
H245: .0.. .... = portNumber is not present
H245:
H245: ..0. .... = No extension value(s) present in dataType
H245: Data type = 3 (Audio data)
H245: .... ..0. = No extension value(s) present in audioData
H245: Audio capability = 3 (G.711 ulaw 64k)
H245: Value = 20
H245:
H245: Flags = 80
H245: 1... .... = Extension value(s) present in MultiplexParameters
H245: .0.. .... = Extension index format
H245: Multiplex parameters = 0 (H225 logical channel parameters)
H245:
H245: Flags = 0D
H245: 0... .... = No extension value(s) present in h2250LogicalChannelParameters
H245: .0.. .... = nonStandard is not present
H245: ..0. .... = associatedSessionID is not present
H245: ...0 .... = mediaChannel is not present
H245: .... 1... = mediaGuaranteedDelivery is present
H245: .... .1.. = mediaControlChannel is present
H245: .... ..0. = mediaControlGuaranteedDelivery is not present
H245: .... ...1 = silenceSuppression is present
H245: Flags = 00
H245: 0... .... = destination is not present
H245: .0.. .... = dynamicRTPPayloadType is not present
H245: ..0. .... = mediaPacketization is not present
H245: Session ID = 1
H245: Flags = 00
H245: 0... .... = Media guaranted delivery is OFF
H245:
H245: *** Media Control Channel ***
H245: .0.. .... = No extension value(s) present in mediaControlChannel(RTCP)
H245: Transport Address = 0 (Unicast address)
H245: ...0 .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... ...0 = No extension value(s) present in iPAddress
H245: Network = 135.119.55.170
H245: TSAP indentifier = 5001
H245: Flags = 80
H245: 1... .... = Silence suppression is ON
Send Response Open Logical Channel
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 27
H245: Flags = 22
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 5 (Open Logical Channel Ack)
H245:
H245: .1.. .... = Extension value(s) present in openLogicalChannelAck
H245: ..0. .... = reverseLogicalChannelParameters is not present
H245: Forward logical channel number = 100
H245:
H245: Flags = 04
H245: 0... .... = Extension index format
H245: Number of extension = 3
H245: .... ...0 = separateStack is not present
H245: Flags = 80
H245: 1... .... = forwardMultiplexAckParameters is present
H245: .0.. .... = encryptionSync is not present
H245: Flags = 1C
H245: 0... .... = No extension value(s) present in forwardMultiplexAckParameters
H245: .0.. .... = No extension value(s) present in H2250LogicalChannelAckParameters
H245: ..0. .... = nonStandard is not present
H245: ...1 .... = sessionID is present
H245: .... 1... = mediaChannel is present
H245: .... .1.. = mediaControlChannel is present
H245: .... ..0. = dynamicRTPPayloadType is not present
H245: Session ID = 1
H245: .... ...0 = No extension value(s) present in mediaChannel
H245: Transport Address = 0 (Unicast address)
H245: .0.. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... .0.. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.183
H245: TSAP indentifier = 14464
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaControlChannel (forward RTCP channel)
H245: Transport Address = 0 (Unicast address)
H245: ..0. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... ..0. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.183
H245: TSAP indentifier = 14465
Send Request Open Logical Channel
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 24
H245: Flags = 03
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 3 (Open Logical Channel)
H245:
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in OpenLogicalChannel
H245: .0.. .... = reverseLogicalChannelParameters is not present
H245: Forward logical channel number = 1715
H245:
H245: Flags = 0C
H245: 0... .... = No extension value(s) present in forwardLogicalChannelParameters
H245: .0.. .... = portNumber is not present
H245:
H245: ..0. .... = No extension value(s) present in dataType
H245: Data type = 3 (Audio data)
H245: .... ..0. = No extension value(s) present in audioData
H245: Audio capability = 3 (G.711 ulaw 64k)
H245: Value = 20
H245:
H245: Flags = 80
H245: 1... .... = Extension value(s) present in MultiplexParameters
H245: .0.. .... = Extension index format
H245: Multiplex parameters = 0 (H225 logical channel parameters)
H245:
H245: Flags = 05
H245: 0... .... = No extension value(s) present in h2250LogicalChannelParameters
H245: .0.. .... = nonStandard is not present
H245: ..0. .... = associatedSessionID is not present
H245: ...0 .... = mediaChannel is not present
H245: .... 0... = mediaGuaranteedDelivery is not present
H245: .... .1.. = mediaControlChannel is present
H245: .... ..0. = mediaControlGuaranteedDelivery is not present
H245: .... ...1 = silenceSuppression is present
H245: Flags = 00
H245: 0... .... = destination is not present
H245: .0.. .... = dynamicRTPPayloadType is not present
H245: ..0. .... = mediaPacketization is not present
H245: Session ID = 1
H245:
H245: *** Media Control Channel ***
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaControlChannel(RTCP)
H245: Transport Address = 0 (Unicast address)
H245: ..0. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... ..0. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.183
H245: TSAP indentifier = 14465
H245: Flags = 00
H245: 0... .... = Silence suppression is OFF
Receive Response Open Logical Channel
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 30
H245: Flags = 22
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 5 (Open Logical Channel Ack)
H245:
H245: .1.. .... = Extension value(s) present in openLogicalChannelAck
H245: ..0. .... = reverseLogicalChannelParameters is not present
H245: Forward logical channel number = 1715
H245:
H245: Flags = 02
H245: 0... .... = Extension index format
H245: Number of extension = 2
H245: .... ...0 = separateStack is not present
H245: Flags = 80
H245: 1... .... = forwardMultiplexAckParameters is present
H245: .0.. .... = encryptionSync is not present
H245: Flags = 5C
H245: 0... = No extension value(s) present in forward MultiplexAck Parameters
H245: .1.. .... = Extension value(s) present in H2250LogicalChannelAckParameters
H245: ..0. .... = nonStandard is not present
H245: ...1 .... = sessionID is present
H245: .... 1... = mediaChannel is present
H245: .... .1.. = mediaControlChannel is present
H245: .... ..0. = dynamicRTPPayloadType is not present
H245: Session ID = 1
H245: .... ...0 = No extension value(s) present in mediaChannel
H245: Transport Address = 0 (Unicast address)
H245: .0.. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... .0.. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.170
H245: TSAP indentifier = 5000
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaControlChannel (forward RTCP channel)
H245: Transport Address = 0 (Unicast address)
H245: ..0. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... ..0. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.170
H245: TSAP indentifier = 5001
H245:
H245: Flags = 01
H245: 0... .... = Extension index format
H245: Number of extension = 1
H245: .... ...1 = flowControlToZero is present
H245: Flags = 00
H245: 0... .... = Flow control to zero is OFF

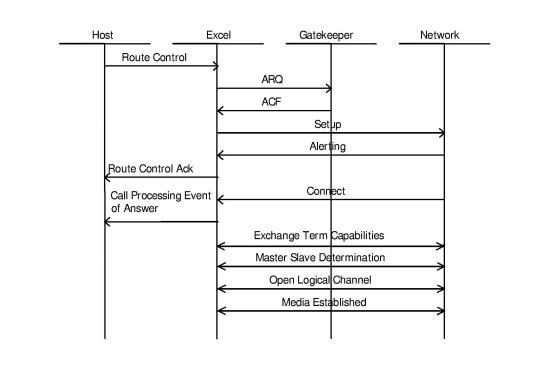

H.323 Outgoing Call with H.245 Procedure
Message Trace
Receive Route Control
H->X
[00 53 00 e8 00 02 01 00 01 29 02 ff fe 02 03 00 1e 00
19 00 04 00 13 00 02 00 08 00 08 00 02 00 65 00 0f 00
01 0b 00 65 00 02 00 00 03 00 33 00 24 00 04 27 7e 00
01 09 27 c1 00 02 00 3c 27 17 00 08 10 00 0a 50 88 62
34 56 27 18 00 07 10 00 04 0a 04 30 00]
Send ARQ
----- H.225 Gatekeeper Registration, Admission and Status -----
RAS:
RAS: Flags = 26
RAS: 0... .... = No extension value(s) present in RasMessage
RAS: RAS message = 9 (Admission Request)
RAS: .... ..1. = Extension value(s) present in admissionRequest
RAS: .... ...0 = callModel is not present
RAS: Flags = 80
RAS: 1... .... = destinationInfo is present
RAS: .0.. .... = destCallSignalAddress is not present
RAS: ..0. .... = destExtraCallInfo is not present
RAS: ...0 .... = srcCallSignalAddress is not present
RAS: .... 0... = nonStandardData is not present
RAS: .... .0.. = callServices is not present
RAS: Request sequence number = 11
RAS: Flags = 03
RAS: 0... .... = No extension value(s) present in callType
RAS: callType = 0 (Point to point)
RAS: Endpoint ID = "618B086000000003"
RAS: Number of destinationInfo = 1
RAS:
RAS: Flags = 04
RAS: 0... .... = No extension value(s) present in destinationInfo
RAS: destinationInfo = 0 (E164)
RAS: Length of e164 = 10
RAS: E.164 = 5088623456
RAS: Number of srcInfo = 1
RAS:
RAS: Flags = 01
RAS: 0... .... = No extension value(s) present in srcInfo
RAS: srcInfo = 0 (E164)
RAS: Length of e164 = 4
RAS: E.164 = 3000
RAS: Band width = 1280
RAS: Call reference value = 1664
RAS: Conference id = 00000680000006803133353761636466
RAS: Flags = 04
RAS: 0... .... = Active MC = 0
RAS: .0.. .... = Answer call = 0
RAS:
RAS: ..0. .... = Extension index format
RAS: Number of extension = 10
RAS: .1.. .... = canMapAlias is present
RAS: ..1. .... = callIdentifier is present
RAS: ...0 .... = srcAlternatives is not present
RAS: .... 0... = destAlternatives is not present
RAS: .... .0.. = gatekeeperIdentifier is not present
RAS: .... ..0. = tokens is not present
RAS: .... ...0 = cryptoTokens is not present
RAS: Flags = 20
RAS: 0... .... = integrityCheckValue is not present
RAS: .0.. .... = transportQOS is not present
RAS: ..1. .... = willSupplyUUIEs is present
RAS: Flags = 80
RAS: 1... .... = canMapAlias = 1
RAS:
RAS: Flags = 00
RAS: 0... .... = No extension value(s) present in callIdentifier
RAS: Guid = 00000680000006806162636431323334
RAS: Flags = 00
RAS: 0... .... = Will supply UUIEs = 0
Receive ACF
----- H.225 Gatekeeper Registration, Admission and Status -----
RAS:
RAS: Flags = 2B
RAS: 0... .... = No extension value(s) present in RasMessage
RAS: RAS message = 10 (Admission Confirm)
RAS: .... ..1. = Extension value(s) present in admissionConfirm
RAS: .... ...1 = irrFrequency is present
RAS: Flags = 00
RAS: 0... .... = nonStandardData is not present
RAS: Request sequence number = 11
RAS: Band width = 1280
RAS:
RAS: Flags = 00
RAS: 0... .... = No extension value(s) present in callModel
RAS: Call model = 0 (Direct)
RAS:
RAS: ..0. .... = No extension value(s) present in destCallSignalAddress
RAS: destCallSignalAddress = 0 (IP address)
RAS: IP = 135.119.55.170
RAS: Port = 1720
RAS: IrrFrequency = 239
RAS:
RAS: Flags = 28
RAS: 0... .... = Extension index format
RAS: Number of extension = 21
RAS: .... ...0 = destinationInfo is not present
RAS: Flags = 00
RAS: 0... .... = destExtraCallInfo is not present
RAS: .0.. .... = destinationType is not present
RAS: ..0. .... = remoteExtensionAddress is not present
RAS: ...0 .... = alternateEndpoints is not present
RAS: .... 0... = tokens is not present
RAS: .... .0.. = cryptoTokens is not present
RAS: .... ..0. = integrityCheckValue is not present
RAS: .... ...0 = transportQOS is not present
RAS: Flags = C0
RAS: 1... .... = willRespondToIRR is present
RAS: .1.. .... = uuiesRequested is present
RAS: Flags = 01
RAS: 0... .... = willRespondToIRR = 0
RAS:
RAS: Flags = 02
RAS: 0... .... = No extension value(s) present in uuiesRequested
RAS: .0.. .... = Setup = 0
RAS: ..0. .... = Call proceeding = 0
RAS: ...0 .... = Connect = 0
RAS: .... 0... = Alerting = 0
RAS: .... .0.. = User Information = 0
RAS: .... ..1. = Release complete = 1
RAS: .... ...0 = Facility = 0
RAS: Flags = 00
RAS: 0... .... = Progress = 0
RAS: .0.. .... = Empty = 0
Send Setup
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 0680
H225: 0... .... .... .... = Message from originator
H225: .000 0110 1000 0000 = Call reference value = 1664
H225: Message type = 5 (Setup)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: ...0 1000 = Information transfer capability = 8 (Unrestricted digital information)
H225: Mode and rate flags = D0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...1 0000 = Information transfer rate = 16 (64 kbit/s)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 6
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225: Calling Party Number
H225: Information element identifier = 108
H225: Calling party number contents length = 5
H225: Type and numbering flags = 89
H225: 1... .... = Expected extension bit
H225: .000 .... = Type of number = 0 (Unknown)
H225: .... 1001 = Numbering plan ID = 9 (Private)
H225: Number digits flag = 33
H225: 0... .... = Expected extension bit
H225: Number digits = "3000"
H225:
H225: Called Party Number
H225: Information element identifier = 112
H225: Called party number contents length = 11
H225: Type and numbering flags = 89
H225: 1... .... = Expected extension bit
H225: .000 .... = Type of number = 0 (Unknown)
H225: .... 1001 = Numbering plan ID = 9 (Private)
H225: Call number flag = 35
H225: 0... .... = Expected extension bit
H225: Call number = "5088623456"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 145
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 00
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..0. .... = No extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 0 (Setup)
H225:
H225: Flags = F0
H225: 1... .... = Extension value(s) present in Setup
H225: .1.. .... = h245Address is present
H225: ..1. .... = sourceAddress is present
H225: ...1 .... = destinationAddress is present
H225: .... 0... = destCallSignalAddress is not present
H225: .... .0.. = destExtraCallInfo is not present
H225: .... ..0. = destExtraCRV is not present
H225: .... ...0 = callServices is not present
H225:
H225: Protocol id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.181
H225: Port = 53502
H225:
H225: Number of sourceAddress = 1
H225:
H225: Flags = 01
H225: 0... .... = No extension value(s) present in sourceAddress
H225: sourceAddress = 0 (E164)
H225: Length of e164 = 4
H225: E.164 = 3000
H225:
H225: Flags = 02
H225: 0... .... = No extension value(s) present in sourceInfo
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = Vendor is not present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in terminal
H225: Flags = 00
H225: 0... .... = nonStandardData is not present
H225: .0.. .... = MC = 0
H225: ..0. .... = Undefined node = 0
H225:
H225: Number of destinationAddress = 2
H225:
H225: Flags = 04
H225: 0... .... = No extension value(s) present in destinationAddress
H225: destinationAddress = 0 (E164)
H225: Length of e164 = 10
H225: E.164 = 5088623456
H225:
Receive Alerting
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 8680
H225: 1... .... .... .... = Message to originator
H225: .000 0110 1000 0000 = Call reference value = 1664
H225: Message type = 1 (Alerting)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 77
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 23
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 3 (Alerting)
H225: Flags = 80
H225: 1... .... = Extension values present in Alerting-UUIE
H225: .0.. .... = h245Address is not present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Destination information
H225: Flags = 22
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225:
H225: .... 0... = Extension length determinant
H225: Number of extension = 7
H225: ...1 .... = callIdentifier is present
H225: .... 0... = h245SecurityMode is not present
H225: .... .0.. = tokens is not present
H225: .... ..0. = cryptoTokens is not present
H225: .... ...0 = fastStart is not present
H225:
H225: Flags = C0
H225: 1... .... = Extension value(s) present in callIdentifier
H225: Guid = 11000000068000000680616263643132
H225:
H225: Flags = 33
H225: 0... .... = Extension length determinant
H225: Number of extension = 26
H225: .... ...1 = h4501SupplementaryService is present
H225: Flags = 34
H225: 0... .... = h245Tunneling is not present
H225: .0.. .... = h245Control is not present
H225: ..1. .... = nonStandardControl is present
H225: Number of h4501SupplementaryService = 0
H225: Flags = 00
H225: 0... .... = H245 tunneling = 0
H225: Number of nonStandardControl = 1
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in NonStandardIdentifier
H225: nonStandardIdentifier = 0 (Object)
H225: Data: 0 byte(s) of data
Send Route Control Ack
X->H
[00 14 00 e8 00 02 01 00 10 01 02 1e 09 00 01 00 39 00 03 00
a8 08]
Receive Connect
----- H.225 Call Signaling -----
H225:
H225: Protocol discriminator = 8
H225: Length of call reference = 2
H225: Call reference field = 8680
H225: 1... .... .... .... = Message to originator
H225: .000 0110 1000 0000 = Call reference value = 1664
H225: Message type = 7 (Connect)
H225:
H225: Bearer Capacity
H225: Information element identifier = 4
H225: Length of bearer capacity = 3
H225: Coding and capability flags = 88
H225: 1... .... = Expected extension bit
H225: .00. .... = Coding standard = 0 (CCITT standardized coding)
H225: ...0 1000 = Information transfer capability = 8 (Unrestricted digital information)
H225: Mode and rate flags = C0
H225: 1... .... = Expected extension bit
H225: .10. .... = Transfer mode = 2 (Packet mode)
H225: ...0 0000 = Information transfer rate = 0 (Used for packet mode calls)
H225: Layer 1 protocol flag = A5
H225: 1... .... = Expected extension bit
H225: .01. .... = Layer 1 identification = 1
H225: ...0 0101 = Layer 1 protocol = 5 (H.221 and H.242)
H225:
H225: Display
H225: Information element identifier = 40
H225: Display length = 7
H225: Display flag = 4C
H225: 0... .... = Expected extension bit
H225: Display = "Excel"
H225:
H225:
H225: ----User-User Information----
H225:
H225: Information element identifier = 126 (User-User)
H225: Length = 100
H225: Discriminator = 5 (X.208/X.209 (ASN.1))
H225:
H225: Flags = 22
H225: 0... .... = No extension values present in H323-UserInformation
H225: .0.. .... = user-data is not present
H225: ..1. .... = Extension values present in h323-uu-pdu
H225: ...0 .... = nonStandardData is not present
H225: .... 0... = No extension values present in h323-message-body
H225: h323-message = 2 (Connect)
H225: Flags = C0
H225: 1... .... = Extension values present in Connect-UUIE
H225: .1.. .... = h245Address is present
H225: Protocol Id = {0.0.8.2250.0.2}
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in h245Address
H225: h245Address = 0 (IP address)
H225: IP = 135.119.55.170
H225: Port = 2086
H225:
H225: Destination information
H225: Flags = 22
H225: 0... .... = No extension value(s) present in destinationInfo
H225: .0.. .... = nonStandardData is not present
H225: ..1. .... = Vendor is present
H225: ...0 .... = Gatekeeper is not present
H225: .... 0... = Gateway is not present
H225: .... .0.. = MCU is not present
H225: .... ..1. = Terminal is present
H225:
H225: .... ...0 = No extension value(s) present in vendor
H225: Flags = C0
H225: 1... .... = Product ID is present
H225: .1.. .... = Version ID is present
H225:
H225: ..0. .... = No extension value(s) present in vendor
H225: T.35 country code = 0x 9 (Australia)
H225: T.35 extension = 0
H225: Manufacture code = 0x 3D (?)
H225: Product Id = Equivalence OpenPhone<0000>
H225: Version Id = 1.2.0<0000>
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in terminal
H225: .0.. .... = nonStandardData is not present
H225: ..0. .... = MC = 0
H225: ...0 .... = Undefined node = 0
H225: Conference id = 00000680000006803133353761636466
H225:
H225: Flags = 0D
H225: 0... .... = Extension length determinant
H225: Number of extension = 7
H225: .... ...1 = callIdentifier is present
H225: Flags = 0C
H225: 0... .... = h245SecurityMode is not present
H225: .0.. .... = tokens is not present
H225: ..0. .... = cryptoTokens is not present
H225: ...0 .... = fastStart is not present
H225: Length of callIdentifier = 17
H225:
H225: Flags = 00
H225: 0... .... = No extension value(s) present in callIdentifier
H225: Guid = 00000680000006806162636431323334
H225:
H225: Flags = 01
H225: 0... .... = Extension length determinant
H225: Number of extension = 1
H225: .... ...1 = h4501SupplementaryService is present
H225: Flags = 00
H225: 0... .... = h245Tunneling is not present
H225: .0.. .... = h245Control is not present
H225: ..0. .... = nonStandardControl is not present
H225: Number of h4501SupplementaryService = 0
H225: Flags = 80
H225: 1... .... = H245 tunneling = 1
H225:
Send Call Processing Event of Answer
X->H
[00 0d 00 2e 00 08 01 00 01 0d 03 00 a8 08 20]
Send Request Terminal Capabilities Set
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 330
H245: Flags = 02
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 2 (Terminal Capability Set)
H245:
H245: Flags = 70
H245: 0... .... = No extension value(s) present in terminalCapabilitySet
H245: .1.. .... = multiplexCapability is present
H245: ..1. .... = capabilityTable is present
H245: ...1 .... = capabilityDescriptors is present
H245: Sequence number = 1
H245: Protocol id = {0.0.0.0.0.8}
H245:
H245: Flags = 80
H245: 1... .... = Extension value(s) present in MultiplexCapability
H245: .0.. .... = Choice value is 6 bits long
H245: Multiplex capability = 0 (H2250 Capability)
H245: Flags = 00
H245: 0... .... = No extension value(s) present in h2250Capability
H245: Maximum audio delay jitter = 60 (ms)
H245:
H245: *** Receive Multipoint Capability ***
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in receive multipoint capability
H245: .0.. .... = Multicast capability is OFF
H245: ..0. .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** Transmit Multipoint Capability ***
H245:
H245: .0.. .... = No extension value(s) present in transmit multipoint capability
H245: ..0. .... = Multicast capability is OFF
H245: ...0 .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** Receive and Transmit Multipoint Capability ***
H245:
H245: .0.. .... = No extension value(s) present in receive and transmit multipoint capability
H245: ..0. .... = Multicast capability is OFF
H245: ...0 .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** MC Capability ***
H245:
H245: .0.. .... = No extension value(s) present in mcCapability
H245: ..0. .... = Centralized Conference MC is OFF
H245: ...0 .... = Decentralized Conference MC is OFF
H245:
H245: .... 0... = RTCP video control capability is OFF
H245:
H245: *** Media Packetization Capability ***
H245:
H245: .... .0.. = No extension value(s) present in MediaPacketizationCapability
H245: .... ..0. = H261A video packetization is OFF
H245:
H245: *** Capability Table ***
H245:
H245: Number of capability table entry = 29
H245:
H245: Capability Table Entry Set #1
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 1
H245: Flags = 28
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 5 (Transmit audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 3 (G.711 ulaw 64k)
H245: Value = 20
H245:
H245: Capability Table Entry Set #2
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 2
H245: Flags = 20
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 4 (Receive audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 3 (G.711 ulaw 64k)
H245: Value = 20
H245:
H245: Capability Table Entry Set #3
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 3
H245: Flags = 28
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 5 (Transmit audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 1 (G.711 alaw 64k)
H245: Value = 20
H245:
H245: Capability Table Entry Set #4
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 4
H245: Flags = 20
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 4 (Receive audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 1 (G.711 alaw 64k)
H245: Value = 20
H245:
H245: Capability Table Entry Set #5
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 5
H245: Flags = 2A
H245: 0... .... = No extension value(s) present in Capability
Receive Request Terminal Capabilities Set
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 194
H245: Flags = 02
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 2 (Terminal Capability Set)
H245:
H245: Flags = 70
H245: 0... .... = No extension value(s) present in terminalCapabilitySet
H245: .1.. .... = multiplexCapability is present
H245: ..1. .... = capabilityTable is present
H245: ...1 .... = capabilityDescriptors is present
H245: Sequence number = 1
H245: Protocol id = {0.0.8.245.0.3}
H245:
H245: Flags = 80
H245: 1... .... = Extension value(s) present in MultiplexCapability
H245: .0.. .... = Choice value is 6 bits long
H245: Multiplex capability = 0 (H2250 Capability)
H245: Flags = 80
H245: 1... .... = Extension value(s) present in h2250Capability
H245: Maximum audio delay jitter = 50 (ms)
H245:
H245: *** Receive Multipoint Capability ***
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in receive multipoint capability
H245: .0.. .... = Multicast capability is OFF
H245: ..0. .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** Transmit Multipoint Capability ***
H245:
H245: .0.. .... = No extension value(s) present in transmit multipoint capability
H245: ..0. .... = Multicast capability is OFF
H245: ...0 .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** Receive and Transmit Multipoint Capability ***
H245:
H245: .0.. .... = No extension value(s) present in receive and transmit multipoint capability
H245: ..0. .... = Multicast capability is OFF
H245: ...0 .... = Multi unicast conference is OFF
H245:
H245: Media Distribution Capability #1
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaDistributionCapability
H245: .0.. .... = centralizedData is not present
H245: ..0. .... = distributedData is not present
H245: ...0 .... = Centralized control is OFF
H245: .... 0... = Distributed control is OFF
H245: .... .0.. = Centralized audio is OFF
H245: .... ..0. = Distributed audio is OFF
H245: .... ...0 = Centralized video is OFF
H245: Flags = 00
H245: 0... .... = Distributed video is OFF
H245:
H245: *** MC Capability ***
H245:
H245: .0.. .... = No extension value(s) present in mcCapability
H245: ..0. .... = Centralized Conference MC is OFF
H245: ...0 .... = Decentralized Conference MC is OFF
H245:
H245: .... 0... = RTCP video control capability is OFF
H245:
H245: *** Media Packetization Capability ***
H245:
H245: .... .0.. = No extension value(s) present in MediaPacketizationCapability
H245: .... ..0. = H261A video packetization is OFF
H245: .... ...0 = Extension index format
H245: Number of extension = 4
H245: .... ..0. = transportCapability is not present
H245: .... ...0 = redundancyEncodingCapability is not present
H245: Flags = C0
H245: 1... .... = logicalChannelSwitchingCapability is present
H245: .1.. .... = t120DynamicPortCapability is present
H245: Flags = 00
H245: 0... .... = Logical channel switching capability is OFF
H245: Flags = 00
H245: 0... .... = T120 dynamic port capability is OFF
H245:
H245: *** Capability Table ***
H245:
H245: Number of capability table entry = 10
H245:
H245: Capability Table Entry Set #1
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 1
H245: Flags = 20
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 4 (Receive audio capability)
H245: .... .0.. = No extension value(s) present in AudioCapability
H245: Audio capability = 0 (Non standard)
H245: nonStandardIdentifier = 1 (H221 Non Standard)
H245: T.35 country code = 0x 9 (Australia)
H245: T.35 extension = 0
H245: Manufacture code = 0x 3D (?)
H245: Data: 6 byte(s) of data
H245:
H245: Capability Table Entry Set #2
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 2
H245: Flags = 24
H245: 0... .... = No extension value(s) present in Capability
H245: Capability = 4 (Receive audio capability)
H245: .... .1.. = Extension value(s) present in AudioCapability
H245: .... ..0. = Extension index format
H245: Audio capability = 3 (GSM full rate)
H245: .... .0.. = No extension value(s) present in GSMAudioCapability
H245: Audio unit size = 4
H245: Flags = 00
H245: 0... .... = Confort noise
H245: .0.. .... = Scrambled
H245:
H245: Capability Table Entry Set #3
H245: ..0. .... = capability is not present
H245: Capability table entry number = 58881
H245:
H245: Capability Table Entry Set #4
H245: Flags = 80
H245: 1... .... = capability is present
H245: Capability table entry number = 3
Send Request Master Slave Determination
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 11
H245: Flags = 01
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 1 (Master Slave Determination)
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in MasterSlaveDetermination
H245: Terminal type = 50
H245: Status determination number = 16761311
Receive Request Master Slave Determination
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 11
H245: Flags = 01
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 1 (Master Slave Determination)
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in MasterSlaveDetermination
H245: Terminal type = 50
H245: Status determination number = 13961701
Send Response Terminal Capabilities Set
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 7
H245: Flags = 21
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 3 (Terminal Capability Set Ack)
H245: .0.. .... = No extension value(s) present in TerminalCapabilitySetAck
H245: Sequence number = 1
Receive Response Terminal Capabilities Set
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 7
H245: Flags = 21
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 3 (Terminal Capability Set Ack)
H245: .0.. .... = No extension value(s) present in TerminalCapabilitySetAck
H245: Sequence number = 1
Send Response Master Slave Determination
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 6
H245: Flags = 20
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 1 (Master Slave Determination Ack)
H245: .0.. .... = No extension value(s) present in MasterSlaveDeterminationAck
H245: Decision = 0 (Master)
Receive Response Master Slave Determination
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 6
H245: Flags = 20
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 1 (Master Slave Determination Ack)
H245: .0.. .... = No extension value(s) present in MasterSlaveDeterminationAck
H245: Decision = 1 (Slave)
Receive Request Open Logical Channel
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 24
H245: Flags = 03
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 3 (Open Logical Channel)
H245:
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in OpenLogicalChannel
H245: .0.. .... = reverseLogicalChannelParameters is not present
H245: Forward logical channel number = 100
H245:
H245: Flags = 0C
H245: 0... .... = No extension value(s) present in forwardLogicalChannelParameters
H245: .0.. .... = portNumber is not present
H245:
H245: ..0. .... = No extension value(s) present in dataType
H245: Data type = 3 (Audio data)
H245: .... ..0. = No extension value(s) present in audioData
H245: Audio capability = 3 (G.711 ulaw 64k)
H245: Value = 20
H245:
H245: Flags = 80
H245: 1... .... = Extension value(s) present in MultiplexParameters
H245: .0.. .... = Extension index format
H245: Multiplex parameters = 0 (H225 logical channel parameters)
H245:
H245: Flags = 0D
H245: 0... .... = No extension value(s) present in h2250LogicalChannelParameters
H245: .0.. .... = nonStandard is not present
H245: ..0. .... = associatedSessionID is not present
H245: ...0 .... = mediaChannel is not present
H245: .... 1... = mediaGuaranteedDelivery is present
H245: .... .1.. = mediaControlChannel is present
H245: .... ..0. = mediaControlGuaranteedDelivery is not present
H245: .... ...1 = silenceSuppression is present
H245: Flags = 00
H245: 0... .... = destination is not present
H245: .0.. .... = dynamicRTPPayloadType is not present
H245: ..0. .... = mediaPacketization is not present
H245: Session ID = 1
H245: Flags = 00
H245: 0... .... = Media guaranted delivery is OFF
H245:
H245: *** Media Control Channel ***
H245: .0.. .... = No extension value(s) present in mediaControlChannel(RTCP)
H245: Transport Address = 0 (Unicast address)
H245: ...0 .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... ...0 = No extension value(s) present in iPAddress
H245: Network = 135.119.55.170
H245: TSAP indentifier = 5001
H245: Flags = 80
H245: 1... .... = Silence suppression is ON
Send Response Open Logical Channel
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 27
H245: Flags = 22
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 5 (Open Logical Channel Ack)
H245:
H245: .1.. .... = Extension value(s) present in openLogicalChannelAck
H245: ..0. .... = reverseLogicalChannelParameters is not present
H245: Forward logical channel number = 100
H245:
H245: Flags = 04
H245: 0... .... = Extension index format
H245: Number of extension = 3
H245: .... ...0 = separateStack is not present
H245: Flags = 80
H245: 1... .... = forwardMultiplexAckParameters is present
H245: .0.. .... = encryptionSync is not present
H245: Flags = 1C
H245: 0... .... = No extension value(s) present in forwardMultiplexAckParameters
H245: .0.. .... = No extension value(s) present in H2250LogicalChannelAckParameters
H245: ..0. .... = nonStandard is not present
H245: ...1 .... = sessionID is present
H245: .... 1... = mediaChannel is present
H245: .... .1.. = mediaControlChannel is present
H245: .... ..0. = dynamicRTPPayloadType is not present
H245: Session ID = 1
H245: .... ...0 = No extension value(s) present in mediaChannel
H245: Transport Address = 0 (Unicast address)
H245: .0.. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... .0.. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.183
H245: TSAP indentifier = 14656
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaControlChannel (forward RTCP channel)
H245: Transport Address = 0 (Unicast address)
H245: ..0. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... ..0. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.183
H245: TSAP indentifier = 14657
Send Request Open Logical Channel
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 24
H245: Flags = 03
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 0 (Request)
H245:
H245: ...0 .... = No extension value(s) present in request
H245: Request type = 3 (Open Logical Channel)
H245:
H245:
H245: Flags = 00
H245: 0... .... = No extension value(s) present in OpenLogicalChannel
H245: .0.. .... = reverseLogicalChannelParameters is not present
H245: Forward logical channel number = 1763
H245:
H245: Flags = 0C
H245: 0... .... = No extension value(s) present in forwardLogicalChannelParameters
H245: .0.. .... = portNumber is not present
H245:
H245: ..0. .... = No extension value(s) present in dataType
H245: Data type = 3 (Audio data)
H245: .... ..0. = No extension value(s) present in audioData
H245: Audio capability = 3 (G.711 ulaw 64k)
H245: Value = 20
H245:
H245: Flags = 80
H245: 1... .... = Extension value(s) present in MultiplexParameters
H245: .0.. .... = Extension index format
H245: Multiplex parameters = 0 (H225 logical channel parameters)
H245:
H245: Flags = 05
H245: 0... .... = No extension value(s) present in h2250LogicalChannelParameters
H245: .0.. .... = nonStandard is not present
H245: ..0. .... = associatedSessionID is not present
H245: ...0 .... = mediaChannel is not present
H245: .... 0... = mediaGuaranteedDelivery is not present
H245: .... .1.. = mediaControlChannel is present
H245: .... ..0. = mediaControlGuaranteedDelivery is not present
H245: .... ...1 = silenceSuppression is present
H245: Flags = 00
H245: 0... .... = destination is not present
H245: .0.. .... = dynamicRTPPayloadType is not present
H245: ..0. .... = mediaPacketization is not present
H245: Session ID = 1
H245:
H245: *** Media Control Channel ***
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaControlChannel(RTCP)
H245: Transport Address = 0 (Unicast address)
H245: ..0. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... ..0. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.183
H245: TSAP indentifier = 14657
H245: Flags = 00
H245: 0... .... = Silence suppression is OFF
Receive Response Open Logical Channel
----- Control Protocol for Multimedia Communication -----
H245:
H245: Message length = 30
H245: Flags = 22
H245: 0... .... = No extension value(s) present in H.245 control message
H245: H.245 call control message type = 1 (Response)
H245:
H245: ...0 .... = No extension value(s) present in ResponseMessage
H245: Response = 5 (Open Logical Channel Ack)
H245:
H245: .1.. .... = Extension value(s) present in openLogicalChannelAck
H245: ..0. .... = reverseLogicalChannelParameters is not present
H245: Forward logical channel number = 1763
H245:
H245: Flags = 02
H245: 0... .... = Extension index format
H245: Number of extension = 2
H245: .... ...0 = separateStack is not present
H245: Flags = 80
H245: 1... .... = forwardMultiplexAckParameters is present
H245: .0.. .... = encryptionSync is not present
H245: Flags = 5C
H245: 0... .... = No extension value(s) present in forwardMultiplexAckParameters
H245: .1.. .... = Extension value(s) present in H2250LogicalChannelAckParameters
H245: ..0. .... = nonStandard is not present
H245: ...1 .... = sessionID is present
H245: .... 1... = mediaChannel is present
H245: .... .1.. = mediaControlChannel is present
H245: .... ..0. = dynamicRTPPayloadType is not present
H245: Session ID = 1
H245: .... ...0 = No extension value(s) present in mediaChannel
H245: Transport Address = 0 (Unicast address)
H245: .0.. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... .0.. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.170
H245: TSAP indentifier = 5000
H245: Flags = 00
H245: 0... .... = No extension value(s) present in mediaControlChannel (forward RTCP channel)
H245: Transport Address = 0 (Unicast address)
H245: ..0. .... = No extension value(s) present in UnicastAddress
H245: Unicast address = 0 (IP address)
H245: .... ..0. = No extension value(s) present in iPAddress
H245: Network = 135.119.55.170
H245: TSAP indentifier = 5001
H245:
H245: Flags = 01
H245: 0... .... = Extension index format
H245: Number of extension = 1
H245: .... ...1 = flowControlToZero is present
H245: Flags = 00
H245: 0... .... = Flow control to zero is OFF
