SS7 Card View

When you open the SS7 card view, you see the SS7 ID and the Stack ID. In front of the Stack ID is an addition sign, which indicates that at least one Link Set is configured on your card. Click the addition sign to open the tree under the Stack ID. You see all link sets and link IDs.

Query IP Addresses

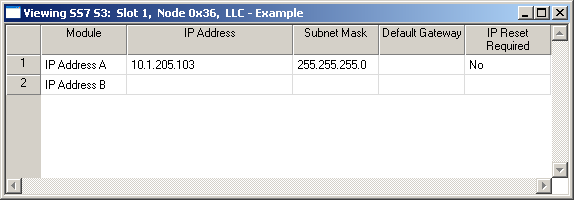

To view the IP information for the SS7 ports, in the monitoring mode of the node view, right click the SS7 Series 3 card and select IP address Information from the menu. IP Address A is Port A. IP Address B is Port B.

Block and Unblock CICs

You can block and unblock CICs from the Monitor Window, but the status shown here is the same whether the CIC is blocked locally or remotely.

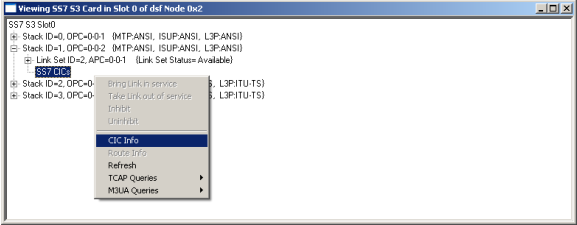

To get more detailed CIC information, from the SS7 card view, either right-click the SS7 CIC, or select the stack of interest and select Provisioning ®SS7® CIC Info.

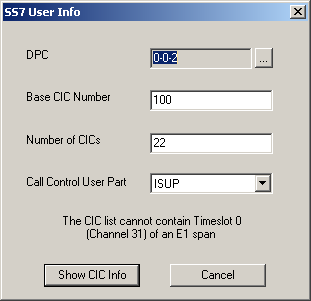

The SS7 User Info dialog box opens.

Enter the DPC & CIC info precisely as the SS7 card is configured and then click Show CIC Info.

.Now the CIC information is shown with specific block status information related to local and remote.
