Dialogic® Multi-Function Media I/O Plus Card - CSP-BIO-1400R
The Dialogic® Multi-Function Media I/O Plus card is required to provide Ethernet connectivity for the IP Network Interface Series 3 and DSP Series 2 Plus cards. This card connects to the IP Network Interface Series 2 and DSP Series 2 Plus cards through the chassis midplane.
The Multi-Function Media I/O Plus card provides Ethernet ports for the following six 10/100 Base-T Ethernet auto-negotiating signals.
• Two Ethernet control signals that are available for NFS, matrix connectivity, RTP, and redundancy
• Four Ethernet data signals
In the current release two ports are used:
DATA 0
DATA 1
In the current release, the control ports and link redundancy on the data ports are disabled. For backward compatibility the IP Address Assign API message binds the motherboard IP address to the data network - not the control network.
Future releases will include the following:
• Four Ethernet Ports connected to an unsecured public data network:
• Two Ethernet Ports connected the secured, Control network.
• Redundant port links
The Multi-Function Media I/O Plus card resides in the rear card slot of a CSP 2090, CSP 2110, or CSP 2040 chassis directly behind the corresponding IP Network Interface Series 2 or DSP Series 2 Plus card.
The part number, serial number, model number, and revision are located on the back of the board.
The Multi-Function Media I/O Plus card is designed to the following electrical, physical, and environmental specifications.
Electrical |
Specification |
---|---|
Supply Voltage, Vcc |
5.00V |
Supply Current, Vcc @ 5.0V |
1.0A (typical) |
Physical |
Specification |
---|---|
Height |
318.5 mm (12.54 in.) |
Depth |
105.2 mm (4.14 in) |
Width |
19.7 mm (0.775 in.) |
Environmental |
Specification |
---|---|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~C/min. |
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ |
Humidity - Operating |
5% to 85% |
Altitude |
Up to 4000 m (13,123 ft.) |
The Multi-Function Media Plus I/O card model number is listed below.
Product |
Model No. |
RoHS Model No. |
---|---|---|
Multi-Function Media Plus I/O |
Not Applicable |
CSP-BIO-1400R |
The products related to the Multi-Function Media I/O Plus card are listed below.
Product |
Model No. |
RoHS Model No. |
---|---|---|
DSP Series 2 Plus card with one module |
Not Applicable |
CSP-DSP-1410R |
DSP Series 2 Plus card with two modules |
Not Applicable |
CSP-DSP-1420R |

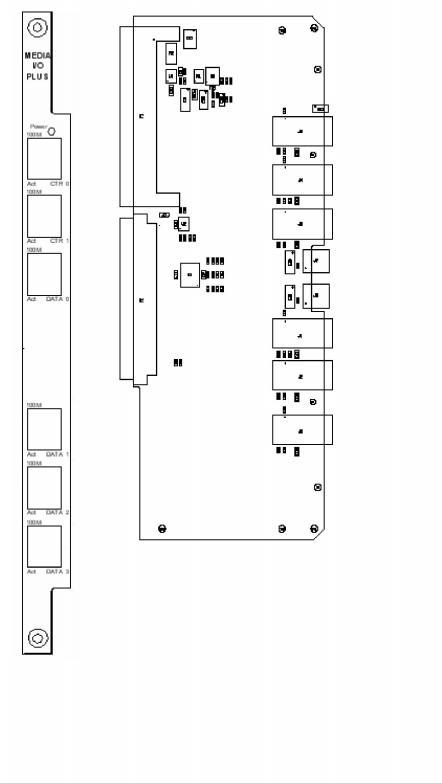

The front view shows the LEDs, push button switch, and Ethernet connectors.
The table below describes the LEDs as shown in the front view of the Multi-Function Media I/O Plus card.
Fault, Hreset LEDs/Reset Push Button |
Color/Status |
Description |
---|---|---|
Fault |
Off |
Reserved |
Hreset |
Green |
Indicates the I/O card is being reset. |
Reset |
Initiates a reset of the I/O card. |
|
Ethernet LEDs |
Color/Status |
Description |
Activity |
Green |
Indicates both RX (receive) and TX (transmit) activity (20ms on time) |
Off |
Indicates no RX or TX activity |
|
Col/FD (Collision/Duplex) |
Green |
Flashes when collision occurs in half duplex mode (20ms on time) Continuous indication when in full duplex mode Flashes (10 Hz) during continuous collisions |
Off |
Indicates no collisions |
|
LNK (Link) |
Green |
Flashes during auto-negotiation Continuous indication when a link is established Continuously flashes during network misconfiguration |
Off |
Indicates loopback |
|
100M (Speed) |
Yellow |
Indicates 100Base-T (100 Mbps) link established |
Flashes (0.4 sec.) with no link established |
||
Off |
10Base-T (10 Mbps) link not supported |
