Configuring the T-ONE Card

This procedure describes configuring the T-ONE card.

Before you begin

You must have a node view window open in configuration mode.

Information Source

Please refer to the T-ONE information contained in the SwitchKit user’s guides and the Developer’s Guide: Line Cards.

Configuring the T-ONE Card

The following steps explain the T-ONE card configuration.

1 To access the T-ONE card configuration dialog box, do one of the following:

• Select the T-ONE card in the node view. Go to the Configuration menu and select Card®Span Configuration.

• Right-click on the T1 card in the node view and select Span Configuration from the menu.

• Double-click the T-ONE card in the node view.

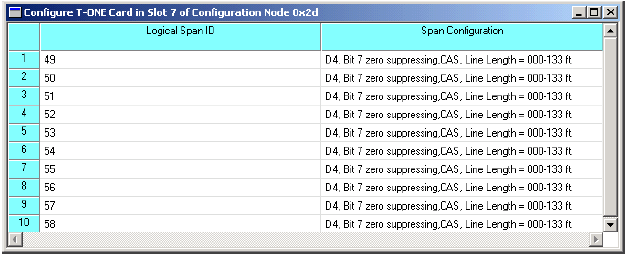

The Configure T-ONE Card... dialog box opens:

2 To configure the spans, highlight the range of spans you want to configure.

3 Right-click in the Span Configuration column and select Span Format Configuration from the menu.

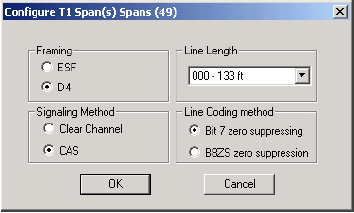

The next dialog box opens.

4 Specify the Framing, Signaling Method, Line Length, and Line Coding Method.

5 Click OK to close the dialog box. Your span configuration is now displayed in the T-ONE Card configuration table.

6 Click OK to close the T-ONE card configuration dialog box.

7 You can also configure all T1 spans at once. In the node view window right-click in the area around the slots and select Configure All T1 Spans from the pop-up menu. A message box pops up telling you that the configuration will not be applied to unassigned spans. Click OK and the Configure T1 Spans dialog box opens as shown in Step 3 of this procedure. Follow Steps 3 to 6 to Configure All T1 Spans.

Note

Configuration changes are not sent to the CSP until you select the menu: Configuration®Configure Through SwitchMgr ®Send Only Modified Configuration To Switch.
