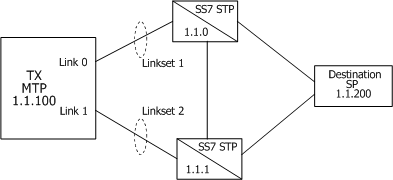

You may need to configure non-adjacent signaling points. A non-adjacent signaling point is a signaling point that is not directly connected to the MTP 3 layer but is accessible through a signaling point that is directly connected. The following illustration shows this type of configuration:
Follow this procedure to configure a non-adjacent signaling point:
|
Step |
Action |
|
1 |
Configure all links, linksets, and routes to adjacent signaling points as described in the sample configuration files. |
|
2 |
Add a route entry (direction down) for the non-adjacent SP, specifying its point code as the destination of the route. |
|
3 |
Add the route number for the non-adjacent SP to the linkset entry for each linkset that can be used to reach the non-adjacent destination. |
Since the non-adjacent SP in the illustration (point code 1.1.200) is accessible from both STPs, the route entry for 1.1.200 is added to the linkset definitions for both linksets 1 and 2. Since the STPs are cross connected, the route to each STP is also added to both linksets 1 and 2 since STP 1.1.1 can be reached directly through linkset 2 or indirectly through linkset 1 with STP 1.1.0.
The following example MTP configuration file configures non-adjacent signaling points:
<General Parameters>
#
#Link Parameters
#
LINK T1 # Link 0 to STP 1.1.0
LINK_SET 1
ADJACENT_DPC 1.1.0
END
#
LINK T2 # Link 1 to STP 1.1.1
LINK_SET 2
ADJACENT_DPC 1.1.1
END
#
#Routing Parameters
#
# Route UP from network to applications on this node
#
ROUTE 0
DPC 1.1.100 # this node
DIRECTION UP
END
#
ROUTE 1
DPC 1.1.0 # STP 1.1.0
END
#
ROUTE 2
DPC 1.1.1 # STP 1.1.1
END
#
ROUTE 3
DPC 1.1.200 # Route to non-adjacent 1.1.200
END
#
# Link set Parameters
#
LINK_SET_DESCRIPTOR 1
ADJACENT_DPC 1.1.0 # link set to STP 1.1.0
ROUTE_NUMBER 1
ROUTE_NUMBER 2
ROUTE_NUMBER 3
END
#
LINK_SET_DESCRIPTOR 2
ADJACENT_DPC 1.1.1 # link set to STP 1.1.1
ROUTE_NUMBER 1
ROUTE_NUMBER 2
ROUTE_NUMBER 3
END
