Collector

The Collector resource encapsulates a single instance of a digit collecting resource. This resource defines the source MediaStream for the collecting operation, the state of the collection process, and a digit mask used during digit detection.

XML Definition

<collector identifier="<identifier>" appid="<appid>"
    href=http://server/dialogicwebservice/mediacontrol/collectors/<identifier>
    streamidentifier="<stream identifier>"
    conferenceidentifier="<conference identifier>"
    digits="<digits>" cpa="<cpa>" cpa_mask="<cpa_mask>" />

</collector>

Collector Properties



Name

Description

Type

Input / Output

Optional / Mandatory

identifier

Unique identifier assigned to the specific instance of the resource. This identifier is used by the web service client when performing actions on the resource.

String

Output

N/A

appid

Unique application id included in the original HTTP POST creation process that is utilized by the web service such that clients only have access to resources that they created.

String

Output

N/A

href

An HTTP reference to the specific resource.

String

Output

N/A

streamidentifier

Unique identifier of the MediaStream that is being used for digit detection.

String

Input / Output

Mandatory
if the conference
identifier is not being set

conferenceidentifier

Unique identifier of the Conference that is being used for digit detection.

String

Input / Output

Mandatory
if the stream
identifier is not being set

digits

Changes the reporting of DTMF digit events. Under normal usage, standard is the preferred option.

Values: both, standard, long, no

Default: standard

String

Input / Output

Optional

cpa

Enables or disables reporting of Call Progress events described in the cpa_mask.

Values: yes, no.

Default: no

String

Input / Output

Optional

cpa_mask

A list of cpa events to be reported:

interrupt, ring, busy, dial, CNG, CED, 400, PVD, PAMD]

String

Input / Output

Mandatory if cpa is yes.


Interaction Diagram

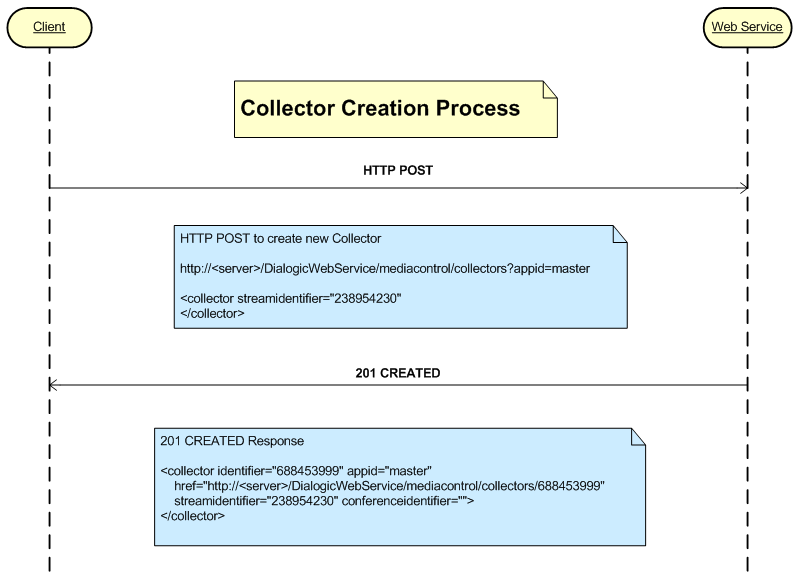

Collector Creation

The following diagram illustrates the Collector creation process.

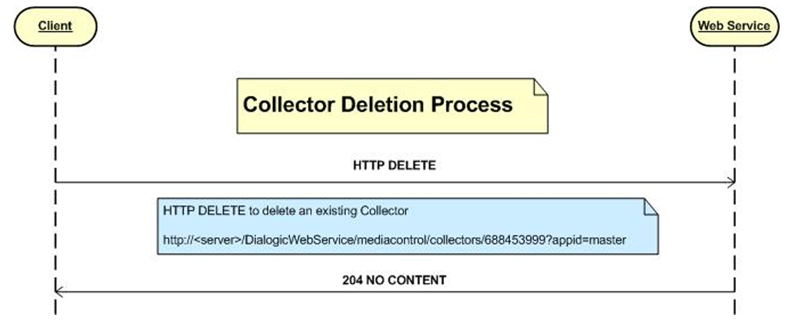

Collector Deletion

The following diagram illustrates the Collector deletion process.


Java Sample Code

    public void CreateCollector(String destIdentifier, IdentifierType type) {
        logger.info("Collector:: CreateCollector - Entered.");

        //Create a HttpURLConnection with the correct server
        //Send request to create collector and retrieve response
        String response = "";
        String identifierText = "streamidentifier";
        if (type == IdentifierType.CONFERENCE) {
            identifierText = "conferenceidentifier";
        }
        String requestBody = "<collector " +
                             identifierText +
                             "=\"" +
                             destIdentifier +
                             "\" " +
                             ">" +
                             "</collector>";
        HttpURLConnection connection = utils.SendHTTPRequest("http://" + MainSipServlet.WMSHost + ":81/DialogicWebService/mediacontrol/collectors",
                                                             "POST",
                                                             requestBody);
        if (connection != null) {
            response = utils.GetHTTPStringResponse(connection);
        }
        //Retrieve response codes
        int responseCode = 0;
        try {
            responseCode = connection.getResponseCode();
        } catch (IOException ex) {
            Logger.getLogger(Collector.class.getName()).log(Level.SEVERE, null, ex);
        }
        String responseMessage = "";
        try {
            responseMessage = connection.getResponseMessage();
        } catch (IOException ex) {
            Logger.getLogger(Collector.class.getName()).log(Level.SEVERE, null, ex);
        }
        String responseLocation = connection.getHeaderField("location");
       //close the connection
        connection.disconnect();
        //log results
        logger.info("Collector:: CreateCollector - Http response code =" + responseCode);
        logger.info("Collector:: CreateCollector - Http response message =" + responseMessage);
        logger.info("Collector:: CreateCollector - Http response location =" + responseLocation);
        if (responseCode == 201) {
            collectorRef = responseLocation;
            int index = collectorRef.lastIndexOf("/collectors", collectorRef.length());
            resourceId = collectorRef.substring(index+12);
            logger.info("Collector:: CreateCollector - Resource Id = " + resourceId);
            eventMonitor.AddCollector(this);
        }
        logger.info("Collector:: CreateCollector - Exited.");
    }
