Outbound SIP Call with Call Agent

Call Agent Mode (CAM) in the CSP provides dynamic switching of media streams on or off the CSP RTP channels with a minimal amount of SIP messages.

Prior to this feature, the CSP supported bearer on/off switching of Call Agent Mode for inbound calls only. The CSP can connect the inbound leg of a SIP call to a TDM network or to a DSP media service.

This functionality allows the caller to be connected to an operator in a PSTN network. It also allows the application of DSP services such as playing announcements to the calling (inbound) leg.

Bearer switching is based on a coupling and decoupling mechanism. Coupling associates a physical timeslot with a virtual timeslot to enable bearer-switched service. Decoupling dissociates a physical timeslot from a virtual timeslot to enable bearer-free switched service.

The bearer switching takes place whenever required with minimal interaction from the host.

With this feature, the CSP has the bearer on/off switching capability for outbound call legs too.

This capability is needed when the media services in the CSP (like DSP-2 card) or media transit path (like external TDM IVR or operator) is required for the called party.

Example: A directory assistance operator is located behind a TDM switch. The initial conversation between the operator and called party is bearer-switched through the CSP. Later, the operator drops out of the call flow while connecting the calling party and the called party bypassing the bearer path from the CSP.

The CSP can couple or decouple whenever there is any kind of DSP Service Request or Cancel. The call switches to bearer mode, if it is in bearer free mode, implicitly.

The CSP can connect to a TDM call (for example ISDN). The call switches to bearer mode implicitly. The host has to explicitly instruct the CSP if coupling is not required (for example Connecting two SIP calls in Call Agent Mode). The host sends a Connect or Connect with Data message to the incoming ISDN channel which connects the incoming ISDN call to the outgoing SIP call leg. The connect message is ACKED if both the calls are in the same mode - either bearer-switched or bearer-free.

To connect an inbound TDM call to the outbound SIP call, the host issues the Connect message to the incoming TDM call. Layer 4 of the outbound SIP call does not know when to couple. Because of this, the Outseize Control message is enhanced to instruct the coupling.

The Outseize Control (0x002C) is enhanced to support the following two TLVs within the Generic PPL ICB (0x001E):

The host should use the Channel Service TLV (set to 0 for bearer switched service) in the Outseize Control message to instruct coupling. If the host wants to provide the physical channel to be used for coupling, the host should use both the Channel Service TLV and the Call Agent Physical Channel ID TLV (includes the physical span/channel).

If the host is provides the physical span/channel, then the host should also provide the complete the NPDI information including the RTP source IP and port address. The Outseize Control message can only be used to instruct coupling - not decoupling. Decoupling is triggered when the TDM call connected to the outbound SIP call gets released.

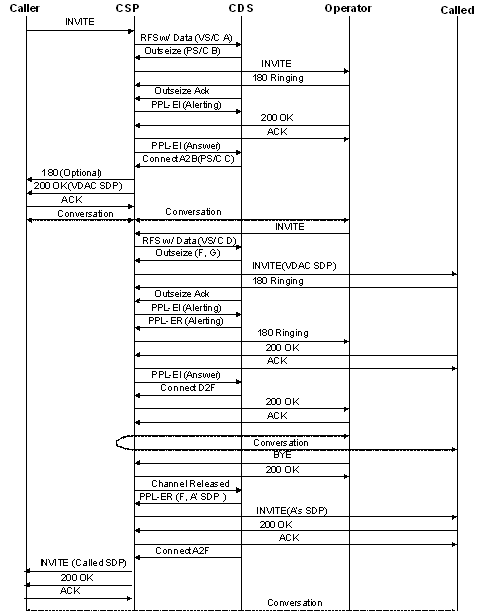

The following call shows an outbound SIP call leg connected to an incoming ISDN call.

The new PPL Event Request (0x0024) is used to generate a
RE-INVITE message to the SIP endpoint connected to the channel indicated in the channel AIB.

This PPL Event Request will work only if the call is in bearer-free mode or else it will NACK with 0x130C (Call is not in bearer-free mode.)

The new PPL Event Request is added to the SIP UA (0x00A7) component. When the PPL Event Request generates a RE-INVITE message, the 200 OK SIP message received from the other end having the SDP information will be reported to the host using the PPL Event Indication (0x0020) by the SIP UA component.

The data in the PPL Event Indication could be used within the subsequent Connect with Data (0x0005) message. The received PPL Event Request is ACKED if the data is valid.

The Outseize Control (0x002C) message is enhanced to support the following two TLVs within the Generic PPL ICB (0x001E):

Real-Time Transport Protocol. Supports transport of real-time data like interactive voice and video over packet-switched networks.

Session-Initiation Protocol. A signaling protocol used for establishing sessions in an IP network. A session could be a simple, two-way telephone call, or it could be a collaborative multi-media conference session.

See Time Division Multiplexing.

Digital Signal Processor

Public Switched Telephone Network

See Integrated Voice Response.

See Integrated Services Digital Network.

Call processing layer of the CSP.

Outgoing call setup during real-time call processing on a specific channel.

See Programmable Protocol Language.

See Information Control Block.

Tag-Length-Value block. A standardized block that allows data to inserted in a standard way into API messages.

Network Protocol Data Intelligence. Also called “Interworking,” it is a software product that operates within Excel’s Call Control (Layer 4) and Services (Layer 5) call processing layers. NPDI is meant to enhance Excel’s call processing product offering by allowing call processing layers (specifically Layers 4 and 5) to perform advanced analysis, generation, and conversion of Network Signaling (NS) Layer 3 information.

Internet Protocol. Part of the TCP/IP family of protocols used to route messages and tracks the addresses of nodes.

A condition that, when met, drives a state machine from one state to another. A condition that drives a Component out of its current state by invoking an associated primitive.

ICB Type	0x03 (Extended Data)
ICB ID	0x001E
Data Length (2 bytes)	Variable
Number of TLVs (2bytes)	Variable
Tag	TLV 1 Tag
Length	TLV 1 Length
Value	TLV 1 Value
:	TLV n Tag
:	TLV n Length
:	TLV n Value
TLVs	0x0116 Channel Service 0x011A Call Agent Physical Channel ID
