PPL Event Request for RE-INVITE Message
Overview
This section includes a description of the feature, call flows, and the PPL changes to support the feature.
Description
This feature allows the CSP to support the RE-INVITE message for a Call Agent Mode call in bearer-free mode using PPL Event Request (0x0024). This PPL Event Request generates a Re-INVITE regardless of the call direction: incoming or outgoing.
This PPL Event Request will work only if the call is in bearer-free mode or else it will NACK with a value 0x130C (Call is not in bearer-free mode.)
Call Flows
Third Party Connected to Called Party

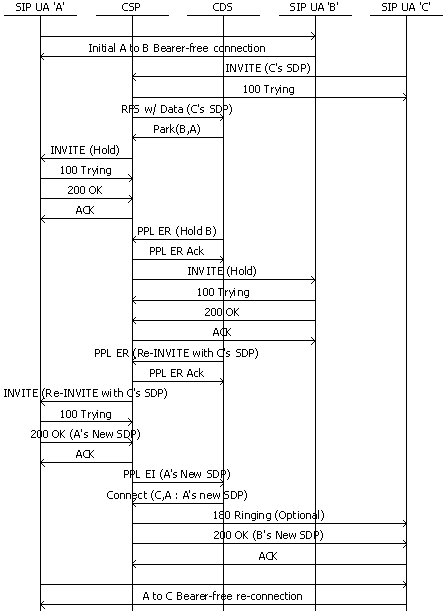

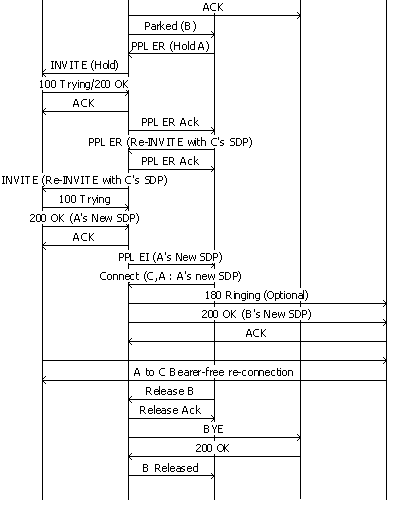

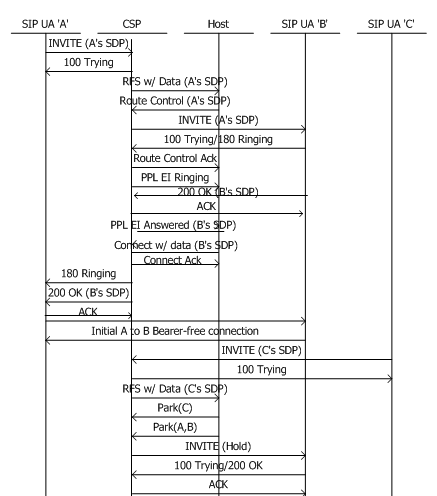

The call flow below shows a scenario where the initial conversation between SIP endpoints (A/B) is put on hold and a third party (C) is connected to the called party of the initial conversation (B). The call flow begins below and continues on the next page.
API Message
X->H
[01 1d 00 2d 00 08 0c 00 01 0d 03 00 64 0c 00 33 01 03 00 33
01 09 00 10 27 4e 00 02 00 05 27 7e 00 03 08 00 00 29
19 00 06 33 35 37 35 31 00 29 1b 00 0b 31 30 2e 31 30
2e 31 2e 31 34 00 29 1c 00 04 00 00 13 c4 29 23 00 06
32 30 35 39 37 00 29 25 00 0a 31 30 2e 31 30 2e 31 2e
32 00 29 26 00 04 00 00 13 c4 29 2d 00 06 32 30 35 39
37 00 29 2f 00 0a 31 30 2e 31 30 2e 31 2e 32 00 29 30
00 04 00 00 13 c4 29 33 00 01 01 27 18 00 08 02 00 00
00 05 20 59 70 27 17 00 06 02 00 05 35 75 10 29 ff 00
75 2a 0e 00 04 0a 0a 01 02 2a 01 00 69 2a 03 00 01 00
2a 07 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 02
2a 09 00 01 02 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a
08 00 02 00 01 2a 09 00 01 01 2a 0b 00 04 00 00 1f 40
2a 02 00 13 2a 08 00 02 00 16 2a 09 00 01 16 2a 0b 00
04 00 00 1f 40 2a 02 00 13 2a 08 00 02 01 65 2a 09 00
01 32 2a 0b 00 04 00 00 1f 40 29 16 00 01 01]
H->X
[00 0c 00 2d 00 08 0c 00 01 0d 03 00 64 0c]
H->X
[00 0c 00 2d 00 08 0c 00 01 0d 03 00 64 0c]
H->X
[01 40 00 e8 00 00 0c 00 01 29 02 ff fe 02 03 00 1e 00
19 00 04 00 13 00 02 00 08 00 08 00 02 00 71 00 0f 00
01 0b 00 71 00 02 00 00 03 00 33 01 11 00 11 27 4e 00
02 00 05 27 7e 00 03 08 00 00 29 19 00 06 33 35 37 35
31 00 29 1b 00 0b 31 30 2e 31 30 2e 31 2e 31 34 00 29
1c 00 04 00 00 13 c4 29 23 00 06 32 30 35 39 37 00 29
25 00 0a 31 30 2e 31 30 2e 31 2e 32 00 29 26 00 04 00
00 13 c4 29 2d 00 06 32 30 35 39 37 00 29 2f 00 0a 31
30 2e 31 30 2e 31 2e 32 00 29 30 00 04 00 00 13 c4 29
33 00 01 01 27 18 00 08 02 00 00 00 05 20 59 70 27 17
00 06 02 00 05 15 75 80 2a 00 00 75 2a 0e 00 04 0a 0a
01 02 2a 01 00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f
40 2a 02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b
00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09
00 01 01 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00
02 00 16 2a 09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02
00 13 2a 08 00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00
00 1f 40 29 16 00 01 01 2a 0e 00 04 0a 0a 01 02]
X->H
[00 14 00 e8 00 00 0c 00 10 01 02 1e 09 00 01 00 39 00 03 00
64 0d]
X->H
[00 11 00 43 00 0a 0c 00 01 0d 03 00 64 0d 00 a7 00 24 00]
H->X
[00 05 00 43 00 0a 0c]
H->X
[00 05 00 43 00 0a 0c]
X->H
[00 91 00 43 00 0b 0c 00 01 0d 03 00 64 0d 00 a7 00 20 01 03
00 33 00 7b 00 01 29 ff 00 75 2a 0e 00 04 0a 0a 01 0e
2a 01 00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f 40 2a
02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04
00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01
01 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00
16 2a 09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02 00 13
2a 08 00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00 00 1f
40]
H->X
[00 05 00 43 00 0b 0c]
H->X
[00 05 00 43 00 0b 0c]
H->X
[00 9f 00 05 00 00 0c 00 02 0d 03 00 64 0c 0d 03 00 64
0d 01 02 03 00 1e 00 07 00 01 01 16 00 01 01 03 00 33
00 7b 00 01 2a 00 00 75 2a 0e 00 04 0a 0a 01 0e 2a 01
00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f 42 2a 02 00
13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04 00 00
1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01 01 2a
0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 16 2a
09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08
00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00 00 1f 40]
X->H
[00 07 00 05 00 00 0c 00 10]
X->H
[01 1b 00 2d 00 09 0c 00 01 0d 03 00 64 0e 00 33 01 03 00 33
01 07 00 10 27 4e 00 02 00 05 27 7e 00 03 08 00 00 29
19 00 06 32 30 35 39 37 00 29 1b 00 0a 31 30 2e 31 30
2e 31 2e 32 00 29 1c 00 04 00 00 13 c4 29 23 00 05 38
33 32 33 00 29 25 00 0b 31 30 2e 31 30 2e 31 2e 32 39
00 29 26 00 04 00 00 13 c4 29 2d 00 05 38 33 32 33 00
29 2f 00 0b 31 30 2e 31 30 2e 31 2e 32 39 00 29 30 00
04 00 00 13 c4 29 33 00 01 01 27 18 00 07 02 00 00 00
04 83 23 27 17 00 06 02 00 05 20 59 70 29 ff 00 75 2a
0e 00 04 0a 0a 01 1d 2a 01 00 69 2a 03 00 01 00 2a 07
00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 02 2a 09
00 01 02 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00
02 00 01 2a 09 00 01 01 2a 0b 00 04 00 00 1f 40 2a 02
00 13 2a 08 00 02 00 16 2a 09 00 01 16 2a 0b 00 04 00
00 1f 40 2a 02 00 13 2a 08 00 02 01 65 2a 09 00 01 32
2a 0b 00 04 00 00 1f 40 29 16 00 01 01]
H->X
[00 0c 00 2d 00 09 0c 00 01 0d 03 00 64 0e]
H->X
[00 0c 00 2d 00 09 0c 00 01 0d 03 00 64 0e]
H->X
[00 11 00 bf 00 00 0c 00 02 0d 03 00 64 0e 0d 03 00 64
0e]
X->H
[00 07 00 bf 00 00 0c 00 10]
H->X
[00 11 00 bf 00 00 0c 00 02 0d 03 00 64 0c 0d 03 00 64
0d]
X->H
[00 07 00 bf 00 00 0c 00 10]
X->H
[00 0e 00 42 00 64 0c 00 01 0d 03 00 64 0d 04 00]
H->X
[00 1d 00 44 00 00 0c 00 01 0d 03 00 64 0c 00 a7 00 1e
01 03 00 33 00 07 00 01 27 b3 00 01 03]
H->X
[00 05 00 42 00 64 0c]
H->X
[00 05 00 42 00 64 0c]
X->H
[00 07 00 44 00 00 0c 00 10]
H->X
[00 91 00 44 00 00 0c 00 01 0d 03 00 64 0c 00 a7 00 24
01 03 00 33 00 7b 00 01 2a 00 00 75 2a 0e 00 04 0a 0a
01 1d 2a 01 00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f
40 2a 02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b
00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09
00 01 01 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00
02 00 16 2a 09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02
00 13 2a 08 00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00
00 1f 40]
X->H
[00 07 00 44 00 00 0c 00 10]
X->H
[00 91 00 43 00 0c 0c 00 01 0d 03 00 64 0c 00 a7 00 20 01 03
00 33 00 7b 00 01 29 ff 00 75 2a 0e 00 04 0a 0a 01 02
2a 01 00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f 40 2a
02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04
00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01
01 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00
16 2a 09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02 00 13
2a 08 00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00 00 1f
40]
H->X
[00 05 00 43 00 0c 0c]
H->X
[00 05 00 43 00 0c 0c]
H->X
[00 9f 00 05 00 00 0c 00 02 0d 03 00 64 0e 0d 03 00 64
0c 01 02 03 00 1e 00 07 00 01 01 16 00 01 01 03 00 33
00 7b 00 01 2a 00 00 75 2a 0e 00 04 0a 0a 01 02 2a 01
00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f 40 2a 02 00
13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04 00 00
1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01 01 2a
0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 16 2a
09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08
00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00 00 1f 40]
X->H
[00 07 00 05 00 00 0c 00 10]
H->X
[00 11 00 08 00 00 0c 00 02 0d 03 00 64 0d 0d 03 00 64
0d]
X->H
[00 07 00 08 00 00 0c 00 10]
X->H
[00 0c 00 49 00 0a 0c 00 01 0d 03 00 64 0d]
H->X
[00 05 00 49 00 0a 0c]
2
Printing all SIP messages
1 -RECEIVED From 10.10.1.2:5060 at 15995
INVITE sip:35751@10.10.1.14 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bK1FDA7D2876B0495394290D381FB3
389C
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
To: <sip:35751@10.10.1.14>
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 INVITE
Max-Forwards: 70
Content-Type: application/sdp
User-Agent: X-Lite release 1103m
Content-Length: 290
v=0
o=20597 722096328 722096343 IN IP4 10.10.1.2
s=X-Lite
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
2 -SENT To 10.10.1.2:5060 at 15995
SIP/2.0 100 Trying
To: <sip:35751@10.10.1.14>;tag=45103e7b
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 INVITE
Contact: 35751<sip:35751@10.10.1.47:5060>
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bK1FDA7D2876B0495394290D381FB3
389C
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
3 -SENT To 10.10.1.14:5060 at 15996
INVITE sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751<sip:35751@10.10.1.14:5060>
From: 20597<sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
Contact: 20597<sip:20597@10.10.1.47:5060>
User-Agent: Excel_CSP/83.10.75
Supported: timer
Session-Expires: 1800
Min-SE: 300
CSeq: 1 INVITE
Content-Type: application/sdp
Content-Length: 223
v=0
o=sip 1122578382 1122578382 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
4 -RECEIVED From 10.10.1.14:5060 at 15996
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 1 INVITE
Server: X-Lite release 1103m
Content-Length: 0
5 -RECEIVED From 10.10.1.14:5060 at 15996
SIP/2.0 180 Ringing
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 1 INVITE
Server: X-Lite release 1103m
Content-Length: 0
6 -RECEIVED From 10.10.1.2:5060 at 15998
7 -RECEIVED From 10.10.1.14:5060 at 15998
8 -RECEIVED From 10.10.1.29:5060 at 15999
9 -RECEIVED From 10.10.1.14:5060 at 16004
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 1 INVITE
Content-Type: application/sdp
Server: X-Lite release 1103m
Content-Length: 292
v=0
o=35751 292794390 292802031 IN IP4 10.10.1.14
s=X-Lite
c=IN IP4 10.10.1.14
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
10-SENT To 10.10.1.14:5060 at 16004
ACK sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751<sip:35751@10.10.1.14:5060>;tag=4107074591
From: 20597<sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 1 ACK
Content-Length: 0
11-RECEIVED From 10.10.1.2:5060 at 16008
12-RECEIVED From 10.10.1.14:5060 at 16008
13-SENT To 10.10.1.2:5060 at 16009
SIP/2.0 180 Ringing
To: <sip:35751@10.10.1.14>;tag=45103e7b
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 INVITE
Contact: 35751<sip:35751@10.10.1.47:5060>
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bK1FDA7D2876B0495394290D381FB3
389C
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
14-SENT To 10.10.1.2:5060 at 16009
SIP/2.0 200 OK
To: <sip:35751@10.10.1.14>;tag=45103e7b
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 INVITE
Contact: 35751<sip:35751@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uas
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bK1FDA7D2876B0495394290D381FB3
389C
User-Agent: Excel_CSP/83.10.75
Content-Type: application/sdp
Content-Length: 224
v=0
o=sip 1122578395 1122578395 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 10.10.1.14
t=0 0
m=audio 8002 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
15-RECEIVED From 10.10.1.2:5060 at 16009
ACK sip:35751@10.10.1.47:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bKDC857736F60944AEB97C9B1D843C
7181
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
To: <sip:35751@10.10.1.14>;tag=45103e7b
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 ACK
Max-Forwards: 70
Content-Length: 0
16-RECEIVED From 10.10.1.29:5060 at 16010
17-RECEIVED From 10.10.1.29:5060 at 16016
INVITE sip:20597@10.10.1.2 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK2017BD3E5D074025B27B107065B
31D99
From: sathia <sip:8323@10.10.1.29>;tag=851025480
To: <sip:20597@10.10.1.2>
Contact: <sip:8323@10.10.1.29:5060>
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 INVITE
Max-Forwards: 70
Content-Type: application/sdp
User-Agent: X-Lite release 1103m
Content-Length: 293
v=0
o=8323 1402407484 1402407500 IN IP4 10.10.1.29
s=X-Lite
c=IN IP4 10.10.1.29
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
18-SENT To 10.10.1.29:5060 at 16016
SIP/2.0 100 Trying
To: <sip:20597@10.10.1.2>;tag=33963e90
From: sathia <sip:8323@10.10.1.29>;tag=851025480
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 INVITE
Contact: 20597<sip:20597@10.10.1.47:5060>
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK2017BD3E5D074025B27B107065B
31D99
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
19-SENT To 10.10.1.29:5060 at 16017
SIP/2.0 180 Ringing
To: <sip:20597@10.10.1.2>;tag=33963e90
From: sathia <sip:8323@10.10.1.29>;tag=851025480
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 INVITE
Contact: 20597<sip:20597@10.10.1.47:5060>
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK2017BD3E5D074025B27B107065B
31D99
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
20-RECEIVED From 10.10.1.2:5060 at 16018
21-RECEIVED From 10.10.1.14:5060 at 16018
22-RECEIVED From 10.10.1.29:5060 at 16020
23-SENT To 10.10.1.14:5060 at 16022
INVITE sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 2 INVITE
User-Agent: Excel_CSP/83.10.75
Contact: 20597<sip:20597@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uac
Min-SE: 300
Content-Type: application/sdp
Content-Length: 221
v=0
o=sip 1122578408 1122578408 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 0.0.0.0
t=0 0
m=audio 8000 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
24-RECEIVED From 10.10.1.14:5060 at 16022
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 2 INVITE
Server: X-Lite release 1103m
Content-Length: 0
25-RECEIVED From 10.10.1.14:5060 at 16022
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 2 INVITE
Content-Type: application/sdp
Server: X-Lite release 1103m
Content-Length: 292
v=0
o=35751 292794390 292802031 IN IP4 10.10.1.14
s=X-Lite
c=IN IP4 10.10.1.14
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
26-SENT To 10.10.1.14:5060 at 16022
ACK sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 2 ACK
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
27-SENT To 10.10.1.2:5060 at 16022
INVITE sip:20597@10.10.1.2:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
From: <sip:35751@10.10.1.14>;tag=45103e7b
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35319 INVITE
User-Agent: Excel_CSP/83.10.75
Contact: 35751<sip:35751@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uac
Min-SE: 300
Content-Type: application/sdp
Content-Length: 221
v=0
o=sip 1122578408 1122578408 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 0.0.0.0
t=0 0
m=audio 8002 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
28-RECEIVED From 10.10.1.2:5060 at 16022
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.10.1.47
From: <sip:35751@10.10.1.14>;tag=45103e7b
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35319 INVITE
Server: X-Lite release 1103m
Content-Length: 0
29-RECEIVED From 10.10.1.2:5060 at 16022
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: <sip:35751@10.10.1.14>;tag=45103e7b
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35319 INVITE
Content-Type: application/sdp
Server: X-Lite release 1103m
Content-Length: 290
v=0
o=20597 722096328 722096343 IN IP4 10.10.1.2
s=X-Lite
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
30-SENT To 10.10.1.2:5060 at 16022
ACK sip:20597@10.10.1.2:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
From: <sip:35751@10.10.1.14>;tag=45103e7b
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35319 ACK
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
31-SENT To 10.10.1.2:5060 at 16026
INVITE sip:20597@10.10.1.2:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
From: <sip:35751@10.10.1.14>;tag=45103e7b
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35320 INVITE
User-Agent: Excel_CSP/83.10.75
Contact: 35751<sip:35751@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uac
Min-SE: 300
Content-Type: application/sdp
Content-Length: 224
v=0
o=sip 1122578412 1122578412 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 10.10.1.29
t=0 0
m=audio 8000 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
32-RECEIVED From 10.10.1.2:5060 at 16026
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.10.1.47
From: <sip:35751@10.10.1.14>;tag=45103e7b
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35320 INVITE
Server: X-Lite release 1103m
Content-Length: 0
33-RECEIVED From 10.10.1.2:5060 at 16026
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: <sip:35751@10.10.1.14>;tag=45103e7b
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35320 INVITE
Content-Type: application/sdp
Server: X-Lite release 1103m
Content-Length: 290
v=0
o=20597 722096328 722096343 IN IP4 10.10.1.2
s=X-Lite
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
34-SENT To 10.10.1.2:5060 at 16026
ACK sip:20597@10.10.1.2:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
From: <sip:35751@10.10.1.14>;tag=45103e7b
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35320 ACK
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
35-SENT To 10.10.1.29:5060 at 16027
SIP/2.0 200 OK
To: <sip:20597@10.10.1.2>;tag=33963e90
From: sathia <sip:8323@10.10.1.29>;tag=851025480
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 INVITE
Contact: 20597<sip:20597@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uas
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK2017BD3E5D074025B27B107065B
31D99
User-Agent: Excel_CSP/83.10.75
Content-Type: application/sdp
Content-Length: 223
v=0
o=sip 1122578413 1122578413 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
36-RECEIVED From 10.10.1.29:5060 at 16027
ACK sip:20597@10.10.1.47:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK93925BBE56494E7A8AD16EDBDB4
711EB
From: sathia <sip:8323@10.10.1.29>;tag=851025480
To: <sip:20597@10.10.1.2>;tag=33963e90
Contact: <sip:8323@10.10.1.29:5060>
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 ACK
Max-Forwards: 70
Content-Length: 0
37-RECEIVED From 10.10.1.2:5060 at 16028
38-RECEIVED From 10.10.1.14:5060 at 16029
39-RECEIVED From 10.10.1.29:5060 at 16030
40-SENT To 10.10.1.14:5060 at 16031
BYE sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 3 BYE
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
41-RECEIVED From 10.10.1.14:5060 at 16031
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 3 BYE
Server: X-Lite release 1103m
Content-Length: 0
42-RECEIVED From 10.10.1.2:5060 at 16039
Third Party Connected to Calling Party
The call flow below shows a scenario where the initial conversation between two SIP endpoints (A/B) is put on hold and a third party (C) is connected to the calling party of the initial conversation (A).
API Message
X->H
[01 1d 00 2d 00 08 0c 00 01 0d 03 00 64 0c 00 33 01 03 00 33
01 09 00 10 27 4e 00 02 00 05 27 7e 00 03 08 00 00 29
19 00 06 33 35 37 35 31 00 29 1b 00 0b 31 30 2e 31 30
2e 31 2e 31 34 00 29 1c 00 04 00 00 13 c4 29 23 00 06
32 30 35 39 37 00 29 25 00 0a 31 30 2e 31 30 2e 31 2e
32 00 29 26 00 04 00 00 13 c4 29 2d 00 06 32 30 35 39
37 00 29 2f 00 0a 31 30 2e 31 30 2e 31 2e 32 00 29 30
00 04 00 00 13 c4 29 33 00 01 01 27 18 00 08 02 00 00
00 05 20 59 70 27 17 00 06 02 00 05 35 75 10 29 ff 00
75 2a 0e 00 04 0a 0a 01 02 2a 01 00 69 2a 03 00 01 00
2a 07 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 02
2a 09 00 01 02 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a
08 00 02 00 01 2a 09 00 01 01 2a 0b 00 04 00 00 1f 40
2a 02 00 13 2a 08 00 02 00 16 2a 09 00 01 16 2a 0b 00
04 00 00 1f 40 2a 02 00 13 2a 08 00 02 01 65 2a 09 00
01 32 2a 0b 00 04 00 00 1f 40 29 16 00 01 01]
H->X
[00 0c 00 2d 00 08 0c 00 01 0d 03 00 64 0c]
H->X
[00 0c 00 2d 00 08 0c 00 01 0d 03 00 64 0c]
H->X
[01 40 00 e8 00 00 0c 00 01 29 02 ff fe 02 03 00 1e 00
19 00 04 00 13 00 02 00 08 00 08 00 02 00 71 00 0f 00
01 0b 00 71 00 02 00 00 03 00 33 01 11 00 11 27 4e 00
02 00 05 27 7e 00 03 08 00 00 29 19 00 06 33 35 37 35
31 00 29 1b 00 0b 31 30 2e 31 30 2e 31 2e 31 34 00 29
1c 00 04 00 00 13 c4 29 23 00 06 32 30 35 39 37 00 29
25 00 0a 31 30 2e 31 30 2e 31 2e 32 00 29 26 00 04 00
00 13 c4 29 2d 00 06 32 30 35 39 37 00 29 2f 00 0a 31
30 2e 31 30 2e 31 2e 32 00 29 30 00 04 00 00 13 c4 29
33 00 01 01 27 18 00 08 02 00 00 00 05 20 59 70 27 17
00 06 02 00 05 15 75 80 2a 00 00 75 2a 0e 00 04 0a 0a
01 02 2a 01 00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f
40 2a 02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b
00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09
00 01 01 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00
02 00 16 2a 09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02
00 13 2a 08 00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00
00 1f 40 29 16 00 01 01 2a 0e 00 04 0a 0a 01 02]
X->H
[00 14 00 e8 00 00 0c 00 10 01 02 1e 09 00 01 00 39 00 03 00
64 0d]
X->H
[00 11 00 43 00 0a 0c 00 01 0d 03 00 64 0d 00 a7 00 24 00]
H->X
[00 05 00 43 00 0a 0c]
H->X
[00 05 00 43 00 0a 0c]
X->H
[00 91 00 43 00 0b 0c 00 01 0d 03 00 64 0d 00 a7 00 20 01 03
00 33 00 7b 00 01 29 ff 00 75 2a 0e 00 04 0a 0a 01 0e
2a 01 00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f 40 2a
02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04
00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01
01 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00
16 2a 09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02 00 13
2a 08 00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00 00 1f
40]
H->X
[00 05 00 43 00 0b 0c]
H->X
[00 05 00 43 00 0b 0c]
H->X
[00 9f 00 05 00 00 0c 00 02 0d 03 00 64 0c 0d 03 00 64
0d 01 02 03 00 1e 00 07 00 01 01 16 00 01 01 03 00 33
00 7b 00 01 2a 00 00 75 2a 0e 00 04 0a 0a 01 0e 2a 01
00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f 42 2a 02 00
13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04 00 00
1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01 01 2a
0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 16 2a
09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08
00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00 00 1f 40]
X->H
[00 07 00 05 00 00 0c 00 10]
X->H
[01 1b 00 2d 00 09 0c 00 01 0d 03 00 64 0e 00 33 01 03 00 33
01 07 00 10 27 4e 00 02 00 05 27 7e 00 03 08 00 00 29
19 00 06 32 30 35 39 37 00 29 1b 00 0a 31 30 2e 31 30
2e 31 2e 32 00 29 1c 00 04 00 00 13 c4 29 23 00 05 38
33 32 33 00 29 25 00 0b 31 30 2e 31 30 2e 31 2e 32 39
00 29 26 00 04 00 00 13 c4 29 2d 00 05 38 33 32 33 00
29 2f 00 0b 31 30 2e 31 30 2e 31 2e 32 39 00 29 30 00
04 00 00 13 c4 29 33 00 01 01 27 18 00 07 02 00 00 00
04 83 23 27 17 00 06 02 00 05 20 59 70 29 ff 00 75 2a
0e 00 04 0a 0a 01 1d 2a 01 00 69 2a 03 00 01 00 2a 07
00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 02 2a 09
00 01 02 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00
02 00 01 2a 09 00 01 01 2a 0b 00 04 00 00 1f 40 2a 02
00 13 2a 08 00 02 00 16 2a 09 00 01 16 2a 0b 00 04 00
00 1f 40 2a 02 00 13 2a 08 00 02 01 65 2a 09 00 01 32
2a 0b 00 04 00 00 1f 40 29 16 00 01 01]
H->X
[00 0c 00 2d 00 09 0c 00 01 0d 03 00 64 0e]
H->X
[00 0c 00 2d 00 09 0c 00 01 0d 03 00 64 0e]
H->X
[00 11 00 bf 00 00 0c 00 02 0d 03 00 64 0e 0d 03 00 64
0e]
X->H
[00 07 00 bf 00 00 0c 00 10]
H->X
[00 11 00 bf 00 00 0c 00 02 0d 03 00 64 0c 0d 03 00 64
0d]
X->H
[00 07 00 bf 00 00 0c 00 10]
X->H
[00 0e 00 42 00 64 0c 00 01 0d 03 00 64 0d 04 00]
H->X
[00 1d 00 44 00 00 0c 00 01 0d 03 00 64 0c 00 a7 00 1e
01 03 00 33 00 07 00 01 27 b3 00 01 03]
H->X
[00 05 00 42 00 64 0c]
H->X
[00 05 00 42 00 64 0c]
X->H
[00 07 00 44 00 00 0c 00 10]
H->X
[00 91 00 44 00 00 0c 00 01 0d 03 00 64 0c 00 a7 00 24
01 03 00 33 00 7b 00 01 2a 00 00 75 2a 0e 00 04 0a 0a
01 1d 2a 01 00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f
40 2a 02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b
00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09
00 01 01 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00
02 00 16 2a 09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02
00 13 2a 08 00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00
00 1f 40]
X->H
[00 07 00 44 00 00 0c 00 10]
X->H
[00 91 00 43 00 0c 0c 00 01 0d 03 00 64 0c 00 a7 00 20 01 03
00 33 00 7b 00 01 29 ff 00 75 2a 0e 00 04 0a 0a 01 02
2a 01 00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f 40 2a
02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04
00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01
01 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00
16 2a 09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02 00 13
2a 08 00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00 00 1f
40]
H->X
[00 05 00 43 00 0c 0c]
H->X
[00 05 00 43 00 0c 0c]
H->X
[00 9f 00 05 00 00 0c 00 02 0d 03 00 64 0e 0d 03 00 64
0c 01 02 03 00 1e 00 07 00 01 01 16 00 01 01 03 00 33
00 7b 00 01 2a 00 00 75 2a 0e 00 04 0a 0a 01 02 2a 01
00 69 2a 03 00 01 00 2a 07 00 04 00 00 1f 40 2a 02 00
13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04 00 00
1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01 01 2a
0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 16 2a
09 00 01 16 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08
00 02 01 65 2a 09 00 01 32 2a 0b 00 04 00 00 1f 40]
X->H
[00 07 00 05 00 00 0c 00 10]
H->X
[00 11 00 08 00 00 0c 00 02 0d 03 00 64 0d 0d 03 00 64
0d]
X->H
[00 07 00 08 00 00 0c 00 10]
X->H
[00 0c 00 49 00 0a 0c 00 01 0d 03 00 64 0d]
H->X
[00 05 00 49 00 0a 0c]
SIP messages
1 -RECEIVED From 10.10.1.2:5060 at 15995
INVITE sip:35751@10.10.1.14 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bK1FDA7D2876B0495394290D381FB3
389C
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
To: <sip:35751@10.10.1.14>
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 INVITE
Max-Forwards: 70
Content-Type: application/sdp
User-Agent: X-Lite release 1103m
Content-Length: 290
v=0
o=20597 722096328 722096343 IN IP4 10.10.1.2
s=X-Lite
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
2 -SENT To 10.10.1.2:5060 at 15995
SIP/2.0 100 Trying
To: <sip:35751@10.10.1.14>;tag=45103e7b
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 INVITE
Contact: 35751<sip:35751@10.10.1.47:5060>
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bK1FDA7D2876B0495394290D381FB3
389C
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
3 -SENT To 10.10.1.14:5060 at 15996
INVITE sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751<sip:35751@10.10.1.14:5060>
From: 20597<sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
Contact: 20597<sip:20597@10.10.1.47:5060>
User-Agent: Excel_CSP/83.10.75
Supported: timer
Session-Expires: 1800
Min-SE: 300
CSeq: 1 INVITE
Content-Type: application/sdp
Content-Length: 223
v=0
o=sip 1122578382 1122578382 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
4 -RECEIVED From 10.10.1.14:5060 at 15996
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 1 INVITE
Server: X-Lite release 1103m
Content-Length: 0
5 -RECEIVED From 10.10.1.14:5060 at 15996
SIP/2.0 180 Ringing
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 1 INVITE
Server: X-Lite release 1103m
Content-Length: 0
6 -RECEIVED From 10.10.1.2:5060 at 15998
7 -RECEIVED From 10.10.1.14:5060 at 15998
8 -RECEIVED From 10.10.1.29:5060 at 15999
9 -RECEIVED From 10.10.1.14:5060 at 16004
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 1 INVITE
Content-Type: application/sdp
Server: X-Lite release 1103m
Content-Length: 292
v=0
o=35751 292794390 292802031 IN IP4 10.10.1.14
s=X-Lite
c=IN IP4 10.10.1.14
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
10-SENT To 10.10.1.14:5060 at 16004
ACK sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751<sip:35751@10.10.1.14:5060>;tag=4107074591
From: 20597<sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 1 ACK
Content-Length: 0
11-RECEIVED From 10.10.1.2:5060 at 16008
12-RECEIVED From 10.10.1.14:5060 at 16008
13-SENT To 10.10.1.2:5060 at 16009
SIP/2.0 180 Ringing
To: <sip:35751@10.10.1.14>;tag=45103e7b
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 INVITE
Contact: 35751<sip:35751@10.10.1.47:5060>
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bK1FDA7D2876B0495394290D381FB3
389C
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
14-SENT To 10.10.1.2:5060 at 16009
SIP/2.0 200 OK
To: <sip:35751@10.10.1.14>;tag=45103e7b
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 INVITE
Contact: 35751<sip:35751@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uas
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bK1FDA7D2876B0495394290D381FB3
389C
User-Agent: Excel_CSP/83.10.75
Content-Type: application/sdp
Content-Length: 224
v=0
o=sip 1122578395 1122578395 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 10.10.1.14
t=0 0
m=audio 8002 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
15-RECEIVED From 10.10.1.2:5060 at 16009
ACK sip:35751@10.10.1.47:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.2:5060;rport;branch=z9hG4bKDC857736F60944AEB97C9B1D843C
7181
From: Subbu <sip:20597@10.10.1.2>;tag=803647026
To: <sip:35751@10.10.1.14>;tag=45103e7b
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35318 ACK
Max-Forwards: 70
Content-Length: 0
16-RECEIVED From 10.10.1.29:5060 at 16010
17-RECEIVED From 10.10.1.29:5060 at 16016
INVITE sip:20597@10.10.1.2 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK2017BD3E5D074025B27B107065B
31D99
From: sathia <sip:8323@10.10.1.29>;tag=851025480
To: <sip:20597@10.10.1.2>
Contact: <sip:8323@10.10.1.29:5060>
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 INVITE
Max-Forwards: 70
Content-Type: application/sdp
User-Agent: X-Lite release 1103m
Content-Length: 293
v=0
o=8323 1402407484 1402407500 IN IP4 10.10.1.29
s=X-Lite
c=IN IP4 10.10.1.29
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
18-SENT To 10.10.1.29:5060 at 16016
SIP/2.0 100 Trying
To: <sip:20597@10.10.1.2>;tag=33963e90
From: sathia <sip:8323@10.10.1.29>;tag=851025480
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 INVITE
Contact: 20597<sip:20597@10.10.1.47:5060>
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK2017BD3E5D074025B27B107065B
31D99
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
19-SENT To 10.10.1.29:5060 at 16017
SIP/2.0 180 Ringing
To: <sip:20597@10.10.1.2>;tag=33963e90
From: sathia <sip:8323@10.10.1.29>;tag=851025480
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 INVITE
Contact: 20597<sip:20597@10.10.1.47:5060>
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK2017BD3E5D074025B27B107065B
31D99
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
20-RECEIVED From 10.10.1.2:5060 at 16018
21-RECEIVED From 10.10.1.14:5060 at 16018
22-RECEIVED From 10.10.1.29:5060 at 16020
23-SENT To 10.10.1.14:5060 at 16022
INVITE sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 2 INVITE
User-Agent: Excel_CSP/83.10.75
Contact: 20597<sip:20597@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uac
Min-SE: 300
Content-Type: application/sdp
Content-Length: 221
v=0
o=sip 1122578408 1122578408 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 0.0.0.0
t=0 0
m=audio 8000 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
24-RECEIVED From 10.10.1.14:5060 at 16022
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 2 INVITE
Server: X-Lite release 1103m
Content-Length: 0
25-RECEIVED From 10.10.1.14:5060 at 16022
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 2 INVITE
Content-Type: application/sdp
Server: X-Lite release 1103m
Content-Length: 292
v=0
o=35751 292794390 292802031 IN IP4 10.10.1.14
s=X-Lite
c=IN IP4 10.10.1.14
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
26-SENT To 10.10.1.14:5060 at 16022
ACK sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 2 ACK
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
27-SENT To 10.10.1.2:5060 at 16022
INVITE sip:20597@10.10.1.2:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
From: <sip:35751@10.10.1.14>;tag=45103e7b
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35319 INVITE
User-Agent: Excel_CSP/83.10.75
Contact: 35751<sip:35751@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uac
Min-SE: 300
Content-Type: application/sdp
Content-Length: 221
v=0
o=sip 1122578408 1122578408 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 0.0.0.0
t=0 0
m=audio 8002 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
28-RECEIVED From 10.10.1.2:5060 at 16022
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.10.1.47
From: <sip:35751@10.10.1.14>;tag=45103e7b
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35319 INVITE
Server: X-Lite release 1103m
Content-Length: 0
29-RECEIVED From 10.10.1.2:5060 at 16022
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: <sip:35751@10.10.1.14>;tag=45103e7b
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35319 INVITE
Content-Type: application/sdp
Server: X-Lite release 1103m
Content-Length: 290
v=0
o=20597 722096328 722096343 IN IP4 10.10.1.2
s=X-Lite
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
30-SENT To 10.10.1.2:5060 at 16022
ACK sip:20597@10.10.1.2:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
From: <sip:35751@10.10.1.14>;tag=45103e7b
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35319 ACK
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
31-SENT To 10.10.1.2:5060 at 16026
INVITE sip:20597@10.10.1.2:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
From: <sip:35751@10.10.1.14>;tag=45103e7b
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35320 INVITE
User-Agent: Excel_CSP/83.10.75
Contact: 35751<sip:35751@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uac
Min-SE: 300
Content-Type: application/sdp
Content-Length: 224
v=0
o=sip 1122578412 1122578412 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 10.10.1.29
t=0 0
m=audio 8000 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
32-RECEIVED From 10.10.1.2:5060 at 16026
SIP/2.0 100 Trying
Via: SIP/2.0/UDP 10.10.1.47
From: <sip:35751@10.10.1.14>;tag=45103e7b
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35320 INVITE
Server: X-Lite release 1103m
Content-Length: 0
33-RECEIVED From 10.10.1.2:5060 at 16026
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: <sip:35751@10.10.1.14>;tag=45103e7b
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
Contact: <sip:20597@10.10.1.2:5060>
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35320 INVITE
Content-Type: application/sdp
Server: X-Lite release 1103m
Content-Length: 290
v=0
o=20597 722096328 722096343 IN IP4 10.10.1.2
s=X-Lite
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 98 97 101
a=rtpmap:0 pcmu/8000
a=rtpmap:8 pcma/8000
a=rtpmap:3 gsm/8000
a=rtpmap:98 iLBC/8000
a=rtpmap:97 speex/8000
a=rtpmap:101 telephone-event/8000
a=fmtp:101 0-15
34-SENT To 10.10.1.2:5060 at 16026
ACK sip:20597@10.10.1.2:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: Subbu <sip:20597@10.10.1.2>;tag=803647026
From: <sip:35751@10.10.1.14>;tag=45103e7b
Call-ID: 1493360C-C36D-4A22-945A-6A8D06BB5BB8@10.10.1.2
CSeq: 35320 ACK
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
35-SENT To 10.10.1.29:5060 at 16027
SIP/2.0 200 OK
To: <sip:20597@10.10.1.2>;tag=33963e90
From: sathia <sip:8323@10.10.1.29>;tag=851025480
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 INVITE
Contact: 20597<sip:20597@10.10.1.47:5060>
Supported: timer
Session-Expires: 1800; refresher=uas
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK2017BD3E5D074025B27B107065B
31D99
User-Agent: Excel_CSP/83.10.75
Content-Type: application/sdp
Content-Length: 223
v=0
o=sip 1122578413 1122578413 IN IP4 10.10.1.47
s=SIP_Call
c=IN IP4 10.10.1.2
t=0 0
m=audio 8000 RTP/AVP 0 8 3 101
a=rtpmap:0 PCMU/8000
a=rtpmap:8 PCMA/8000
a=rtpmap:3 GSM/8000
a=rtpmap:101 telephone-event/8000
36-RECEIVED From 10.10.1.29:5060 at 16027
ACK sip:20597@10.10.1.47:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.29:5060;rport;branch=z9hG4bK93925BBE56494E7A8AD16EDBDB4
711EB
From: sathia <sip:8323@10.10.1.29>;tag=851025480
To: <sip:20597@10.10.1.2>;tag=33963e90
Contact: <sip:8323@10.10.1.29:5060>
Call-ID: D9DBF498-035A-4676-8223-B989D91D92E4@10.10.1.29
CSeq: 6321 ACK
Max-Forwards: 70
Content-Length: 0
37-RECEIVED From 10.10.1.2:5060 at 16028
38-RECEIVED From 10.10.1.14:5060 at 16029
39-RECEIVED From 10.10.1.29:5060 at 16030
40-SENT To 10.10.1.14:5060 at 16031
BYE sip:35751@10.10.1.14:5060 SIP/2.0
Via: SIP/2.0/UDP 10.10.1.47
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 3 BYE
User-Agent: Excel_CSP/83.10.75
Content-Length: 0
41-RECEIVED From 10.10.1.14:5060 at 16031
SIP/2.0 200 Ok
Via: SIP/2.0/UDP 10.10.1.47
From: 20597 <sip:20597@10.10.1.2:5060>;tag=410941543e7c
To: 35751 <sip:35751@10.10.1.14:5060>;tag=4107074591
Contact: <sip:35751@10.10.1.14:5060>
Call-ID: EXCEL-CSP12.100d.15996.360@10.10.1.47
CSeq: 3 BYE
Server: X-Lite release 1103m
Content-Length: 0
42-RECEIVED From 10.10.1.2:5060 at 16039
PPL Changes
The following PPL change supports this feature.
PPL Event Request to Generate RE-INVITE message
PPL Event Request (0x0024)
The PPL Event Request (0x0024) is used to generate a RE-INVITE message to the SIP endpoint connected to the channel indicated in the channel AIB.
This PPL Event Request will work only if the call is in bearer-free mode or else it will NACK with a value 0x130C (Call is not in bearer-free mode.)
The PPL Event Request is added to the SIP UA (0x00A7) component. Refer to PPL Information: SIP UA 0x00A7
When the PPL Event Request generates a RE-INVITE message, the 200 OK SIP message received from the other end having the SDP information will be reported to the host application using the PPL Event Indication (0x0020) by the SIP UA component.
The data in the PPL Event Indication could be used within the subsequent Connect with Data (0x0005) message. The PPL Event Request is ACKED if the data is valid.
Important! The PPL Event Request should contain a Media Remote End Point Info (0x2A00) TLV.
