E-ONE 75 Ohm Red I/O Card - EXS-EIO-1210/EXS-EIO-1210R
The E-ONE 75 Ohm Redundant I/O card is used in conjunction with a E-ONE 75 Ohm Standby I/O card to deliver N + 1 redundancy to all system line cards. If an active line card fails, the affected data stream is rerouted to a standby line card. The software enables you to automate the switchover process or control it from a remote location.
Use only 75 Ohm impedance coaxial cable fitted with BNC connectors in compliance with ITU-T G.703.
The card resides in the rear card slots of a CSP 2090, CSP 2110 or CSP 2040 chassis.
The part number, serial number, model number, and revision are located on the back of the board.
The E-ONE 75 Ohm Redundant I/O card is designed to the following electrical, physical and environmental specifications.
Electrical |
Specification |
---|---|
Supply Voltage, Vcc |
5.00V |
Supply Current, Vcc @ 5.0V |
0.53A (typical) |
Physical |
Specification |
---|---|
Height |
318.5 mm (12.54 in.) |
Depth |
105.2 mm (4.14 in) |
Width |
19.7 mm (0.775 in.) |
Environmental |
Specification |
---|---|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~C/min. |
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ 10~C/min. |
Humidity - Operating |
5% to 85% |
Altitude |
Up to 4000 m (13,123 ft.) |
The products related to the E-ONE 75 Ohm Redundant I/O card are listed below.
Product |
Model No. |
RoHS Model No. |
---|---|---|
E-ONE Card |
EXS-E1C-1081 |
EXS-E1C-1081R |
E-ONE 75 Ohm I/O Card |
EXS-EIO-1010 |
EXS-EIO-1010R |
E-ONE 75 Ohm Standby I/O |
EXS-EIO-1310 |
EXS-EIO-1310R |

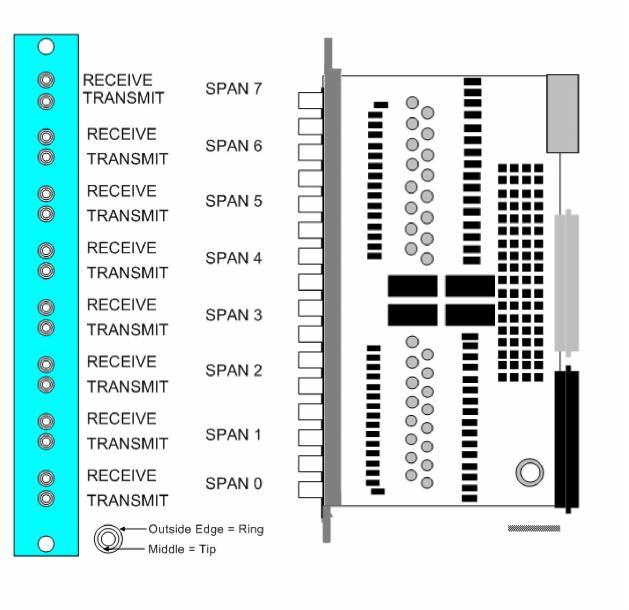

The front and side views show the span transmit/receive connectors.
