CCS I/O Series 3 Red Cable - Part Nos. 64-3333-00/164-3333-00
The CCS I/O Series 3 Redundancy Link cable assembly serves as an independent link for redundancy between the adjacent CCS I/O Series 3 cards using the Redundant Link connectors.
The Redundancy Link cable is designed to the following specifications.
Parameter |
Specification |
---|---|
Length |
7 inches |
Connector Types |
8-Pin, RJ-45 connectors |
The products related to the Redundancy Link cable are listed below.
Product |
Model No. |
RoHS Model No. |
---|---|---|
CCS I/O Series 3 Card |
EXS-7IO-1300 |
EXS-7IO-1300R |

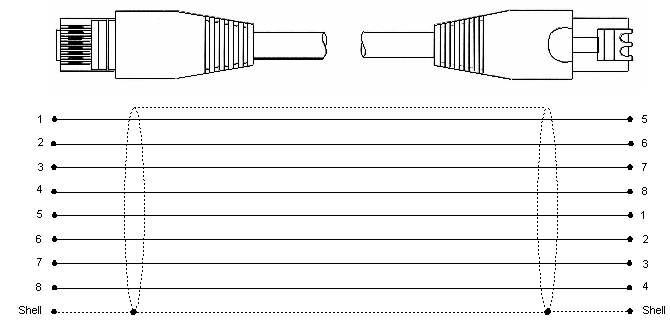

The Redundancy Link cable assembly and pinouts are shown below.
