ISDN PRI Redundant I/O Card - LNX-PIO-1000
The ISDN PRI Redundant I/O card is used with two ISDN PRI cards. It provides complete redundancy by replicating all 32 D channels on a standby card.
Important! Only one I/O card is required for each pair of ISDN PRI cards.
The I/O card has no external connections. All of its features and functionality are internal to the system. A mirror image of the active card’s primary and secondary D channels is copied to the standby card.
If the active card fails or if you remove it, the standby card takes over and manages call processing. All calls in a connected state are retained while others are purged. If you reset the active card, it switches over to standby.
The I/O card resides in the rear card slots of a CSP 2090, CSP 2110 or CSP 2040 chassis.
The part number, serial number, model number, and revision are located on the back of the board.
The ISDN PRI Redundant I/O card is designed to the following electrical, physical and environmental specifications.
Electrical |
Specification |
---|---|
Supply Voltage, Vcc |
5.00V |
Supply Current, Vcc @ 5.0V |
0.32A (typical) |
Physical |
Specification |
---|---|
Height |
318.5 mm (12.54 in.) |
Depth |
105.2 mm (4.14 in) |
Width |
19.7 mm (0.775 in.) |
Environmental |
Specification |
---|---|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~C/min. |
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ 10~C/min. |
Humidity - Operating |
5% to 85% |
Altitude |
Up to 4000 m (13,123 ft.) |
The products related to the ISDN PRI Redundant I/O card are listed below.
Product |
Model No. |
RoHS Model No. |
---|---|---|
ISDN PRI Card |
LNX-PRI-1100 |
Not Applicable |

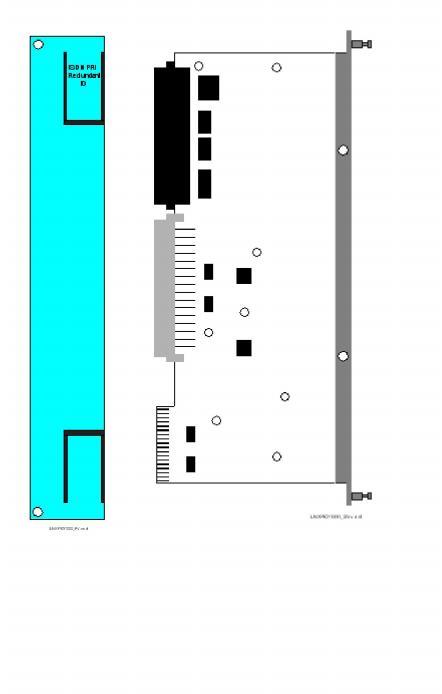

The front and side views show the connectors.
