SS7 Series 3 Card - See Model Numbers
The SS7 Series 3 card provides Signaling System 7 services for the CSP fully integrating switching and advanced signaling applications. The SS7 Series 3 card enables the CSP to act as a Signaling Point (SP) in the SS7 network architecture.
The SS7 Series 3 card is a Power PC-based SS7 controller card.
You achieve redundancy by installing, connecting and configuring a pair of SS7 Series 3 cards. Refer to the CCS I/O Series 3 card Hardware Product Description for more information on redundancy.
Each CSP 2090, CSP 2110 or CSP 2040 chassis can accommodate SS7 Series 3 cards which reside in the front slots.
The part number, serial number, model number, and revision are located on the back of the board.
The SS7 Series 3 card is designed to the following electrical, physical and environmental specifications.
|
Electrical |
Specification |
|---|---|
|
Supply Voltage, Vcc |
5.00V |
|
Supply Current, Vcc @ 5.0V |
4.73A (typical) |
|
Physical |
Specification |
|---|---|
|
Height |
236.2 mm (9.3 in.) |
|
Depth |
317.5 mm (12.5 in.) |
|
Width |
19.7 mm (0.775 in.) |
|
Environmental |
Specification |
|---|---|
|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
|
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
|
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~C/min. |
|
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ 10~C/min. |
|
Humidity - Operating |
5% to 85% |
|
Altitude |
Up to 4000 m (13,123 ft.) |
The available SS7 Series 3 card models are listed below.
|
Product |
Model No. |
RoHS Model No. |
|---|---|---|
|
SS7 Line Card, 2 Link |
CSP-SS7-1302 |
CSP-SS7-1302R |
|
SS7 Line Card, 4 Link |
CSP-SS7-1304 |
CSP-SS7-1304R |
|
SS7 Line Card, 6 Link |
CSP-SS7-1306 |
CSP-SS7-1306R |
|
SS7 Line Card, 8 Link |
CSP-SS7-1308 |
CSP-SS7-1308R |
|
SS7 Line Card, 10 Link |
CSP-SS7-1310 |
CSP-SS7-1310R |
|
SS7 Line Card, 12 Link |
CSP-SS7-1320 |
CSP-SS7-1320R |
|
SS7 Line Card, 14 Link |
CSP-SS7-1340 |
CSP-SS7-1340R |
|
SS7 Line Card, 16 Link |
CSP-SS7-1360 |
CSP-SS7-1360R |
The products related to the SS7 Series 3 card are listed below.
|
Product |
Model No. |
Model No. |
|---|---|---|
|
CCS I/O Series 3 Card |
EXS-7IO-1300 |
EXS-7IO-1300R |
|
CCS I/O Series 3 Redundancy Cable |
Part No. 64-3333-00 |
Part No. 64-3333-00 |

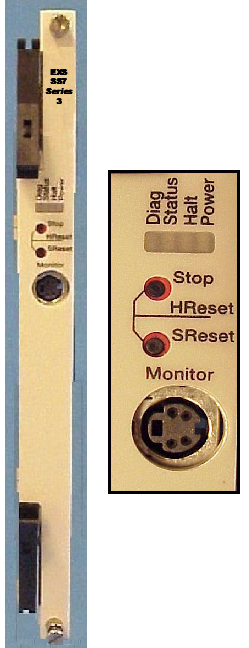

The front view shows the LEDs, push button switches and Monitor connector.
The table below describes the LEDs and push button switches as shown in the front view of the card.
|
LED |
Color/Status |
Description |
|---|---|---|
|
Diag |
Green |
This LED is green except during a card reset when this LED goes out briefly. This LED is normally OFF. |
|
Red |
Redundancy has been configured. |
|
|
Off |
No diagnostics running |
|
|
Status |
Green |
The card is connected to the system buses. |
|
Red |
The Stop push button has been pressed. The card is disconnected from the system buses. |
|
|
Off |
Not applicable. |
|
|
Halt |
Green |
The CPU is running. |
|
Red |
The CPU has halted. This LED is red briefly during card reset. |
|
|
Off |
CPU hard reset |
|
|
Power |
Green |
Good power |
|
Off |
Bad power |
|
|
Push Buttons |
Description |
|
|
Stop |
Removes card from the system buses. Always press the Stop push button before removing the card from the chassis. |
|
|
Stop and S Reset together |
Initiates a Hard Reset. The Flash and SDRAM are reset, as is the processor and all of its internal registers. A Hard Reset also occurs when the Watchdog times out twice in a row. |
|
|
S Reset |
Initiates a Soft Reset. The code running on the processor is reset, and the Flash is put into a read state. |
|
The table below describes the DIP switch SW1 settings. The shading (asterisk* for html documents) indicates factory-installed settings.
|
Position |
Setting |
Function |
|---|---|---|
|
1 |
ON* |
Disables Debug 1 Mode |
|
OFF |
Enables Debug 1 Mode |
|
|
2 |
ON* |
The Monitor port setting is 19200 baud. |
|
OFF |
The Monitor port setting is 19200 baud. |
|
|
3 |
ON* |
Disables Debug 2 Mode |
|
OFF |
Enables Debug 2 Mode |
|
|
4 |
ON* |
Ethernet Link, Auto-Negotiate Mode (Default) |
|
OFF** |
Ethernet Link, Force 100 Mbps/Full Duplex Mode |
|
|
5 |
ON* |
Reserved, normally should be ON |
|
OFF |
Reserved |
|
|
6 |
ON* |
Reserved, normally should be ON |
|
OFF |
Reserved |
|
|
7 |
ON* |
Reserved, normally should be ON |
|
OFF |
Reserved |
|
|
8 |
ON* |
Reserved, normally should be ON |
|
OFF |
Reserved |
** Enables Ethernet Link, Force 100 Mbps/Full Duplex feature.
The table below indicates the jumper settings.
|
Jumper |
Setting |
Description |
|---|---|---|
|
JP1 |
Installed (default) |
Factory use only |
|
JP2 |
Installed (default) |
Factory use only |
|
JP3 |
Installed (default) |
Factory use only |
|
JP4 |
Not Installed (default) |
Hardware Watchdog Timer enabled |
|
JP5 |
Installed (default) |
Factory use only |
|
JP7 |
Not Installed (default) |
Factory use only |
|
JP8 |
Installed (default) |
Factory use only |
|
JP9 |
Installed (default) |
Factory use only |
|
JP10 |
Installed (default) |
Factory use only |
|
JP11 |
Installed (default) |
Factory use only |

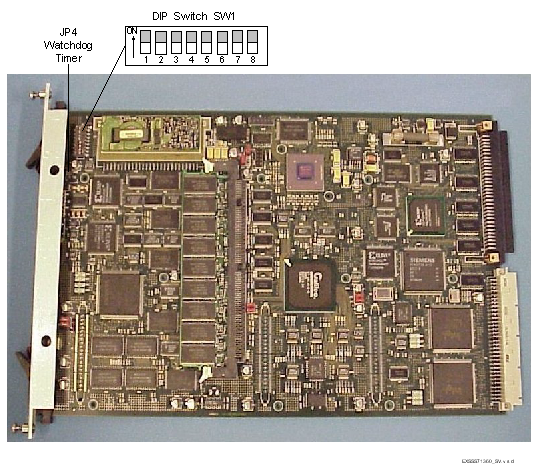

The side view shows DIP switch SW1 and jumper JP4.
