Subrate Controller (SRC) Card - LNX-SRC-1000
The Subrate Controller (SRC) card supports one-way and two-way connections and disconnections between any two subrate channels (non-blocking) across all 2048 timeslots in a CSP. The host is responsible for managing subrate channel connections and disconnections. This card is hot swappable. It does not require an associated I/O card.
The system supports SRC card redundancy. No more than two SRC cards can be installed in a switch.
The card has 4 Mb of battery-backed RAM.
The SRC card resides in the front slot of a CSP 2090 or CSP 2110 chassis.
The part number, serial number, model number, and revision are located on the back of the board.
The SRC card is designed to the following electrical, physical and environmental specifications.
Electrical |
Specification |
---|---|
Supply Voltage, Vcc |
5.00V |
Supply Current, Vcc @ 5.0V |
5.04A (typical) |
Physical |
Specification |
---|---|
Length |
9.3 inches (236.2 mm) |
Width |
12.5 inches (317.5 mm) |
Height |
.775 inches (19.7 mm) |
Environmental |
Specification |
---|---|
Temperature - Storage |
-40~C to 70~C (-40~F to 158~F) |
Temperature - Operation |
0~C to 50~C (32~F to 122~F) |
Temperature Shock - Storage |
-40~C to 70~C to -40~C (-40~F to 158~F to -40~F) @ 5~/minute |
Temperature Shock - Operation |
0~C to 50~C (32~F to 122~F) @ 10~/minute |
Humidity - Operating |
5% to 85% |
Altitude |
Up to 4000 m (13,123 ft.) |
The products related to the SRC card are listed below.
Product |
Model No. |
RoHS Model No. |
---|---|---|
Not Applicable |
Not Applicable |
Not Applicable |

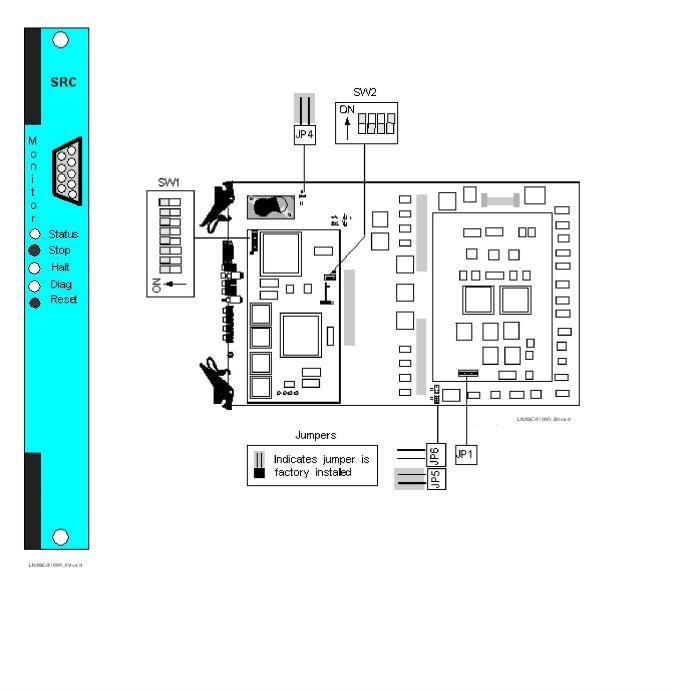

The front and side views show the LEDs, push button switches, Monitor connector, DIP switches, and jumpers.
The table below describes the LEDs and push button switches.
LEDs |
Color/Status |
Description |
---|---|---|
Status |
Red |
The Stop push button has been pressed. The card is disconnected from the system buses. |
Green |
The card is connected to the system buses. |
|
Off |
The card is resetting. |
|
Halt |
Red |
The CPU has halted. This LED is red briefly during card reset. |
Green |
The CPU is running. |
|
Diag |
Green |
The SCR card is in the Active state and is managing subrate connections. |
Yellow |
The SCR card is in the Standby state. |
|
OFF |
The SCR card is synchronizing to the active subrate connections in the system. This should be a temporary condition. |
|
Push Buttons |
Description |
|
Stop push button |
Removes card from the system buses. Always press the Stop push button before removing the card from the chassis. |
|
Reset push button |
Initiates a hardware reset on the card. |
The table below describes the DIP switch SW1 settings. The shading (asterisk* for html documents) indicates factory-installed settings.
Position |
Setting |
Function |
---|---|---|
1 |
ON* |
Disables Debug 1 Mode |
OFF |
Enables Debug 1 Mode (printing) |
|
2 |
ON* |
Selects 9600 baud for Monitor port |
OFF |
Selects 19200 baud for Monitor port |
|
3 |
ON* |
Disables Debug 2 Mode |
OFF |
Enables Debug 2 Mode |
|
4 |
ON* |
Reserved, normally should be ON |
OFF |
Reserved |
|
5 |
ON* |
Reserved, normally should be ON |
OFF |
Reserved |
|
6 |
ON* |
Reserved, normally should be ON |
OFF |
Reserved |
|
7 |
ON* |
Reserved, normally should be ON |
OFF |
Reserved |
|
8 |
ON* |
Reserved, normally should be ON |
OFF |
Reserved |
The table below describes the DIP switch SW2 settings. The shading (asterisk* for html documents) indicates factory-installed settings.
Position |
Setting |
Function |
---|---|---|
1 |
ON* |
Reserved, normally should be ON |
OFF |
Reserved |
|
2 |
ON |
Reserved |
OFF* |
Reserved, normally should be OFF |
|
3 |
ON |
Reserved |
OFF* |
Reserved, normally should be OFF |
|
4 |
ON* |
Hardware Watchdog Enable |
OFF |
Hardware Watchdog Disable |
The table below indicates the jumper settings.
Jumper |
Setting |
Description |
---|---|---|
JP1 |
Not Installed (default) |
Factory use only |
JP2 |
Not Installed (default) |
Factory use only |
JP3 |
Not Installed (default) |
Factory use only |
JP4 |
Installed (default) |
Enables battery backup |
JP5 |
Installed (default) |
Factory use only |
JP6 |
Not Installed (default) |
Factory use only |
