EXNET Fiber Optic Cable - See Part Numbers
In a CSP, PCM data passes between nodes through the EXNET ring, a proprietary 1.2 Gbps fiber optic network using a packet-based protocol. This section describes the physical aspects of the cable. Refer to the Hardware Installation and Maintenance Guide for complete CSP installation information.
The cable supplied by Cantata is a Duplex Zipcord fiber optic cable with the following specifications.
Parameter |
Specification |
---|---|
Length |
1, 2 and 5 meters |
Connectors |
SC |
Multi-mode |
850 nm |
Fiber Size |
62.5/125 microns |
Insertion Loss |
0.5 dB |
Return Loss |
Not Applicable |
The EXNET fiber optic cable part numbers are listed below.
Description |
Part No. |
RoHS Part No. |
---|---|---|
EXNET-Multi-Mode Fiber Optic Cable, 1 meter |
16-5001-00 |
116-5001-00 |
EXNET-Multi-Mode Fiber Optic Cable, 2 meter |
16-5008-00 |
116-5008-00 |
EXNET-Multi-Mode Fiber Optic Cable, 5 meter |
16-5005-00 |
116-5005-00 |
The products related to the EXNET fiber optic cable are listed below.
Product |
Model No. |
RoHS Model No. |
---|---|---|
EXNET-ONE Card |
EXS-XIO-1200 |
EXS-XIO-1200R |

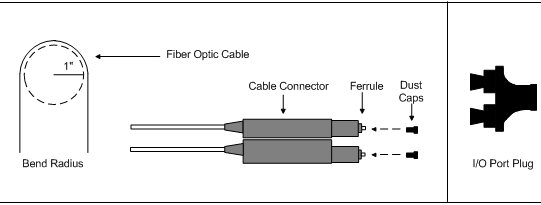

The fiber optic cable is made up of the following components as shown below.
The nodes communicate by sending a laser beam signal over the fiber optic cable. Once the EXNET-ONE I/O card is installed and the laser beam is active, do not look into the EXNET ports. You may damage your eyes.
If you install an EXNET-ONE I/O card without the fiber optic cable inserted in the EXNET ports, insert the plastic I/O Port Plug in the ports.
