CTSI SMS System Architecture

Overview

The China Telecom (CTSI) SMS system consists of a Customer Premesis Equipment (CPE), a Short Message Server (Server) and the PSTN.

SMS Protocol Stack

The CTSI SMS protocol stack provides an overview of the system architecture of SMS in relation to the PSTN. The protocol stack consists of three Short Message (SM) layers:

Message Layer - provides the interface to the application.

Data Link Layer - resides on the DSP Series 2 card

Physical Layer - resides on the DSP chip

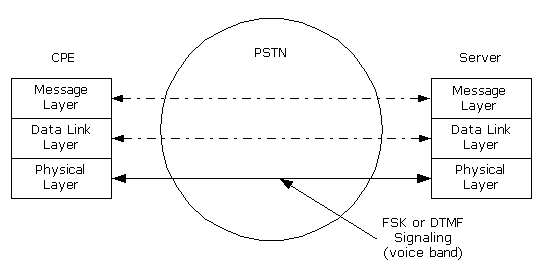

Figure 7-8 CTSI Model of SMS Data Transmission

Physical Layer

CTSI requires that all servers must support both FSK and Dual Tone Multi-Frequency (DTMF).

DTMF Data Messages

CTSI SMS messages require using (DTMF) as the physical transport for SMS messages. DTMF provides tones to encode and transmit the binary SMS data. This not only changes the physical layer for message transmission, but also places a burden on the acknowledgement process to allow for choosing the appropriate uplink/downlink transport mechanism.

FSK Data Messages

Modulation: Bell 202, Continuous Phase Binary Frequency Shift Keying (FSK)

Signaling Messages

Customer Alerting Signal (CAS): The prompt signal from the server to the CPE 2150/2750 Hz for 85 ms.

CAS Response: The DTMF digits are described in the table below. In the DSP Series 2 architecture, these digits are detected on the DSP Chip, and reported to the PPL State machine for interpretation, and further state transitions.

Table 7-6 DTMF Digits

Name

Function

Composition

Meaning

Timing

Acknowledge of Caller Alerting Signal

Equipment Response

DTMF A

CTSI Equipment

On 150ms

DTMF B

CTSI Equipment (FSK)

Acknowledge of FSK Packet

Data Error Detection

DTMF D1

Data Transmission Correct

On 150 ms
Off 100 ms
(for each DTMF)

DTMF D0

Data Transmission Error

Uplink (CPE to Server)

The uplink from the CPE to the server can be either DTMF or FSK. FSK messages are as described for the Downlink, and DTMF is specified as below:

Timing: Short tone mode DTMF on 50-60 ms; off 50-60 ms

Table 7-7 DTMF Types

Name

Function

Timing

Note

Short tone mode

Uplink data transmission

On 50-60ms
Off 50-60 ms



Confirmation tone mode*

Message confirmation of CPE to the server; For auto-dialing

On 150 ms
Off 100 ms

Use this mode to dial under normal situations

Long tone mode

For auto-dialing

On 250ms
Off 200ms



* When sending DTMF using the confirmation tone mode, off (100ms) is limited for dialing. When sending the Acknowledge (ACK), after the DTMF for 150ms, CPE should get into the next state with no stop.

Data Link Layer

The data link layer provides the mechanism for reliable data transmission. The major functions of this layer are:

1. Packetizing and unpacketizing for the data link layer data packet

2. Set up and release a data link between the CPE and server

3. Timing control for the CPE and server

4. Error detection on data transmission

5. Retransmission when the error happens

6. Support function for the CPE with FSK uplink capability

On the DSP Series 2, the downlink Data Link Layer (DSP Series 2 to CPE) is always handled on the DSP chip.

In the uplink direction, when the uplink is FSK, the Data Link Layer is handled by the DSP chip.

When the uplink is DTMF, the Data Link Layer is handled by the PPL state machine and the FSK PPL.

Table 7-8 Uplink and Downlink Combinations

Direction

Type

Message Packet Coding





CPE without Uplink Capability

CPE with Uplink Capability

Server to CPE

User Data

Downlink FSK message packet (1)

Downlink FSK message packet (1)

Control Signaling



Downlink FSK signaling packet (4)

CPE to Server

User Data

Uplink DTMF message packet (2)

Uplink FSK message packet (5)

Control Signaling

Uplink DTMF signaling packet (3)

Uplink FSK signaling packet (6)



Downlink FSK Message Packet Format

This is the user data from the server to the CPE in FSK.

Table 7-9 User Data From Server to CPE (FSK)

Synchronization
String

Message
Type

Packet
Number

Message
Content

Checksum

Synchronization String

Eight (8) synchronization leading characters (0x55) plus one (1) synchronization ending character (0x00) (Supplied by the DSP Chip)

When the CPE gets at least five (5) synchronization leading characters and the synchronization ending character, the synchronization is considered as being set up.

Message Type

The type of the Message Content. To be consistent with other relevant protocols, this value is 0x84. This is supplied by the application developer in the API.

Message Length

The byte count of the Packet Number (1 byte) plus the byte count of the Message Content (supplied by API).

Packet Number

0x01

Message Content

Determined by the message layer. It may contain one or several CTSI operation commands. The longest length cannot be over 254 bytes (supplied by API).

Checksum

Used for the error detection during the data transmission. The calculation is: sum of all the bytes except for the synchronization string; modulus 256; complement (supplied by DSP Chip).

Uplink DTMF Message Packet/Uplink DTMF Signaling Packet

The message packet comes from the message layer; the signaling packet is described in the error control section.

Downlink FSK Signaling Packet/Uplink FSK Message Packet/Uplink FSK Signaling Packet

Described in the section of the management of CPE with uplink FSK capability.



Data Link Setup and Release Procedure

There are several scenarios for data link setup and release. The major problems in the data link layer are transmission error and service time-out. The mechanism to report these problems is the signaling. In this section, the transmission of signaling is in the form of DTMF. If user CPE supports FSK transmission, the signaling transmission should also use FSK. See the section of the management of CPE with uplink FSK capability.

The CPE is connected to the server through PSTN, as shown below:

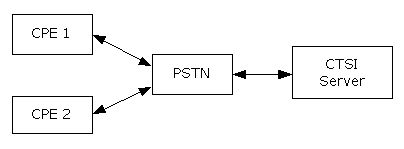

Figure 7-9 CPE/Server Connection Diagram

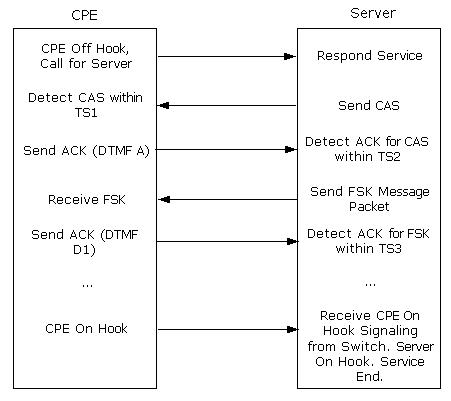

Call initiated by the CPE

Important! The CPE initiated call starts from the user dialing, or CPE automatic dialing. The CPE automatic dialing is suggested to use the confirmation tone mode (on 150ms, off 100ms).

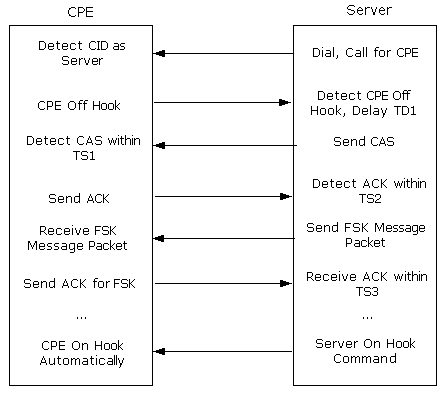

Call initiated by the Server

Regular Timers

In the protocol, the purpose of defining this type of timer is to assure the correct timing is received on the peer terminal, and to specify the service.

Table 7-10 Regular Timers

Timer

Location

Description

Usage

Length
Txxx

Action at Timeout or Event

TD1

Server

After the server knows the CPE is off hook, TD1 is the delay before it sends CAS.

So the CPE has a delay after its off hook to stably receive the CAS. It is only used for server calling CPE.

TTD1=
90ms

Send CAS

CAS

Server

Duration of sending CAS



TCAS=75-85ms

Stop CAS

W_CAS_ASK (wait for ACK)

Server

Wait for ACK to CAS from CPE



TW_CAS_ACK=
155ms



TD2

Server

Transferring time from waiting for CAS_ACK to sending FSK

Server system
specification

Recommend
50-100 ms,
Max. 500 ms

Send FSK

W_CAS_ASK (wait for ACK

Server

Wait for ACK to FSK from CPE



1000ms



TD3

Server

Transferring time from waiting for FSK_ACK to sending FSK

Server system
specification

Recommend
50-100 ms,
May be affected by ICP

Send FSK

Overtime Timers

In the protocol, the purpose of defining this type of timer is to detect whether some error happens at the peer terminal, and to serve the corresponding re-transmission mechanism.

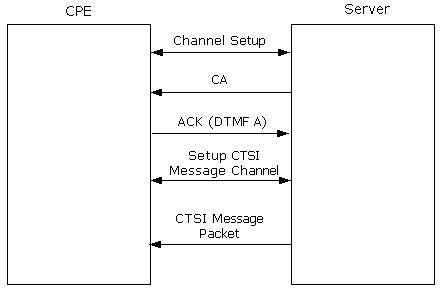

Error Control for the Data Link Layer

The error control in the protocol uses a stop-wait scheme. After the server sends a CTSI message packet to the CPE, it has to wait for the confirmation message from CPE. Then the server can continue its operation: send the next or re-send the last CTSI message packet.

Table 7-11 Error Control

Server Message
Type

CPE Confirmation Code

CPE Confirmation Message Meaning

CAS

DTMF A

Allow to set up CTSI service, uplink DTMF

DTMF B

Allow to set up CTSI service, uplink FSK

Other Code or Time-out with No Response

CPE rejection or problem in data link

Message Packet

DTMF D0

Message packet checksum error, please re-send

DTMF D1

Message packet received, OK



Re-transmission Mechanism

The retransmission mechanism tries to keep the connection when an error condition occurs. If errors persist after the prescribe number of re-transmissions, the server disconnects with the CPE.

Table 7-12

Re-transmission Contents

Re-transmission Confirmation Code

Re-transmission
Count

CAS

TS2 is time-out, and TS1 is not time-out

3

FSK Message Packet

Receive CPE confirmation D0; or TS3 is time-out

3

Re-Transmission

CPE capabilities

For the information uplink of CPE, both CPE and server need to support DTMF. Optionally, either the CPE or the server can support FSK uplink. At the start of the SMS interaction, the server and CPE exchange signaling messages to ensure common capabilities. If the CPE supports FSK uplink, it responds to the server's CAS with DTMF B. The server will send back a FSK signaling packet to indicate whether it supports FSK uplink from the CPE. If the server does, from then on the data uplink can use FSK.

If the server does not support FSK, the CPE will time out, and the CPE will request a DTMF uplink (using DTMF A). The server does not need to confirm the DTMF uplink capability with the CPE, because it is mandatory according to CTSI requirement. Refer to the following call flows that correspond to the various scenarios.

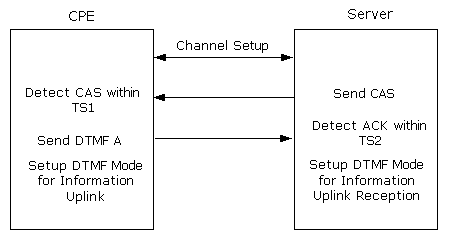

CPE Supports the DTMF Uplink Only

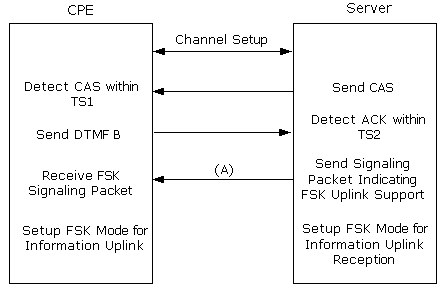

CPE Supports the FSK Uplink Only

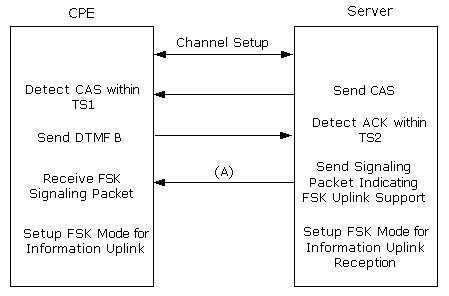

Server Does Not Support FSK Uplink

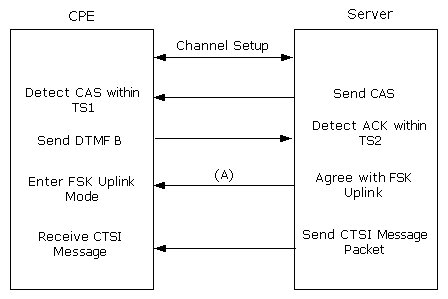

Message Format using FSK at CTSI Data Link Layer

Downlink FSK Signaling Packet/Uplink FSK Message Packet/Uplink FSK Signaling Packet

The following is the user data required to manage the CPE with uplink FSK capability.

Synchronization
String

Message
Type

Message
Length

Subtype
Number

Message
Content

Checksum

Synchronization String

Eight (8) synchronization leading characters (0x55) plus one (1) synchronization ending character (0x00) (Supplied by the DSP Chip)

When the CPE gets at least five (5) synchronization leading characters and the synchronization ending character, the synchronization is considered as being set up.

Message Type

The type of the Message Content. From CPE to server, this value is 0xFE. From server to CPE, this value is 0xFF.

Message Length

The byte count of the Sub-type Number (1 byte) plus the byte count of the Message Content.

Subtype Number

Depends on the different types of signaling.

Message Content

The longest length cannot be over 254 bytes.

Checksum

Used for the error detection during the data transmission. The calculation is: sum of all the bytes except for the synchronization string; modulus 256; complement.

Function

Message Type

Subtype
Number

Parameter

Meaning

Location in Diagram

Server Capability Confirmation

0xFE

0x00

0x00

Support FSK Uplink

A

0xFF

No Support for FSK Uplink

Server Confirmation to CPE User Data Packet

0x01

0x00

User Data FSK Correct

E

0xFF

User Data FSK Not Correct

Report on CPE Processing for Server Command

0xFF

A

0x00

Storage device does not exist

C





0x01

Storage device full





0x02

Private account not exist





0x03

User terminates download due to exception





0x04

Others, user refusal





0x0A

Device download succeed





0x0B

CTSI command can not be parsed

CPE User Data Packet



B

User Data

User Uplink Data

D

Report on CPE Receiving CTSI commands

0xFF

D

0x00

CTSI Command Packet Receive Error

B

0x01

CTSI Command Packet Received Correctly

Message Layer (Handled at the Application)

On the server side, the function of the message layer is to prepare the message packet content and parse the CPE feedback message. On the CPE side, the function of the message layer is to parse CTSI message packet and prepare the CPE feedback message. The message layer provides the message exchange mechanism between the CPE and server.

The message layer defines the format of message packet, the message (command) format, and the feedback message format.

The format of message packet: the message packet is a group of commands (message) sent from the server to the CPE. It may contain one or several CTSI commands (message).

CTSI Command 1

CTSI Command 2

.....

CTSI Command N

CTSI Command

Composed of command code, length and command argument.

Command Argument

Describes the actual content for command execution (variable length).

Length is the byte count of the command argument. Since the command is encapsulated in the message packet, and the total length of one message packet is less than 254, the length of the command argument is less than 252. When there is no command argument, the length field is 0.

CTSI Command

There are two forms of the CTSI command.

Command Code

0x00

Command Code

Length

Command Argument

Command Code

Identify the command code as listed below.

Command
Code

Subroutine of Command Process Program

Function

0xB0

Query_Server_ID

Service Query

0xB1

Information_Download

Information Download

0xB2

Information_Upload

Information Upload

0xB3

Information_Input

Screen Query

0xB4

Information_Output

Screen Display

0xB5

Security_Set

Security Management

0xB6

Graph_Made

Graphics Production Management

0xB7

Change_Receive_State

Change CPE Receiving State

0xB8

Query_CPE_Config

CPE Configuration Parameter Query

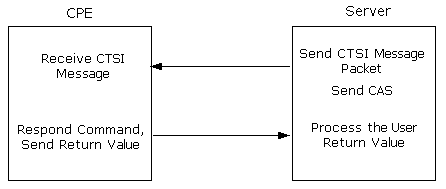

Message Exchange in the Message Layer:

The message exchange between the CPE and server always starts with the server sending a CTSI command. The CPE parses and executes the CTSI command, then it sends the feedback. The CPE does not initially send content to the server. In another words, the service application from CPE is submitted through the server sending a service query command.

Command Return Value

According to the CTSI command, the return value contains the result of the command execution (e.g. download command), or the feedback or user input (e.g. input command), or the CPE configuration parameters (e.g. CPE Configuration Parameter Query command). Not all CTSI commands need a return value (e.g. change CPE receiving state command). The return value is one ASCII code string.

Command Return Value Coding

The command return value coding method is decided according to the CPE type, FSK or DTMF.

FSK Coding

ASCII code of the return value using the regular FSK coding (0x00 ~ 0xFF).

DTMF Coding

There are two DTMF methods, non-encoded and encoded.

Important! DTMF C is reserved to avoid interfering the switch function.

Non-encoded Method

The return value string is proceeded and inspected. If the character belongs to the sent DTMF character set, it will be transmitted using DTMF tone. Otherwise, this character is discarded. The sent DTMF character set is: {0, 1, 2, 3, 4, 5, 6, 7, 8, 9, #, *, A, B, D}

Encoded Method

The return value string is proceeded. Each ASCII character is broken into two hexadecimal values (4 bits each), and sending these two hexadecimal values using the DTMF tone defined in the following table. The higher 4 bits are sent first and the lower 4 bits are sent second. For example, 0xCF generates three DTMF tones: * 1 #.

Hexadecimal Value

DTMF Sequence

0x00

DTMF 0

0x01

DTMF 1

0x02

DTMF 2

0x03

DTMF 3

0x04

DTMF 4

0x05

DTMF 5

0x06

DTMF 6

0x07

DTMF 7

0x08

DTMF 8

0x09

DTMF 9

0x0A

DTMF A

0x0B

DTMF B

0x0C

DTMF *, then DTMF 1

0x0D

DTMF D

0x0E

DTMF *, then DTMF 2

0x0F

DTMF #

CPE Feedback Message

The feedback message is the message reported to the server during the CPE execution of the CTSI command. There are two types to message: Command Parsing and Execution Feedback and CPE User Input.

Command Parsing and Execution Feedback

Not all CTSI commands require the CPE to return the command parsing and execution feedback message. However, some commands (e.g. information download command) need the return of parsing status. If the command code cannot be parsed, the server needs to be notified. Refer to the format below:

Length

1B

Fixed Length

Content

Command Parsing and Execution Feedback Message Flag

Argument

Coding

A

User Data

DTMF Coding

Non-encoded Method

FSK Coding

Direct Coding

Command Parsing and Execution Feedback Message Flag

Argument

Description

A

0

Storage Component Does Not Exist

1

Storage Component Full

2

Personal Account Does Not Exist

3

User Stops Download

4

Others, User Reject

A

Component Download Successful

B

CTSI Command Cannot Be Parsed

CPE User Input Message

According to the command, sometimes the CPE user related information needs to be sent back to the server, e.g., the information upload command, screen query command (refer to the CTSI command description). The return value can be fixed length or variable length. For the return message with variable-length, usually it contains a length field. Refer to the format below:

Return Message Packet with Fixed Length

Length

1B

Fixed Length

Content

CPE User Input Message Flag

Argument

Coding

B

User Data

DTMF Coding

Non-encoded Method

Encoded Method

FSK Coding*

Direct Coding

Return Message Packet with Variable Length

Length

1B

1B

Fixed Length

Content

CPE User Input Message Flag

Length

Argument

Coding

B

0xYY**

User Data

DTMF Coding

Non-encoded Method

Encoded Method

FSK Coding

Direct Coding

* FSK coding: This is for the CPE with uplink FSK capability. For the CPE without uplink FSK capability, it used DTMF.

**YY is the binary form of the user data length.

The DSP SIMM Configure message supports the DSP Series 2 function types 0x35 (Transmit FSK Only) and 0x36 (Transmit and Receive FSK).
