Overview
Early media is the ability of two SIP User Agents to communicate before a SIP call is actually established. Typically, this scenario occurs when the called party is a PSTN gateway. Before the call is set up, the gateway might provide in-band tones or announcements that inform the caller of the call progress.
Early media can involve the transfer of media from caller to callee. Within the PSTN, forward channels can be established to convey DTMF signaling to select a final destination to call. This feature can be used to access Interactive Voice Response (IVR) systems "behind" 800 numbers.
Pertinent Specification
RFC 2543/3261
The SIP implementation:
• connects the media path prior to the 200 OK message.
• supports pre-answer DTMF and announcements.
• converts the SS7 Call Progress (CPG) message to a 183 response message with SDP.
When the called party wishes to send early media to the caller, the called party sends a 183 response to the caller. That response contains the SDP. When the caller receives the 183 response, it suppresses any local alerting of the user (for example, audible ring tones or pop-up window) and plays out media that it receives.
If the call is ultimately rejected, that called party generates a non-2xx final response. When the caller receives this response, the caller stops playing out or sending media. If the call is accepted, the called party generates a 2xx response and sends that to the caller. Media transmission continue as before.
API Messages
See the PPL Event Request message (Event ID 0x001F) which is used to generate early media.
Inbound Call - Initiated by host application

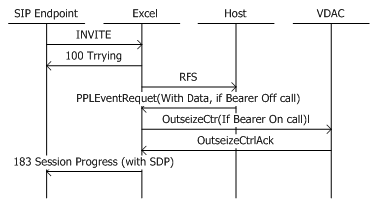

In the following call flow, the host application can use PPL Event Request (event id 31) to initiate early media.
Example: For Bearer On Call:
X->H - 00 11 00 44 00 02 ff 00 01 0d 03 00 00 00 00 a7 00 1f 00
Example: For Bearer Off Call:
X->H
00 3f 00 44 00 06 ff 00 01 0d 03 00 07 01 00 a7 00 1f 01 03
00 33 00 29 00 01 29 ff 00 23 2a 0e 00 04 0a 0a 41 87
2a 01 00 17 2a 03 00 01 00 2a 07 00 04 00 00 15 a0 2a
02 00 06 2a 08 00 02 00 02

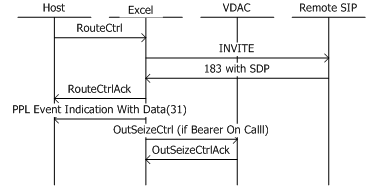

For outbound calls, the CSP detects early media when it receives the 183 response with the Session Description Protocol (SDP) from the host application.
The SIP layer would inform early media detection to host application via PPL Event Indication (Event ID 31) and send the internal Call Progress message.
Example:
X ->H
00 3f 00 43 00 06 ff 00 01 0d 03 00 07 01 00 a7 00 1f 01 03
00 33 00 29 00 01 29 ff 00 23 2a 0e 00 04 0a 0a 41 87
2a 01 00 17 2a 03 00 01 00 2a 07 00 04 00 00 15 a0 2a
02 00 06 2a 08 00 02 00 02
The following is a typical 183 response message:
SIP/2.0 183 Session Progress
To: <sip:4566@10.10.65.20>;tag=414327a01
From: "User id" <sip:36388@10.10.65.20>
Call-ID: c3943000-22807c6-2737ef30-312e3031@10.10.65.137
CSeq: 101 INVITE
Contact: 4566<sip:4566@10.10.65.20:5060>
Via: SIP/2.0/UDP 10.10.65.137:5060
User-Agent: Excel/80.60.133
Content-Type: application/SDP
Content-Length: 143
v=0
o=sip 162471 162471 IN IP4 10.10.65.20
s=SIP_Call
c=IN IP4 10.10.65.101
t=2209151129 0
m=audio 10844 RTP/AVP 0
a=rtpmap:0 PCMU/8000
