Session Description Protocol (SDP) Pass-Through for Call Agent Mode

You are here: CSP Developer’s Guide: Internet Protocol > 6 Call Agent > Session Description Protocol (SDP) Pass-Through for Call Agent Mode

The Call Agent Mode (CAM) turns the CSP into a centralized SIP call controller that allows direct flow between the external end-points.

In CAM, the CSP acts as a SIP Back-to-Back User Agent and is not only a full-fledged SIP signaling end-point (User Agent) but also a Session Description Protocol (SDP) signaling endpoint. The CSP originates and terminates SIP and SDP signaling and establishes independent signaling sessions with external endpoints.

In order to facilitate direct media flow between the external endpoints, the CSP interworks essential inbound SDP parameters into NPDI TLVs to carry this information to the host application. The reverse process occurs for outbound SDP parameters.

Prior to this release, the SDP processing in the CSP could handle only audio media sessions. With this release, the SIP stack is extended to provide more transparency when media capabilities are negotiated between endpoints.

This transparency comes by tunneling an essential portion of raw SDP text between the external endpoints. This approach is flexible because it allows any non-audio media session (not just T.38 fax) to get setup across the CSP. In addition, the endpoint’s media capabilities can evolve without affecting the CSP.

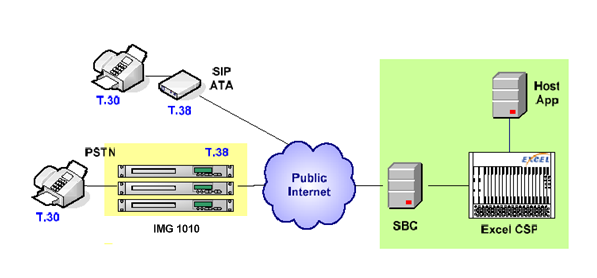

Figure Network Architecture below shows a network architecture where the external points want to establish a T.38 fax session with each other. A fax call is typically started as an audio session and then switches to T.38 once the IMG or SIP ATA detects the preamble tone. The T.38 parameters are represented in the SDP and conveyed mid-session through the SIP RE-INVITE mechanism.

This feature pertains to only non-audio DSP parameters in the
RE-INVITE messages. This feature does not affect the processing of audio SDP parameters and the SDP/NPDI interworking for audio media streams.

The set of essential SDP parameters is the tunneled portion of the raw SDP text. It is demarcated based on the m=lines in the SDP.

The SDP parameters in CAM are structured and communicated as nested NPDI TLVs within the NPDI ICB (0x0033) in the EXS API messages.

There is a TLV, SDP Media Stream Native Text (0x2A17) added within this structure. It will carry the raw SDP text internally in the CSP and between the CSP and the host. Refer to the following for the formats.

An API message can carry up to 1K bytes. Based on this restriction only one media stream worth of information will be tunneled through. For a media stream to be tunneled through, it has to be a non-audio media stream.

Audio and non-audio media streams cannot be present in the SDP at the same time.

This feature is disabled by default. To enable it, set Bit 17, in the SIP Message Information Mask (0x027F) TLV sent in the VoIP Protocol Configure (0x00EE) message.

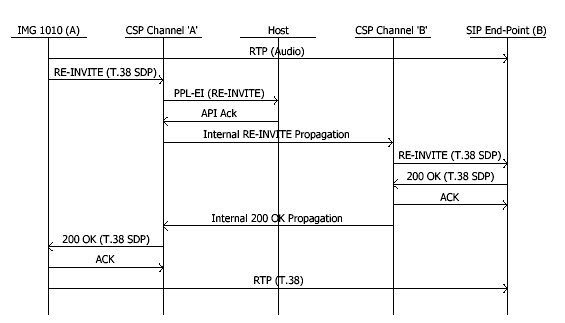

The figure below shows just the portion of a call flow that is relevant to this feature. The steps are described below the call flow.

1. The call flow assumes that an audio session is in place when the terminating gateway (in this example, the IMG 1010 ‘A’) detects the Fax preamble tone. The gateway initiates a RE-INVITE message with an SDP describing its T.38 parameters.

2. The CSP fields this RE-INVITE message on the User Agent session that is already in place with this endpoint.

3. The CSP extracts the raw text including the m=line and lines up to the next m=line or the end of the SDP and pushes it to the host application in a PPL Event Indication message.

4. At the same time the CSP internally propagates the RE-INVITE (send by channel A) and sends a RE-INVITE message (with the raw SDP portion reproduced) to the other endpoint.

5. The SIP endpoint B accepts the inbound T.38 SDP offer and responds with an outbound T.38 SDP answer. The 200 OK internally propagates through the signaling and call processing layers in the CSP and is delivered to IMG 1010 ‘A’.

As noted in a previous section, a media stream is demarcated based on the m=lines in the SDP. A media stream starts at an m=line and ends at the next m=line, which marks the beginning of the next media stream.

For instance, the underlined portion of text in the message trace below is tunneled through.

The SDP Native Media Stream TLV (0x2A17) is contained inside the nested NPDI TLV structure used in the Call Agent Mode to propagate SDP information from one endpoint to another.

This TLV is analogous to an "audio" media stream. The only difference being the CSP SDP stack parses the audio media stream and interworks those parameters into NPDI TLVs and sends that processes information to the host.

This TLV carries information that is similar in semantics but different in syntax because it carries raw SDP text.

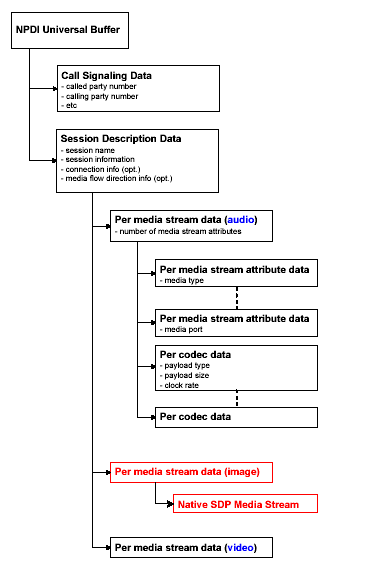

The nested NPDI structure treats a media stream regardless of its type (for example, audio, video, image, whiteboard, application, data) therefore the DSP Native Media Stream TLV is contained inside the NPDI Per-Media Stream TLV (0x2A01).

The following message trace shows a SIP RE-INVITE message with T.38 fax parameters and the corresponding PPL Event Indication message from the CSP to the host.
