Overview
This section shows sample EXNET® configurations. These samples illustrate how to connect the fiber optic cables in various multi-node systems.

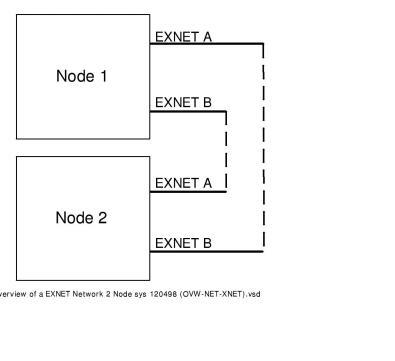

Two-Node Configuration shows a two-node configuration.
Figure 5-6 Two-Node Configuration

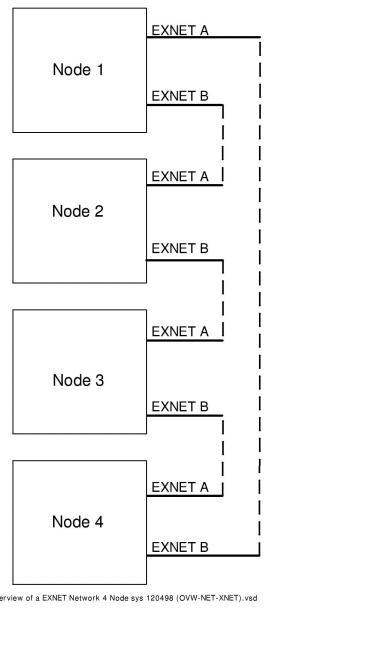

Four-Node Configuration shows a four-node configuration
Figure 5-7 Four-Node Configuration
