Host Generated Refer Message

The SIP REFER message requests that the recipient contact a third party using the contact information in the request message. Prior to this feature, the CSP supported inbound REFER requests. With this release, the CSP now supports outbound REFER requests.

The CSP generates the outbound REFER message only when the host application triggers it.

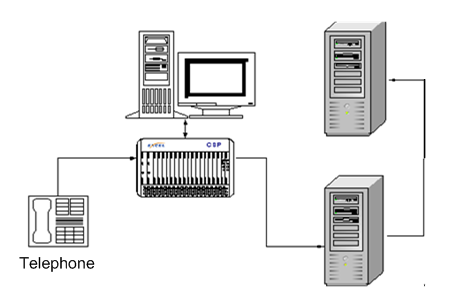

The Recipient contacts third party below shows the recipient contacting a third party after receiving the SIP REFER message from the CSP.

The SIP software allows the CSP to generate an outbound REFER request when the host application sends a PPL Event Request (0x0044) message with Event 0x0027 to the SIP UA component (0x00A7).

The PPL Event Request must contain the target’s URL in the following TLV which fills in Refer-To-Header field for the outbound request.

• The existing SIP Response Code TLV (0x2915) is now supported in PPL Event Indications.

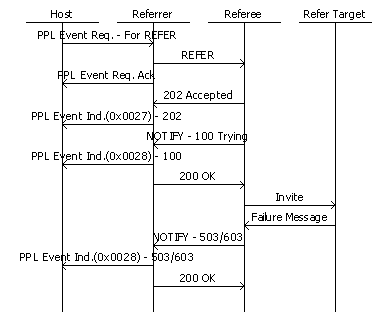

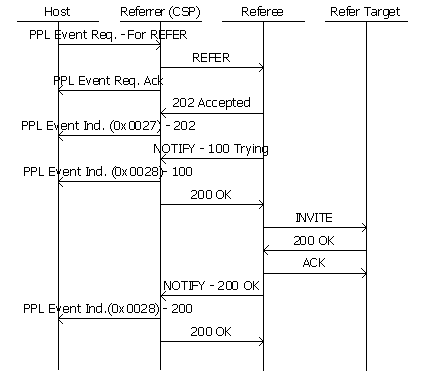

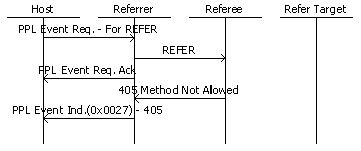

The following call flows show one successful host application generated REFER message and three unsuccessful scenarios. The explanation below the call flows explain each scenario. In all the four call flows, the Referrer and Referee are in the answered state.

The following steps provide an overall explanation of the different call flow scenarios above.

1. The PPL Event Request message must have the Refer Target’s address (SIP endpoint) in the following TLVs:

2. The CSP validates the data in the PPL Event Request message. If the validation is successful, a REFER request is constructed by the CSP and sent to the other end. The PPL Event Request message is ACKed by the CSP when the message is successfully sent from the referrer side.

3. The destination SIP UA (Referee) is supposed to send out a response when it receives the REFER request. If the REFER is accepted by the Referee, Referee responds with 202 response.

For failures any appropriate 4xx-6xx class response is sent (In case the referee cannot accept the REFER, the referee responds with any appropriate 4xx-6xx status). When a response is received the referrer sends out a PPL Event Indication (0x0027) message with SIP Response Code TLV (0x2915) having the received response code (as shown in Generated REFER Message Successful, Generated REFER Message Failure Scenario 2, and Reference Failure Scenario).

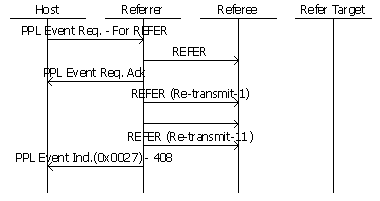

4. If the referee does not respond to the REFER request within 500 milliseconds (default value), the message is re-transmitted 11 times. If there are no responses even after 11 retries the referrer sends out a PPL Event Indication (0x0027) message with SIP Response Code TLV (0x2915) with response code 408-Request Timed out (as shown in Generated REFER Message Failure Scenario 1).

5. The host application has to interpret the SIP Response Code TLV (0x2915) data in PPL Event Indication 0x0027 as follows:

Response Values (TLV Data)	Status of REFER
202 (Accepted)	Success
408 (Request Timed Out)	Timed out
4xx-6xx	Failure

6. If the Referee (destination end-point) has accepted the REFER request, the Referee tries to contact the address in the Refer-To field. The status of this reference is passed on to the Referrer using the NOTIFY messages with the status in the body of the NOTIFY message. The Referrer receives the notification and informs the host application about the status of the reference using the PPL Event Indication 0x0028 - until the Refer-Notify subscription is terminated.

7. This PPL Indication message has the SIP Response Code TLV (0x2915), whose data part indicates the SIP response value (for example100 Trying, 200 OK, 603 Decline) received in the body of the Notify message. The host application has to interpret the SIP Response Code TLV (0x2915) data in PPL Event Indication message (0x0028) as follows:
