NPDI Data Model

Overview

The Call Agent feature uses an NPDI data model that is structured to represent a multimedia call scenario. This call scenario has a single calling session and multiple underlying media sessions for carrying audio, video, and application data media streams. Each media stream is described by an "m=" line in the Session Description Protocol (SDP).

SIP is the signaling protocol used in the example but other IP signaling protocols could be used in the future.

Hierarchical Model

The NPDI data model is hierarchical. It can have multiple levels of media streams in a call, and multiple codecs within a media stream. You can have a maximum of four media streams and eight codecs per media stream.

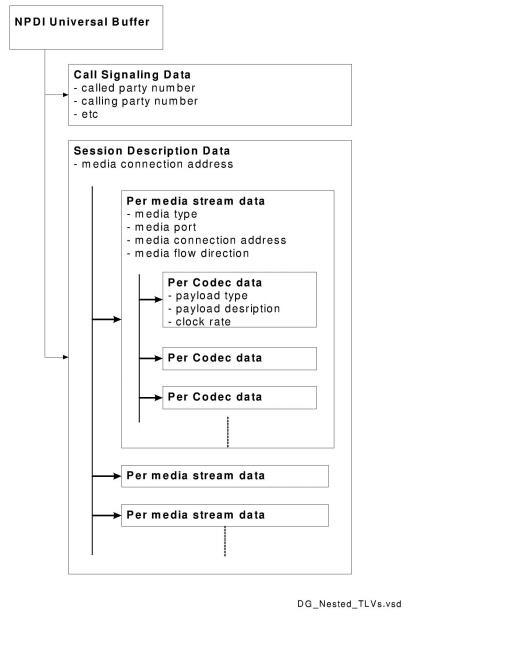

The following figure shows the NPDI data model with its flat call session data and nested media description data.

This figure shows how the data must be nested in TLVs. For example, the Per Media Stream Data and Per Codec Data must be nested as indicated in the figure.

Figure 5-2 NPDI Data Model

Call Setup

During the call setup, the originating SIP end point typically puts out a set of media sessions, each with a set of codec capabilities. In addition, each codec within a media stream can have its own attributes such as payload type and size. When setting up a call, the SIP software on the CSP consolidates media session parameters into two Session Description Data TLVs.

Media Local End Point TLV (0x29FF)

Media Remote End Point TLV (0x2A00)

Other TLVs containing additional information are nested below these two TLVs. Refer to the following TLVs in the Tag Length Value chapter of the API Reference:

0x2954 SIP Request URI User Name

0x2A00 Media Remote End Point Information

0x2A01 Media Per Stream Information

0x2A02 Media Per Codec Information

0x2A03 Media Type

0x2A07 Media Port

0x2A08 Media Payload Type

0x2A09 Media Payload Description

0x2A0A Media Payload Size

0x2A0B Media Clock Rate

0x2A0E Media Connection Address

0x2A13 Media Flow Direction

The SIP end points negotiate media parameters to set up the call based on their respective capabilities. For example, one SIP phone might accommodate audio, video and fax, while another might accommodate audio, fax, and SMS (Instant Messaging). When a call is made between the two, they can exchange audio and fax, but not video or SMS streams.

In this example, two SIP endpoints negotiate to set up streams for audio and fax, but ignore video and SMS. Because each stream’s codecs are nested within a high-level TLV, the TLVs for the streams not being used can be ignored by the host application.

TLV Placement

This data model does not place any restrictions on the placement and positioning of individual TLVs between call signaling and media description areas. The TLVs can be placed between two areas based on the call scenario and data available on the signaling front.



NPDI Local and Remote Media Parameters

As described above, the SIP software on the CSP consolidates media session parameters into a Session Description Data TLV when setting up a call.

For bearer-free calls, the end point’s Session Description Data is considered local or remote, depending on the span/channel that the call is on. (Note: This concept does not apply to bearer calls.)

When the call comes into the CSP, a Request for Service message with span/channel information is sent to the host application and this side of the call is considered local. The other end point is considered remote.

See the Call Flow for more information on the local and remote sides.

Call Flow

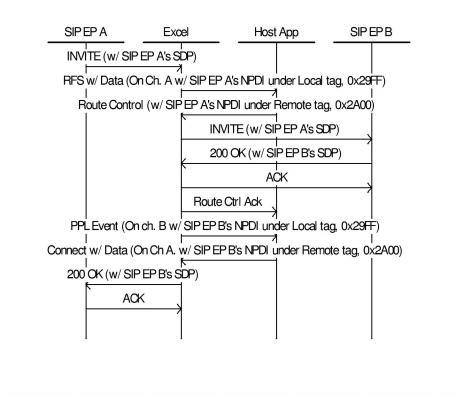

The call flow below details each step of the call setup for a bearer-free call.

Important! When an end point causes the CSP to send an API message to the host application that end point as well as the associated span/channel is considered the local side. (In the call flow above, these messages are the Request for Service with Data and PPL Event Indication messages.)

An incoming call manifests a Request for Service with Data message that from the CSP to the host that contains the NPDI Media Local End Point TLV (0x29FF) in the Session Description Data of the local side (channel A) of the call.

In order to switch the call to the egress side, the host delivers a Route Control message to the CSP. Apart from signaling the egress call, the Route Control message conveys channel A’s media parameters to channel B. In order to indicate to channel B that the media parameters contained in the Route Control message belong to channel A, the host application copies over the NPDI Media Local End Point TLV (0x29FF) from the Request for Service with Data message to the NPDI Media Remote End Point TLV (0x2A00).





Conversely, the host application assigns the Media Remote End Point TLV (0x2A00) to the Session Description Data of the remote side (channel B) of the call. This happens in the Route Control message that the host sends to the CSP.

At this point, channel B knows about the channel A media parameters but channel A does not know about the channel B media parameters. Upon receipt of the media parameters over signaling, the channel B side sends its media parameters to the host in the PPL Event Indication message. The host application copies the contents of the PPL Event Indication (TLV 0x29FF) into the Connect with Data message (TLV 0x2A00) and sends it to the CSP. Evidently both channel A and channel B are now aware of each other’s media parameters, as required for media communication to begin.

Message Trace

The following is a sample message trace for this process.

X->H

[00 e7 00 2d 00 17 ff 00 01 0d 03 00 07 13 00 33 01 03 00 33

00 d3 00 0b 27 4e 00 02 00 05 27 7e 00 03 08 00 00 29

19 00 05 31 32 33 34 00 29 1b 00 0d 31 30 2e 31 30 2e

31 30 30 2e 31 30 00 29 23 00 05 34 34 34 34 00 29 25

00 0d 31 30 2e 31 30 2e 31 30 30 2e 31 30 00 29 2d 00

05 34 34 34 34 00 29 2f 00 0d 31 30 2e 31 30 2e 31 30

30 2e 34 30 00 27 18 00 07 02 00 00 00 04 44 44 27 17

00 05 02 00 04 12 34 29 ff 00 5e 2a 0e 00 04 0a 0a 64

28 2a 01 00 52 2a 03 00 01 00 2a 07 00 04 00 00 22 3e

2a 02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00

04 00 00 1f 40 2a 02 00 13 2a 08 00 02 01 60 2a 09 00

01 32 2a 0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02

00 01 2a 09 00 01 01 2a 0b 00 04 00 00 1f 40]



H->X

[00 0c 00 2d 00 17 ff 00 01 0d 03 00 07 13]



H->X

[00 ac 00 e8 00 01 ff 00 01 29 02 ff fe 02 03 00 1e 00

19 00 04 00 13 00 02 00 08 00 08 00 02 00 71 00 0f 00

01 0b 00 71 00 02 00 00 03 00 33 00 7d 00 04 27 7e 00

03 08 01 00 29 23 00 05 34 34 34 34 00 29 19 00 05 31

32 33 34 00 2a 00 00 5e 2a 0e 00 04 0a 0a 64 28 2a 01

00 52 2a 03 00 01 00 2a 07 00 04 00 00 22 3e 2a 02 00

13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04 00 00

1f 40 2a 02 00 13 2a 08 00 02 01 60 2a 09 00 01 32 2a

0b 00 04 00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a

09 00 01 01 2a 0b 00 04 00 00 1f 40]



X->H

[00 14 00 e8 00 01 ff 00 10 01 02 1e 09 00 01 00 39 00 03 00 07 14]



H->X

[00 11 00 bf 00 01 ff 00 02 0d 03 00 07 13 0d 03 00 07

13]



X->H

[00 07 00 bf 00 01 ff 00 10]



X->H

[00 63 00 43 00 03 ff 00 01 0d 03 00 07 14 00 a7 00 20 01 03

00 33 00 4d 00 01 29 ff 00 47 2a 0e 00 04 0a 0a 64 05

2a 01 00 3b 2a 03 00 01 00 2a 07 00 04 00 00 8e 30 2a

02 00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04

00 00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01

01 2a 0b 00 04 00 00 1f 40]



H->X

[00 05 00 43 00 03 ff]



H->X

[00 72 00 05 00 01 ff 00 02 0d 03 00 07 13 0d 03 00 07

14 01 02 03 00 1e 00 08 00 01 01 16 00 02 00 01 03 00

33 00 4d 00 01 2a 00 00 47 2a 0e 00 04 0a 0a 64 05 2a

01 00 3b 2a 03 00 01 00 2a 07 00 04 00 00 8e 30 2a 02

00 13 2a 08 00 02 00 02 2a 09 00 01 02 2a 0b 00 04 00

00 1f 40 2a 02 00 13 2a 08 00 02 00 01 2a 09 00 01 01

2a 0b 00 04 00 00 1f 40]



X->H

[00 07 00 05 00 01 ff 00 10]







1 -RECEIVED From 10.10.100.40:1028 at 2588

INVITE sip:1234@10.10.100.10 SIP/2.0

From: sip:4444@10.10.100.10;tag=1c29051

To: sip:1234@10.10.100.10

Call-Id: call-973574993-5@10.10.100.40

Cseq: 1 INVITE

Contact: sip:4444@10.10.100.40

Content-Type: application/sdp

Content-Length: 197

Accept-Language: en

Allow: INVITE, ACK, CANCEL, BYE, REFER, OPTIONS, NOTIFY, REGISTER, SUBSCRIBE

Supported: sip-cc, sip-cc-01, timer

User-Agent: Pingtel/1.2.6 (VxWorks)

Via: SIP/2.0/UDP 10.10.100.40



v=0

o=Pingtel 5 5 IN IP4 10.10.100.40

s=phone-call

c=IN IP4 10.10.100.40

t=0 0

m=audio 8766 RTP/AVP 0 96 8

a=rtpmap:0 pcmu/8000/1

a=rtpmap:96 telephone-event/8000/1

a=rtpmap:8 pcma/8000/1



2 -SENT To 10.10.100.40:5060 at 2588

SIP/2.0 100 Trying

To: sip:1234@10.10.100.10;tag=4206a1c

From: sip:4444@10.10.100.10;tag=1c29051

Call-ID: call-973574993-5@10.10.100.40

CSeq: 1 INVITE

Contact: 1234<sip:1234@10.10.100.10:5060>

Via: SIP/2.0/UDP 10.10.100.40

User-Agent: Excel/82.0.66

Content-Length: 0





3 -SENT To 10.10.100.5:8982 at 2589

INVITE sip:10.10.100.5:8982 SIP/2.0

Via: SIP/2.0/UDP 10.10.100.10

To: 1234<sip:1234@10.10.100.5:8982>

From: 4444<sip:4444@10.10.100.10:5060>;tag=41165572a1d

Call-ID: Excel-CSP255.1014.2589.0@10.10.100.10

Contact: 4444<sip:4444@10.10.100.10:5060>

User-Agent: Excel/82.0.66

Supported: timer

Session-Expires: 1800

Min-SE: 300

CSeq: 1 INVITE

Content-Type: application/sdp

Content-Length: 202



v=0

o=sip 946687389 946687389 IN IP4 10.10.100.10

s=SIP_Call

c=IN IP4 10.10.100.40

t=0 0

m=audio 8766 RTP/AVP 0 96 8

a=rtpmap:0 PCMU/8000

a=rtpmap:96 telephone-event/8000

a=rtpmap:8 PCMA/8000



4 -RECEIVED From 10.10.100.5:1298 at 2589

SIP/2.0 100 Trying

Via: SIP/2.0/UDP 10.10.100.10

From: 4444<sip:4444@10.10.100.10:5060>;tag=41165572a1d

To: 1234<sip:1234@10.10.100.5:8982>;tag=08ca52fc-4b12-4f11-a101-55fbc433e3b1

Call-ID: Excel-CSP255.1014.2589.0@10.10.100.10

CSeq: 1 INVITE

User-Agent: Windows RTC/1.0

Content-Length: 0





5 -RECEIVED From 10.10.100.5:1298 at 2589

SIP/2.0 180 Ringing

Via: SIP/2.0/UDP 10.10.100.10

From: 4444<sip:4444@10.10.100.10:5060>;tag=41165572a1d

To: 1234<sip:1234@10.10.100.5:8982>;tag=08ca52fc-4b12-4f11-a101-55fbc433e3b1

Call-ID: EXCEL-CSP255.1014.2589.0@10.10.100.10

CSeq: 1 INVITE

User-Agent: Windows RTC/1.0

Content-Length: 0





6 -SENT To 10.10.100.40:5060 at 2589

SIP/2.0 180 Ringing

To: sip:1234@10.10.100.10;tag=4206a1c

From: sip:4444@10.10.100.10;tag=1c29051

Call-ID: call-973574993-5@10.10.100.40

CSeq: 1 INVITE

Contact: 1234<sip:1234@10.10.100.10:5060>

Via: SIP/2.0/UDP 10.10.100.40

User-Agent: Excel/82.0.66

Content-Length: 0





7 -RECEIVED From 10.10.100.5:1298 at 2592

SIP/2.0 200 OK

Via: SIP/2.0/UDP 10.10.100.10

From: 4444<sip:4444@10.10.100.10:5060>;tag=41165572a1d

To: 1234<sip:1234@10.10.100.5:8982>;tag=08ca52fc-4b12-4f11-a101-55fbc433e3b1

Call-ID: EXCEL-CSP255.1014.2589.0@10.10.100.10

CSeq: 1 INVITE

Contact: <sip:10.10.100.5:8982>

User-Agent: Windows RTC/1.0

Content-Type: application/sdp

Content-Length: 159



v=0

o=vrao 0 0 IN IP4 10.10.100.5

s=SIP_Call

c=IN IP4 10.10.100.5

b=CT:1000

t=0 0

m=audio 36400 RTP/AVP 0 8

a=rtpmap:0 PCMU/8000

a=rtpmap:8 PCMA/8000



8 -SENT To 10.10.100.5:8982 at 2592

ACK sip:10.10.100.5:8982 SIP/2.0

Via: SIP/2.0/UDP 10.10.100.10

To: 1234<sip:1234@10.10.100.5:8982>;tag=08ca52fc-4b12-4f11-a101-55fbc433e3b1

From: 4444<sip:4444@10.10.100.10:5060>;tag=41165572a1d

Call-ID: EXCEL-CSP255.1014.2589.0@10.10.100.10

CSeq: 1 ACK

Content-Length: 0





9 -SENT To 10.10.100.40:5060 at 2593

SIP/2.0 200 OK

To: sip:1234@10.10.100.10;tag=4206a1c

From: sip:4444@10.10.100.10;tag=1c29051

Call-ID: call-973574993-5@10.10.100.40

CSeq: 1 INVITE

Contact: 1234<sip:1234@10.10.100.10:5060>

Require: timer

Supported: timer

Session-Expires: 1800; refresher=uas

Via: SIP/2.0/UDP 10.10.100.40

User-Agent: Excel/82.0.66

Content-Type: application/sdp

Content-Length: 165



v=0

o=sip 946687393 946687393 IN IP4 10.10.100.10

s=SIP_Call

c=IN IP4 10.10.100.5

t=0 0

m=audio 36400 RTP/AVP 0 8

a=rtpmap:0 PCMU/8000

a=rtpmap:8 PCMA/8000



10-RECEIVED From 10.10.100.40:1028 at 2593

ACK sip:1234@10.10.100.10:5060 SIP/2.0

Contact: sip:4444@10.10.100.40

From: sip:4444@10.10.100.10;tag=1c29051

To: sip:1234@10.10.100.10;tag=4206a1c

Call-Id: call-973574993-5@10.10.100.40

Cseq: 1 ACK

Session-Expires: 1800

Accept-Language: en

User-Agent: Pingtel/1.2.6 (VxWorks)

Via: SIP/2.0/UDP 10.10.100.40

Content-Length: 0
