Dimensions

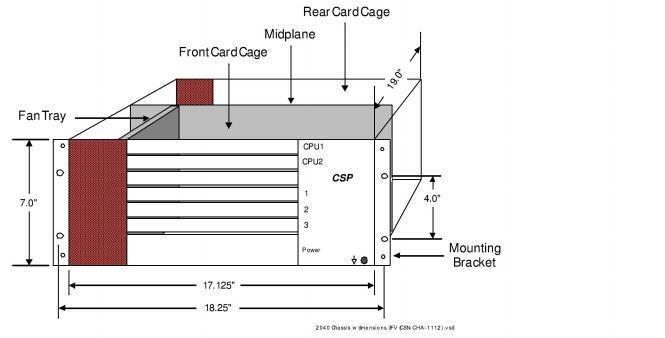

The next figure shows a diagram of the CSP 2040 chassis with dimensions.
Figure 1-1 Chassis Diagram

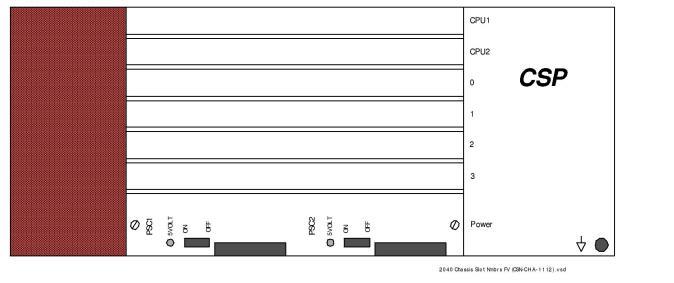

The next figure shows the front of the CSP 2040 chassis.
Figure 1-2 Front of Chassis

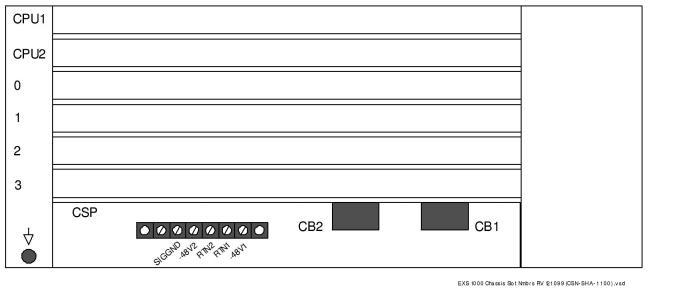

Rear of Chassis shows the rear of the CSP 2040 chassis.
