Chassis Views

Dimensions

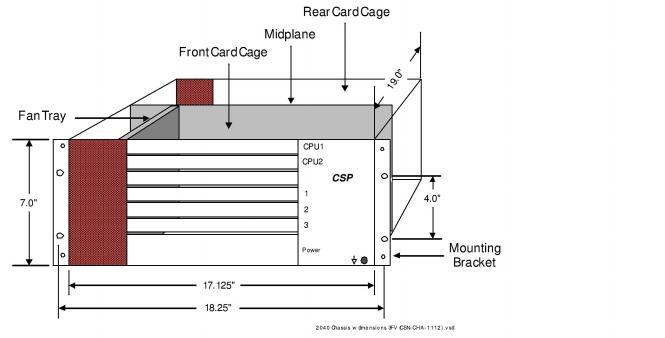

The next figure shows a diagram of the CSP 2040 chassis with dimensions.

Figure 1-1 Chassis Diagram

Front of Chassis

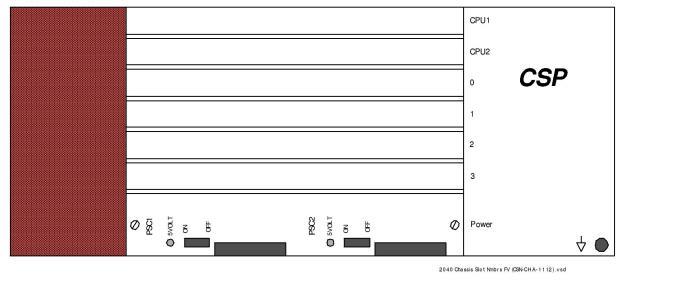

The next figure shows the front of the CSP 2040 chassis.

Figure 1-2 Front of Chassis

Rear of Chassis

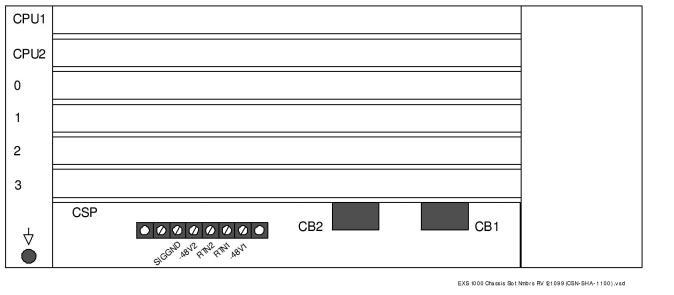

Rear of Chassis shows the rear of the CSP 2040 chassis.

Figure 1-3 Rear of Chassis
