SwitchKit TCAP API Architecture

The SwitchKit TCAP application resides on the host and communicates over TCP/IP with the CSP. SwitchKit TCAP application components include the following:

• SwitchKit Interface Module (SKIM) TCAP API

• SwitchKit TCAP Abstraction Layer (SKTAL)

• SwitchKit API library

SKIM API

Application developers can use the SwitchKit Interface Module (SKIM) to speed up development. SKIM provides an API to abstract services from the TCAP and SCCP layers to a transaction-based application. The SKIM API abstracts details of the SS7 TCAP protocol. The SKIM provides some error handling, abstracting TCAP from the error handling. The SKIM must keep track of active dialogues, invoke IDs, operation types, and operation codes.

SKTAL API

The SwitchKit TCAP Abstraction Layer ( is used to create a generic view of the TCAP layer, so that the underlying stack can be used with the TCAP C++ API. The SKTAL API allows the SwitchKit TCAP user to easily interface with Intelligent Network (IN) application layer protocol APIs (GSM-MAP, ANSI-41, WIN, and CAMEL) provided by IntelliNet Technologies Inc.

SwitchKit API Library

The Switchkit API is a library of function calls used to communicate to both the LLC and the CSP. In SKIM and SKTAL Architecture both the TCAP Abstraction Layer and the application must communicate with the SwitchKit API. Although the CSP can be used as a signaling-only platform, its strength is in using it for IN and ISUP signaling and for media resources. An application must communicate with the SwitchKit API in order to handle ISUP traffic and to control DSP resources in the CSP.

Important! The SwitchKit environment variable, SK_DIALOGUE_MONITOR, is mandatory for TCAP applications.

SK_DIALOGUE_MONITOR

SK_DIALOGUE_MONITOR is used to activate the LLC's dialogue monitor.

Defaults file variable name:

dialogue_monitor

Valid Values

SK_DIALOGUE_MONITOR=0

– -disables the LLC’s dialogue monitor (default)

SK_DIALOGUE_MONITOR=1

– - enables the LLC’s dialogue monitor

See LLC: Application Load Balancing for TCAP (7-18) for more information on how to use the LLC’s dialogue monitoring capabilities.

Key Features of SwitchKit TCAP APIs

SwitchKit TCAP API provides a simple C++ interface to EXS TCAP. SwitchKit TCAP APIs hide details of PPL messages from the user application.

• SwitchKit TCAP API allows the user application to communicate with multiple stack instances.

• SwitchKit TCAP API provides message sanity checking and error handling at the host.

• SwitchKit TCAP API enables user applications to easily integrate with IntelliNet's user part APIs such as GSM-MAP, CAMEL, WIN, ANSI-41, AIN, and INAP.

• The SwitchKit TCAP API provides interface functions that take ASN.1 encoded information from IntelliNet user part APIs for populating TCAP operation parameters. TCAP operation parameters received using SwitchKit TCAP API can be decoded using user part APIs.

Diagram

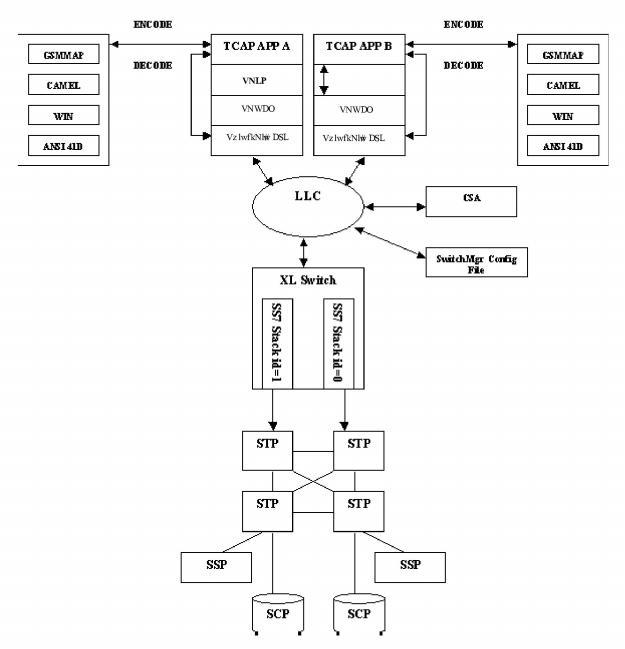

Figure 1-1 SKIM and SKTAL Architecture
