OAM Supervisor table

The OAM Supervisor table contains:

A table of Supervisor keywords, values, and qualifiers.
Values that allow you to start or stop the Supervisor process, set up event masks, register for the OAM API alert events, and create board instances in the database.

The objects in the OAM Supervisor table (oamSupervisor) are:

Object	Description
oamStartStop	Starts or stops the NMS OAM Supervisor process or indicates its status.
oamEventMask	Sets the NMS OAM event mask or indicates its status.
oamAlertRegister	Registers for OAM API alert notification or indicates the status of the registration.
supervisorTable	Supervisor Keyword table. Contains NMS OAM Supervisor keywords, values, and qualifiers.
oamCreateBoard	Create Board table. Contains values that enable you to create board instances in the database.

The objects in the Supervisor Keyword table (supervisorTable) are:

Object	Description
supervisorTable	Top of the table.
supervisorEntry	Beginning of a row of the Supervisor Keyword table.
supervisorIndex	Unique index (within this table) identifying the keyword.
keywordName	Keyword name, formatted as described in OAM Database MIB tables and keywords.
kwValue	Value of the keyword.
kwType	Type of the keyword: integer, string, or object.
kwMode	1 indicates keyword value is read-only. 2 indicates keyword value is read/write.
kwAllowedRange	Range of allowable values for the keyword, formatted as described in OAM Database MIB tables and keywords.
kwDescription	Short description of the keyword.

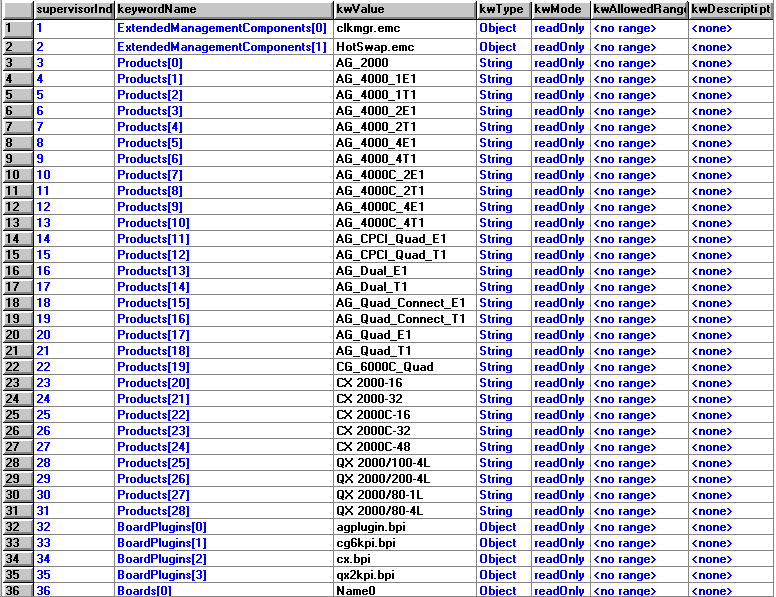

The following illustration shows sample HPOpenView output displaying the contents of the Supervisor Keyword table:

The objects in the Create Board table (oamCreateBoard) are:

Object	Description
productName	Product type of the board to create. All product names supported by NMS OAM can be found in the Supervisor keyword Products[x]. To learn how to access this keyword in the MIB, see Accessing board, plug-in, and EMC keywords.
boardName	Name to give the created board.
boardNumber	Board number to give the created board.
applyBoardCommand	Set this value to 1 to create the board based upon the productName, boardName, and boardNumber values you specified.
