Configuration

Purpose

This section describes how to bring an CSP into service. It assumes that all hardware configuration and cabling is complete, that all CSP nodes are powered-up, and that a communication link exists between the host and nodes.

Before you begin to configure an CSP, map out your configuration plan clearly, and record information on each node. See the Hardware Installation and Maintenance Guide for more information.

Important! Perform all configuration first, before bringing the system into service.

You must use the same API format (Basic or Extended) on all nodes on a single EXNET ring.

The following steps detail the procedure for configuring your CSP as shown in the table above.

1. Download System Software

When an IP socket is opened to a node, the host begins to receive Poll messages indicating that the node requires a system software load. The Node ID field is 0xFF, indicating that a node ID has not yet been assigned. Download the system software to each node individually, following the procedure detailed in Application Development chapter.

Downloading the system software purges all local and distributed traffic. After the system software is downloaded, you must reconfigure all nodes and all EXNET rings. The host must verify that each node has received the new software load.

2. Re-establish Socket Connections

After each Matrix Controller resets, you must re-establish each Matrix Controller card’s socket connection. Each node then sends Poll and Node Status Report messages, indicating that the node requires a Logical Node ID, which you must assign. The Node Status Report message is sent only if a node is an CSP node. The software determines that a node is an CSP node by the presence of an EXNET-ONE card. So you must install the EXNET-ONE card before you power up the CSP. The CSP continues sending Node Status Report messages, about every five seconds, until a Logical Node ID is assigned.

3. Assign a Logical Node ID

Assign a Logical Node ID (0-63) to each node, using the Assign Logical Node ID message. All nodes on the same Ethernet segment must have a unique Logical Node ID and there must be one Logical Node ID for each Physical Node ID. If a node ID is already assigned, the Assign Logical Node ID message receives a negative acknowledgment (NACK).

Important! The Logical Node ID must be in the range of (0x00–0x3F).

The first node to be assigned a Logical Node ID becomes the master node of the EXNET ring, and it obtains transmit bandwidth on the ring. As subsequent nodes are assigned Logical Node IDs, they also obtain bandwidth on the ring.

If a message to a node is addressed with an incorrect Logical Node ID, the CSP responds with a status of "Invalid Logical Node ID." The Logical Node ID field in the header of the response indicates the correct Logical Node ID.

4. Configuring a Node

You can now configure each node the same way that you configure a stand-alone CSP, with the following considerations that are specific to the multi-node CSP:

Logical Span IDs

Logical Span IDs must be unique across all nodes in an CSP. If a duplicate ID is assigned, a response status of Logical Span ID Already Assigned is returned to the host. Each node keeps a record of every other node’s Logical Span ID.

Service Resources

ISDN PRI, DASS2, and SS7 PQ card resources are available and addressed to ports that reside in the same node as those cards. However, you can use a DSP resource on a single node for conference connections among multiple nodes. Other DSP resources can be used locally only. Please refer to DSP Resource Specifications for more information.

5. Configuring the Ring

Use the EXNET Ring Configure message to perform the following tasks on each node:

1. Assign a Logical Ring ID.

2. Configure four packets to be transmitted.

3. Configure Ring Timing (See Expanding the EXNET Ring for more information).

4. Configure the Transmit/Receive mode of each ring on a node to Transmit and Receive. If you have a multi-ring configuration, please contact Cantata Technical Support for assistance.

5. Configure CSP Conferencing, if required.

The following examples show a T1 configuration with four nodes and a redundant EXNET ring. The EXNET-ONE for Ring 1 is in Slot 5 and the EXNET-ONE for Ring 2 is in Slot 6.

Assign Logical Ring ID

You must send an EXNET Ring Configure message to the
EXNET-ONE card attached to each ring. You must assign the same Logical Ring ID to all EXNET-ONE cards on that ring.

The sequence of messages shown in Assign Logical Ring ID is sent to assign Logical Ring ID 1 to the four nodes on the ring.

Figure 10-1 Assign Logical Ring ID

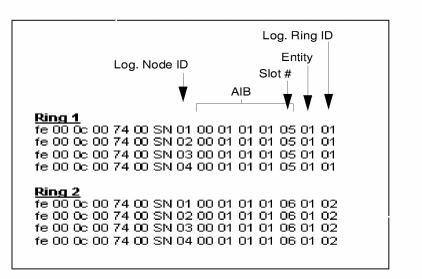

The following example shows details of the first message from the sequence below.

Configuration

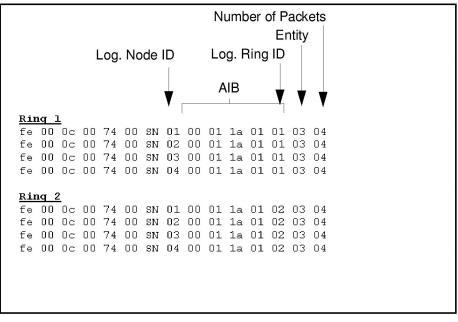

The sequence shown in Configure Number of Packets configures a node to transmit four packets.

Figure 10-2 Configure Number of Packets

Table 10-1 Message Example

Configure Transmit/Receive Mode

Configure the Transmit/Receive mode of each ring on a node to Transmit and Receive. If you have a multi-ring configuration, please contact Cantata Technical Support for assistance.

Important! Before you change the Transmit/Receive mode, you must set the number of packets transmitted.

The sequence shown below configures all nodes in the system for Transmit/Receive mode.

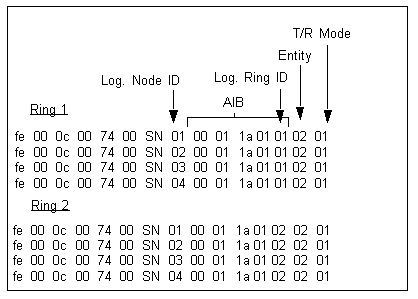

Figure 10-3 EXNET Ring Configure - Configure Transmit and Receive Mode

The following example of the EXNET Ring Configure message shows the first message from the sequence:

6. Bring the Ring In Service

After you finish all CSP configuration, bring the ring in service, using the Service State Configure message. You must send this message to only one node of all the nodes on a given EXNET ring.

Each node informs all of the other nodes of its Logical Node ID. Each node stores this information for API messaging and PCM data routing. The messaging among nodes during ring setup is performed over the same Ethernet link as the host-to-nodes communication link.

When all nodes are assigned and established on the ring, the ring begins a sequence to come in service. The host receives Ring Status Report messages as the ring transitions through states of Connected, Initializing, and In Service.

If the ring fails, it is taken out of service automatically. Until the ring is brought back in service, no connections can be made among nodes.

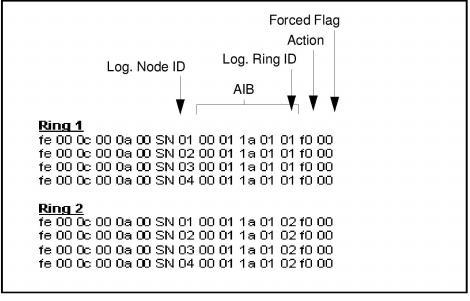

Example: The sequence shown in Service State Configure - Bring Rings In Service brings Ring 1 and Ring 2 in service.

You should receive a sequence of Ring Status Report messages from each node, indicating that the ring is initializing, connected, and in service and that the EXNET ports are in Normal node. The Signal Detect and Fault Detect LEDs on the EXNET-ONE cards should be green.

Figure 10-4 Service State Configure - Bring Rings In Service
